Home > Products > BTS Passive Components > dummy load 5 w n female connector
dummy load 5 w n female connector
USD $4.85 - $9.8
/ Piece
30 Pieces(Min.Order)
- Shanghai
- T/T Credit Card
You May Like
-
4 Way Power Splitter 800-2500MHz N Female Connector
-
3 Way Power Splitter 800-2500MHz N Female Connector
-
Lightning protector with N male flange to SMA female connector
-
Gas Discharge Tube Lightning arrester with F coaxial connector
-
lightning protector with TNC male to TNC female connector
-
7dB 800-2500MHz Directional Coupler
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Four Star | |
| Model Number | FSDL-03-KN5W |
Product Description
Product Description

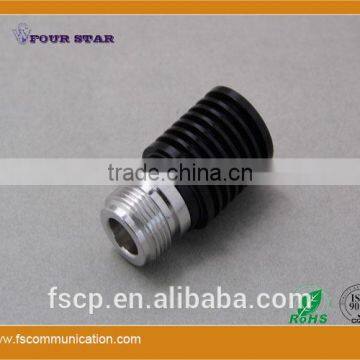

| 5 Watt N Type Coaxial Dummy Load | ||
| Model No. | FSDL-03-KN5W | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-3GHz | |
| VSWR | ≤1.15 | |
| Power Capacity | 5 Watt | |
| RF Connector | N Female(jack) Connector | |
| Material an Plating | ||
| Parts Name | Material | Plating (Finish) |
| Connector body | Brass | Tri-Metal(CuZnSn) |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Housing | Aluminum | Black Passivation |
| Environmental | ||
| Operating Temp. | _45~ 85 °C | |
| Storage Temp. | _60~120°C | |
| Weatherproof Rate | IP66 | |
| Relative Humidity | 5%-95% | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Weight (Net) | 40g | |
