Home > Products > BTS Passive Components > 50 Watt N Type Coaxial Dummy Load (Terminator )

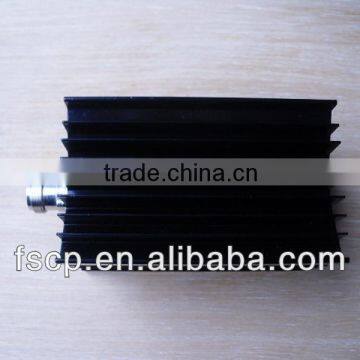

50 Watt N Type Coaxial Dummy Load (Terminator )
USD $10.85 - $15.8
/ Piece
30 Pieces(Min.Order)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Four Star | |
| Model Number | FSDL-03-KN50W |
Product Description
Specifications
*. Wide operating frequency range*. Low VSWR Low PIM 3rd
*. Excellent capacity in anti-pluse and anti-burnout
| 50 Watt N Type Coaxial Dummy Load (Terminator ) | ||
| Model No. | FSDL-03-KN50W | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-3GHz | |
| VSWR | ≤1.20 | |
| Power Capacity | 50 Watt | |
| RF Connector | N Female Connector | |
| Material an Plating | ||
| Parts Name | Material | Plating (Finish) |
| Connector body | Brass | Tri-Metal(CuZnSn)or Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Housing | Aluminum | Black Passivation |
| Environmental | ||
| Operating Temp. | _45~ 85 °C | |
| Storage Temp. | _60~120°C | |
| Weatherproof Rate | IP66 | |
| Relative Humidity | 5%-95% | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Weight (Net) | 320g | |
