Gas Discharge Tube Lightning arrestor with BNC Male to BNC Female Connector

FOB Price

USD $3.8 - $5.8 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Four Star
Model Number	LDGD-BNCJK-2.5

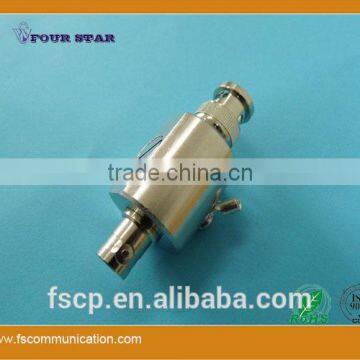

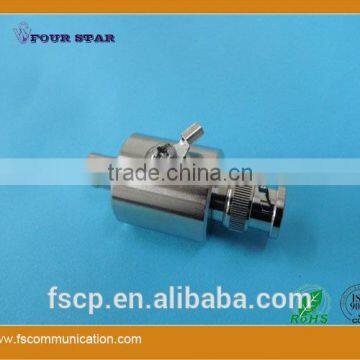

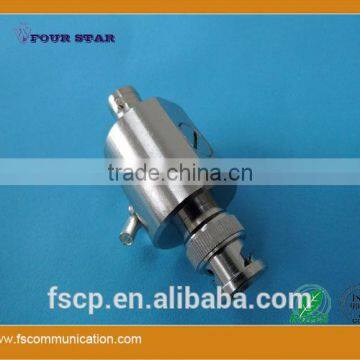

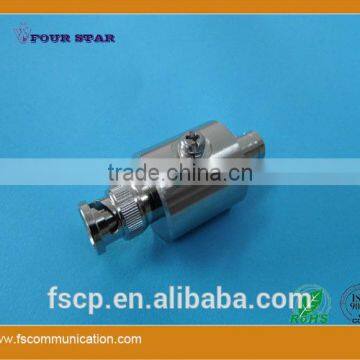

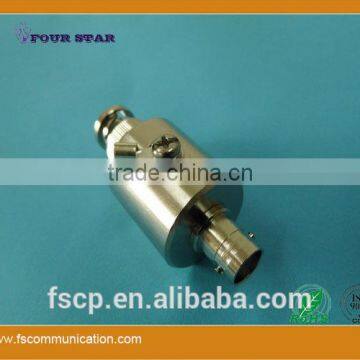

Gas Discharge Tube Lightning Arrestor BNC Male to BNC Female Connector

Gas Discharge Tube Type Lightning Protector With BNC Male to BNC Female Connector
Model No.	BNC-GD-JK-2.5
Interface	IEC 60169-8/MIL-STD-348/313
Electrical
Characteristic Impedance	50ohm
Coaxial Connector	BNC Male to BNC Female Connector
Frequency Range	DC-2.5GHz
VSWR	≤1.20 @DC-2.5GHz
Insertion Losss	≤0.20dB(3GHz)
Impulse Breakdown Voltage	≤1500V (1kv/μs)
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤1.5mΩ	Outer Contact ≤1 mΩ
Peak Power	200 Watts
DC Breakdown Voltage	90/150/230/350V±20%(100v/s)
AC Discharge Current	5A(50Hz)
Surge Discharge Current	5KA(8/20μs)
Maximum Withstand Current	20KA(8/20μs)
Mating	—
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating (Finish)
Body(Housing)	Brass	Ni or Tri-Metal(CuZnSn)
Insulator	PTFE	—
Inner Conductor	Phosphor Bronze	Au
Coupling Nut	Brass	Ni
Gasket	Silicone Rubber	—
Grouding Component	Stainless Steel	—
Environmental
Operating Temperature	_45 °C-85 °C
Weatherproof Rate	IP67
RoHs (2002/95/EC)	Compliant by exemption
EU Directive 2006/95/EC	Compliant
