Home > Products > BTS Passive Components > rf coaxial fixed attenuator n male to n female connector 2 watt

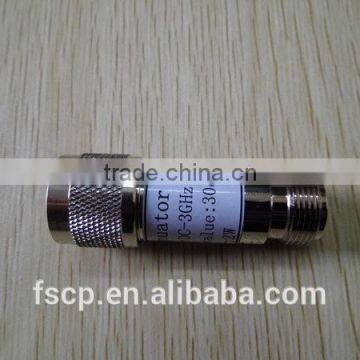

rf coaxial fixed attenuator n male to n female connector 2 watt
USD $5.5 - $9.9
/ Piece
30 Pieces(Min.Order)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | FOUR STAR | |
| Model Number | FSATT-03XX-N2 |
Product Description
Product Description
| Model No. | FSATT-03XX-N2(XX Indicates ATT Value) | ||||||
| RF Connector | N Male/N Female | ||||||
| Operating Freq. | DC –3GHz | ||||||
| Average Power | 2 Watt | ||||||
| Peak Power | 5µs:0.1KW | ||||||
| VSWR | ≤1.15 | ||||||
| Intermodulation 3rd | ≤ -120dBc@2×20W | ||||||
| Attenuation Value | 3dB | 5dB | 6dB | 10dB | 15dB | 20dB | 30dB |
| Accuracy | ±0.3dB | ±0.5dB | ±0.5dB | ±0.7dB | ±0.7dB | ±0.8dB | ±0.8dB |
| Material an Plating | |||||||
| Parts Name | Material | ||||||
| Connector body | Brass | ||||||
| Insulator | PTFE | ||||||
| Inner Conductor | Phosphor Bronze | ||||||
| Housing | Aluminum | ||||||
| Operating Temp. | _45~ 85 ℃ | ||||||
| Storage Temp. | _60~120℃ | ||||||
| Weatherproof Rate | IP66 | ||||||
| Relative Humidity | 5%-95% | ||||||
| RoHs (2002/95/EC) | Compliant by exemption | ||||||
| Weight (Net) | 65g | ||||||
