Lubrication System Multiheads Cnc Carver
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
8 Spimdles Cnc Carver on Hot Sale With Low Price
-
High Configuration Multi-head Cnc Router for PMMA Plate Cutting
-
Double Heads Cnc Router With Vacuum Table for Wood
-
3D Multiheads Woodworking Cnc Router for Funiture
-
Multi-spindle Guitar Woodworking Cnc Router
-
High Precision 3 Axis Ball Screw Transmission Multiheads Plywood Cnc Router for Package Industry
Product Details
| Place of Origin | Shandong, China | Brand Name | PENN | |
| Model Number | PC-1325DV | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

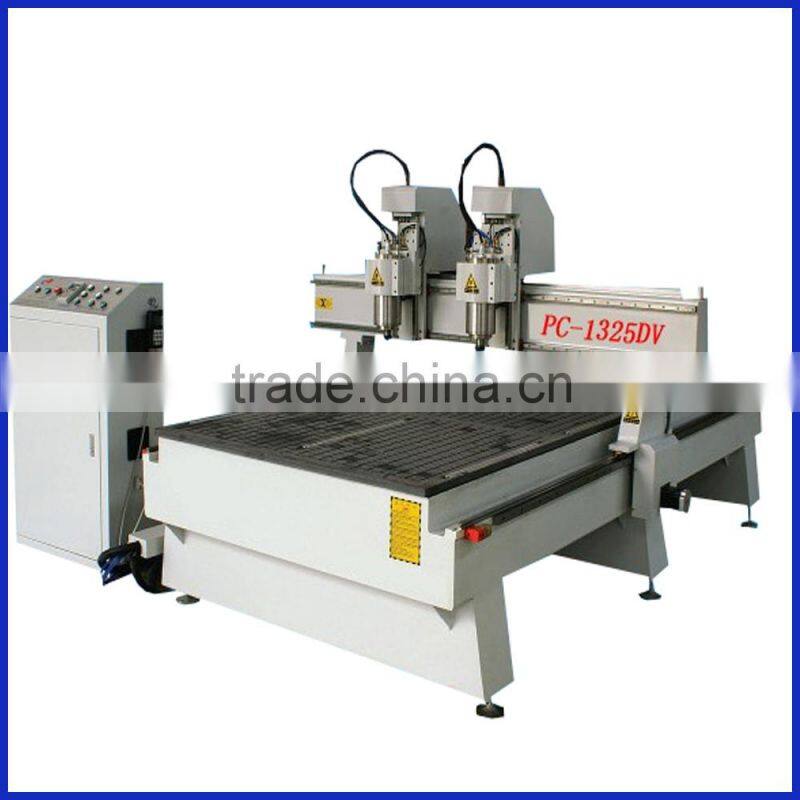

Double heads cnc router PC-1325DV
1.seamless steel structure
2.Two spindles
3.Easy to operate
4.CE, ISO certificate
5.In stock
Technical Parameter:
Model | PC-1325DV |
X.Y working area | 1300mm*2500mm |
Z working area | 200mm |
Resolution | 0.02mm |
X,Y structure | Rack and pinion transmission |
Z structure | Imported ball screw |
Max speed | 30m/min |
Spindle power | 3.0kw |
Spindle rotating speed | 0-24000r/min |
Cooling mode | Water cooling |
Working voltage | AC380V/50/60 Hz ,3PH |
Drive Motor | Stepper |
Command | G code*.u00*.mmg*plt |
Operating system | DSP(with separate operation cabinet) |
Interface | USB |
Flash Memory | 128M |
Diameter of cutter | 3.175-12.7 |
Work-holding | By suction |
Multi-head cnc router
aluminum profile cnc machining center
1. Payment terms:
T/T, L/C, West Union which is negotiable.
Then 30% deposit, 70% balance payment before shipment.
2. Delivery time
Standard machine: 2 weeks after getting your deposit.
3. Logo& model no.
Machine with your logo&model no. is available
4. OEM
Available
5. Guarantee
1 year since you get the machine.(lens and mirrors 3 monthes,laser tube 8 monthes)
6. After sales service
24 hours online service in SKYPE,TRADEMANAGER,WHATSAPP type.
If machine has problems because of bad quality parts during guaranty,
we change new parts Free,Out of guaranty, we charge parts at cost price.
Whole lifetime technical support.
7. Packing
LCL: plywood case inner film with steel pipe, Silica gel dryer.
FCL: film cover, fixed in the container, Silica gel dryer.
8. Advantage
A.Experienced Staff and R&D
B.Competitive Price with high quality
C.Delivery in time.
D.Superior Service and be at service at any time
E.Small orders welcome and hope to build long term business relationship
