Product Details
| Place of Origin | Shandong, China | Brand Name | PENN | |
| Model Number | PC-2040E | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

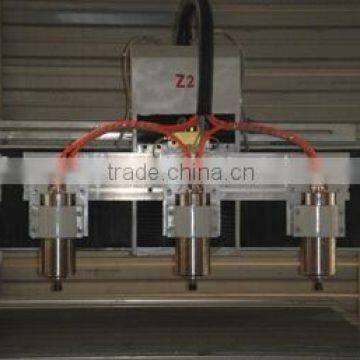

Multiheads cnc router PC-2040E
1.seamless steel structure
2.Easy to operate
3..CE, ISO certificate
4..In stock
Technical Parameter:
Model | PC-2040E |
X.Y working area | 2000mm*4000mm for single spindle working separately |
| 200mm*4000mm for both spindle working synchronously |
Z working area | 200mm |
Resolution | 0.02mm |
X,Y structure | Rack and pinion transmission |
Z structure | Taiwan ball screw |
Max speed | 20m/min |
Spindle power | 1.5KW/2.2kw/3KW |
Spindle rotating speed | 0-24000r/min |
Cooling mode | Water cooling |
Working voltage | AC220V/50/60 Hz ,2PH |
Drive Motor | Stepper |
Command | G code*.u00*.mmg*plt |
Operating system | NC Studio |
Diameter of cutter | 3.175--8 |
Work-holding | By clamp |
Net weight | 700kg |

Multi-head cnc router
aluminum profile cnc machining center
