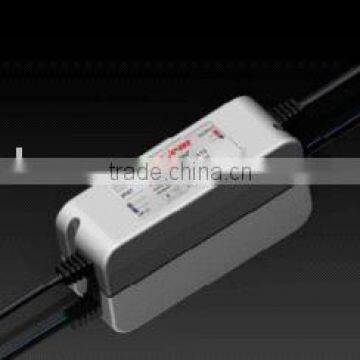

BPCN030C701 33.6w Linkcom Led power Supply/CONSTANT CURRENT/CE TUV

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1,Linkcom LED Power
2,TUV CE
3,IP64,constant current 700mA
4,29.4W (With PFC )

FEATURES

AC Input 90~264Vac

Protection: OVP; OTP;SCP;Over load

High Operating ambient Temp: -30°C~+50°C

Power Factor:>0.95@115Vac;>0.9@230Vac@full load

Safety: UL1310(Pending); EN61347-2-13; CB

EMC: CE; EN55015; EN61547

Comply with Indoor Waterproof (IP 64)

Dimension (mm): L*W*H:152*53*39.5

Electrical Specifications @25°C
Part No.		BPCN030C701
Output	DC Voltage	42V±10%
	LED Operation Voltage	32~42V
	Rated current	0.7A
	Rated power	29.4W
	Protection	OVP; OTP ;SCP;Over load
Input	Voltage range	90~264Vac
	Frequency range	47~63Hz
	Efficiency	85% @115Vac/60Hz
	AC current	0.5A
	Inrush current	50A/230Vac cold start
	Leakage current	0.5mA/240Vac/50Hz
Environment	Operating ambient Temp.	-30°C~+40°C@100%+50°C @60%load Comply with Indoor Waterproof (IP 64) -40°C~+80°C
	Operating relative Hum.
	Storage ambient Temp.
	Storage relative Hum.	Comply with Indoor Waterproof (IP 64)
Others	MTBF	100,000 hrs/25°C
		UL1310(Pending); EN61347-2-13; CB&CE; EN55015; EN61547
	Safety & EMC

	RoHS	YES
	Dimension (mm) LWH	1525339.5
