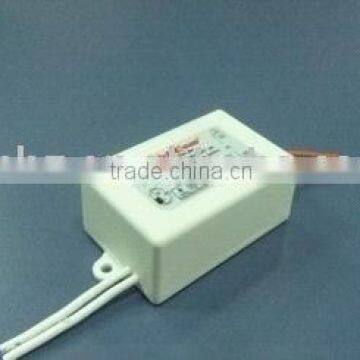

BPHE005C351 5w Linkcom Led power Supply/CONSTANT CURRENT/CE TUV
- Shanghai
- Credit Card PayPal
You May Like
-
BPCN030C701 33.6w Linkcom Led power Supply/CONSTANT CURRENT/CE TUV
-
BPCN030C142 33.6w Linkcom Led power Supply/CONSTANT CURRENT/CE TUV
-
BPCN030C112 33.6w Linkcom Led power Supply/CONSTANT CURRENT/CE TUV
-
BPCE030C701 33.6w Linkcom Led power Supply/CONSTANT CURRENT/CE TUV
-
BPCE030C142 33.6w Linkcom Led power Supply/CONSTANT CURRENT/CE TUV
-
BPCE030C112 33.6w Linkcom Led power Supply/CONSTANT CURRENT/CE TUV
Product Details
| Place of Origin | Guangdong, China | Brand Name | Linkcom | |
| Model Number | BPHE005C351 | Output Type | Single | |
| Input Voltage | Other, 100V ~ 240VAC | Output Voltage | 3V~15VDC | |
| Output Current | 350mA |
Product Description
Specifications
1,Linkcom LED Power2,UL CE
3,IP67,constant current 350mA
4,5W
FEATURES
Suitable for Hi-Power LED Lighting Applications.
Universal AC Input /Full range
DC Output with Constant Current
Safety: UL1310 / EN61347-2-13 / CB
EMC: CE / EN55022 / EN55024
Compliant with IP67 ( Waterproof )
MTBF: 100,000 hrs / 25°C
High Reliability
Electrical Specifications @25°C | ||
Input | Voltage range | 100 ~ 240 VAC |
Frequency range | 50 / 60Hz | |
Efficiency (Typ.) | 63% ~ 75% | |
AC current | 0.18A (Max.) | |
Inrush current | 30A / 230 VAC cold start | |
Leakage current | 0.7mA / 264VAC / 50Hz | |
Function | Protection | Short-circuit / OVP / OTP / Constant Current |
Environment | Operating ambient Temp. | -20°C ~ +60°C |
Operating relative Hum. | 20% ~ 90% | |
Storage ambient Temp. | -40°C ~ +80°C | |
Storage relative Hum. | 10% ~ 95% | |
Others | MTBF | 100,000 hrs / 25°C |
Safety & EMC | UL1310 / EN61347-2-13 / CB / CE / EN55022 / EN55024 | |
RoHS | YES | |
Dimension (mm) L*W*H | 66.5*35*23.5(with screw hold) | |
