Alloy steel circular plate small weight sensor (YBA)(5~1000klb)
- 10000 Piece / Pieces per Month
- shanghai
- T/T Credit Card PayPal
You May Like
-
China alloy steel S Type Load Cell (TSE)(100kg~20t)
-
Supplier S type Load cell (TSD)(50lb~10klb)
-
Supplier S type weighing transducer load cell (TSC)(100~1000kg)
-
Supplier S Type Load Cell For hopper scale load cell(TSA)(5kg~20t)
-
Hot selling Aluminum Single Point 400kg Load Cell (PX12)
-
Box Type Single Point 400kg Load Cell (PX12)
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SILVANUS | |
| Model Number | YBA | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description

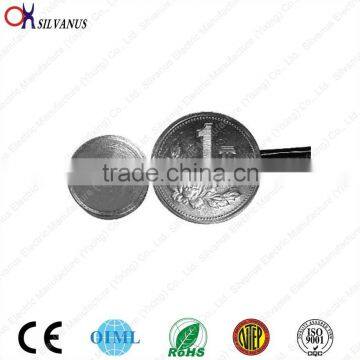

Circular plate type Load Cell (YBA)(5~1000lb)
YBA Load Cell Features :
1.Flat die structure ,low profile ,easy to install ,strong anti-deflective loading
2.Moisture-proof sealed .
3.Suitable for various testing equipments .
YBA Load Cell Application :
Suitable for hopper scale, scale, roller scale,continuous casting ladle electronic scale and various special weighing apparatus
YBA Load Cell Dimensions(mm):
YBA Load Cell Specifications:
Emax(Max. capacity) | lb | 5~1000 |
Sensitivity | mV/V | 1.0±0.2 |
Accuracy class |
| D1 |
Maximum number of verification intervals | nmax | 1000 |
Minimum load cell verification interval | Vmin | Emax/2000 |
Combined error | %F.S | ≤±0.10 |
Creep | %F.S/30min | ≤±0.10 |
Temperature effect on zero | %F.S/10°C | ≤±0.04 |
Zero balance | %F.S | ±1.0 |
Input resistance | Ω | 350±10Ω |
Output resistance | Ω | 350±3Ω |
Service temperature range | °C | -30...+70 |
Safe overload | %F.S | 120 |
Ultimate overload | %F.S | 200 |
Recommended excitation voltage | V | 5…12 |
Insulation resistance | MΩ/50V | >5000 |
Protection class |
| IP67 |
Load cell material |
| alloy steel/stainless steel |
Cable length | m | 0.5,1.5 |
Cable outer caliber | mm | Φ1.5-3 |
Packaging & Delivery
DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
LETTER OF PATENT:
| Transportation | Routine |
| By car | 3 hours from Shanghai to Yixing |
| By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
