Home > Products > siemens > Siemens Logo! 230rc 6ed1052-1fb00-0ba5 logic module

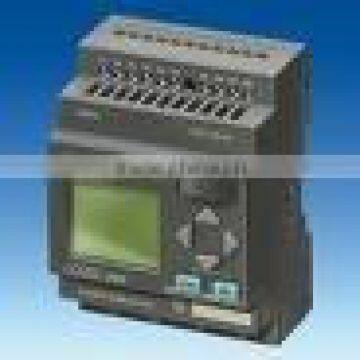

Siemens Logo! 230rc 6ed1052-1fb00-0ba5 logic module

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Germany		Brand Name	Siemens
Model Number	6ED1052-1FB000-0BA5

Product Description

Specifications

LOGO! The logic module for micro automation
Forget individual components, such as time switches, timing relays, counters

LOGO! 230RC 6ED1052-1FB00-0BA5

Supply voltages:115-230 V DC/AC

Digitalinputs: 8;

Digitaloutputs: 4 Relay, withinductiveload,max 3A, withresistiveload,max: 10A

Degreeandclassofprotection: IP20

Operatingtemperature: 0 °C- 55 °C

Standards,approvals,certificates: CSA, FM, VDE0631, Marine, UL

Mounting: on35mmDINrail,4spacingunitswide.

Width: 72 mm

Height: 90 mm

Depth: 55 mm

Highlights of the new 0BA5 series

Hardware

Enhanced firmware for the LOGO! 0BA5 basic device
Analog module with two analog outputs 010 V
PI controller for temperature control
Two-stage ramp control for the control of (e.g.) frequency
converters
Analog multiplexer, e.g. for light control
New digital DM 16 expansion module
Compatible with the 0BA4 generation

Software

Function blocks for simple control loops, ramp functionality and analog multiplexers (MUX) are now also integrated in the software.
Predefined parameter sets for standard applications can be selected for the closed-loop control function. Gain and integral time can be adjusted as required. Two analog values can be approached over ramps using the ramp functionality.

Acceleration and delay can be set and even the maximum output value can be specified. The analog multiplexer combines binary inputs and provides up to four default analog values at the output subject to two binary inputs for example, to control dimmers or fans.

Operator control and monitoring

The contrast of the status displays can be individually adjusted
Show status displays
