Metal pushbutton switch PX-13 Piezo-electric Switches anti-vandal pushbutton Switch datasheet

Specifications

Metal pushbutton switch PX-13 Piezo-electric Switches anti-vandal pushbutton Switch datasheet
22MM PANEL-MOUNTED NORMALLY OPEN (N.O) PIEZOELECTRIC SWITCHES
SUITED FOR LONG-LIFE AND RUGGED USE APPLICATIONS.
MADE FROM AL6061 ALUMINUM ALLOY MATERIAL WITH TYPE II ANODIZATION,

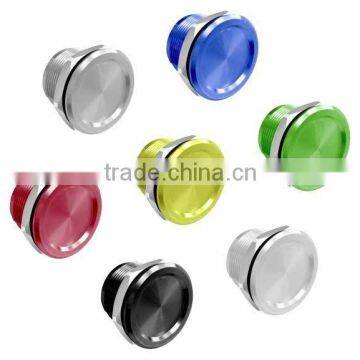

THE UNITS ARE AVAILABLE IN 7 COLORS.
THE PX-13 REQUIRES NO EXTERNAL POWER SOURCE TO OPERATE;
IT IS ANTI-VANDAL, WATER AND WEATHER RESISTANT AND CAN BE OPERATED WITH FINGERS,
GLOVES AND THROUGH ELASTOMERIC OVERLAYS.
GENERAL DESCRIPTION
PX-13 is heavy duty, non-sparking, nonmagnetic,
corrosion resistant, anti-vandal, and is designed for both indoor and outdoor use.
The switch features solid state Piezo-electric Switch Technology
generating a dry contact N.O. pulse simply by the touch of a finger,
with no physical movement or moving parts.
The PX-13 features virtually unlimited lifespan of over 20 Million uses,
which is the ideal benefit of piezoelectric technology,
and tested to work in harsh conditions of -40°C to +70°C.
PX-13 meets IP-68 ingress protection and is resilient
to submerging in water, dirt and dust applications,
making it suitable for both indoor and outdoor conditions.
MAIN FEATURES
Easy to install and use
Supports a wide range of switch voltages from 5V to 12V DC
Piezoelectric technology can sense actuation within a solid metal enclosure,
  Voltage 5VDC to 12VDC (Max)
  Input Current < 1A
  Contact Resistance <100 ohm
  Wire Leads 2 x 24 AWG 280mm (11.02 in) wires
  2-Wire Interface No polarity wires for +Vin or Ground of switched device
  Button life  Over one million cycles
  Impulse Time  >50ms (on Actuation)
ENVIRONMENTAL SPECIFICATIONS
  Operating Temperature  -40°C to 70°C (-40°F to 158°F)
  Storage Temperature -60°C to 80°C (-76°F to 176°F)
  Operating Humidity 0% to 99% Wet - Meets IP68 (Waterproof)
  Operating Environment Indoor and Outdoor
