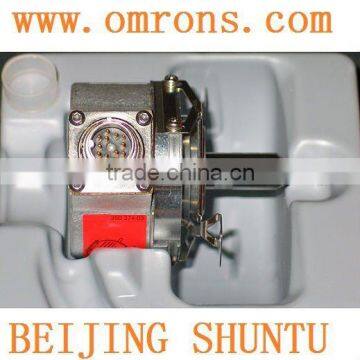

1XP8001-1 encoder 1XP8001 SIEMENS rotary encoder
Negotiable
/ Piece
1 Piece(Min. Order)
- Credit Card
You May Like
-
1XP8001-1 encoder 1XP8001 SIEMENS Rotary Pulse Encoder
-
Nikkai Japan NKK Switches LB-15SK illuminated pushbutton switch
-
Nikkai Japan NKK Switches LB-25SK illuminated pushbutton switch
-
Nikkai NKK Switches LB-15 pushbutton switch LB-15CK
-
NKK distributor LB-15WK panel sealed push button switch datasheet
-
NKK distributor LB-25WK panel sealed pushbutton switch datasheet
Product Details
| Place of Origin | Germany | Brand Name | SIEMENS | |
| Model Number | 1XP8001-1/2048 | Usage | Position Sensor | |
| Theory | Optical Sensor | Output | Other, TTL |
Product Description
Specifications
1XP8001-1 encoder 1XP8001 SIEMENS rotary encoder 1XP8001-1/2048lXP8001-1/1024 (TTL) 1XP8001-2/1024
1XP8001-1 encoder 1XP8001 SIEMENS rotary encoder 1XP8001-1/2048
lXP8001-2/1024 (TTL) 1XP8001-2/1024
Supply : +10 V to +30 V (TTL)
Current input without load: 200mA ;
Maximum load current per output:100mA;
Resolution, Pulses per revolution:1024 ;
Pulse offset between the two outputs:90 ± 20%
Output amplitude: U High> UB-3.5V, U Low< 3V;
Minimum edge interval: 0.8uS at 160 KHz;
Edge sttepness(without load or cable): t+, t-<200 ns
Maximum frequency : 160 kHz ;
Maximum speed : 9000 /MIN; 9000 rpm
Temperature range -20 C to 100C;
Degree of protection: IP66;
Maximum radial cantilever force: 60N;
Maximum axial force: 40N;
Termination system: 12-PIN ; 12-way plug (socket supplied)
IXP8001-2/1024;
CSA; UL;
Weight: 0.5 Kg with package
