Product Details
| Place of Origin | Guangdong, China | Model Number | PX33 | |
| Protection Level | IP68 | Max. Current | 1A | |
| Max. Voltage | 24V |
Product Description
Specifications

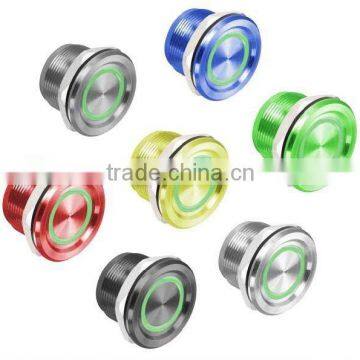

Metal pushbutton switch PX-33 Piezo-electric Switches illuminated anti-vandal pushbutton switch datasheetBi-Colored LED Ring
Metal pushbutton switch PX-33 Piezo-electric Switches illuminated anti-vandal pushbutton switch datasheet
Bi-Colored LED Ring Illumination PIEZOELECTRIC SWITCHES
SUITED FOR LONG-LIFE AND RUGGED USE APPLICATIONS.
MADE FROM AL6061 ALUMINUM ALLOY MATERIAL WITH TYPE II ANODIZATION,
THE UNITS ARE AVAILABLE IN 7 COLORS.
THE PX-33 IS ANTI-VANDAL, WATER AND WEATHER RESISTANT AND CAN BE OPERATED WITH FINGERS, GLOVES AND THROUGH ELASTOMERIC OVERLAYS. PX-33 SERIES HAVE BI-COLORED
LED RING WITH 2 EXTERNAL CONTROL WIRES PROVIDING USER FEEDBACK FOR VARIOUS APPLICATIONS, SUCH AS DOOR EXIT, ELEVATOR PANELS AND INDUSTRIAL EQUIPMENT CONTROL.
GENERAL DESCRIPTION
non-sparking, nonmagnetic, corrosion resistant, illuminated, anti-vandal,
designed for both indoor and outdoor use.
The switch features solid state Piezoelectric Switch Technology
generating a dry contact N.O. pulse simply by the touch of a finger, with no physical movement or moving parts.
The PX-33 series features virtually unlimited lifespan of
over 20 Million presses, which is the ideal benefit of
piezo electric technology, and tested to work in harsh conditions of -40°C to 70°C. PX-33 meets IP-68
ingress protection and is resilient to submerging in water, dirt and dust applications, making it suitable for both indoor and outdoor conditions.
