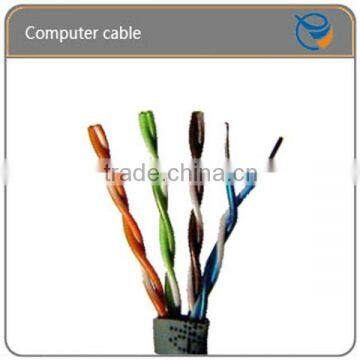

Copper Wire Braided Shield Computer Power Cables
USD $0.2 - $26.9
/ Meter
500 Meters(Min. Order)
- Guangzhou or according to your requirement
- T/T
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Hengfei | |
| Model Number | DJYPVP | Conductor Material | Copper | |
| Insulation Material | PE | Jacket | PVC | |
| Number of Conductors | Single core or multi-core | Application | computer,network |
Product Description
Specifications
1.Standard:IEC608892.Certificate:CQC ,3C
3.Strict QC
4.99.95% purity copper conductor
5.Free sample
Copper Wire Braided Shield Computer Power Cables
Application
This series of cable is applied to rated voltage 500V and below,can be used as the connection lines of the computers and automatic equipment which have higher requirement for the anti-jamming. The core of the cable used low density polyethylene which has perfect chemical stability.PE with high insulation resistance, good voltage rsistance,small dielectric coefficient and little influence on dieletric loss from the effects of temperature and frequency,not only can meet the performance quirements,but also ensur the life of cable.
Construction
1. Conductor 2.Insulation 3.Tape
4.Braid shield 5.Sheath
Technical data
Rated voltage: 0.6/1KV
Highest long working temperature of conductor: 70°C
Laying temperature:above -15°C
Minimum bending radius:12D
Product description
| Type | Descfiption | Application |
| DJYPVP | PE insulation pair group copper wire braided separate shield and general shield PVC sheath computer cable | Fixed installation indoor, in cable trench or in the pipenline |
| DJPY2VP2 | PE insulation pair group copper tape separate shield and general shield PVC sheath computer cable | |
| DJYP3VP3 | PE insulation pair group aluminum/plastic composite tape separate shield and general shield PVC sheath computer cable | |
| DJYVPR | PE insulation pair group copper wire braided general shield PVC sheath computer flexible cable | Applied to the need of frequently move or soft area |
| DJYVP2R | PE insulation pair group copper tape general shield PVC sheath computer flexible cable | |
| DJYVP3R | PE insulation pair group aluminum/plastic composite tape general shield PVC sheath computer flexible cable | |
| DJYPVR | PE insulation pair group copper wire braided separate shield PVC sheath computer flexible cable | |
| DJYP2VR | PE insulation pair group copper tape separate shield PVC sheath computer flexible cable | |
| DJYP3VR | PE insulation pair group aluminum/plastic composite tape separate shield PVC sheath computer flexible cable | Applied to the need of frequently move or soft area |
| DJYPVPR | PE insulation pair group copper wire braided separate shield and general shield PVC sheath computer flexible cable | |
| DJYP2VP2R | PE insulation pair group copper tape braided separate shield and general shield PVC sheath computer flexible cable | |
| DJYP3VP3R | PE insulation pair group aluminum/plastic composite tape separate shield and general shield PVC sheath computer flexible cable | |
| DJYVP22 | PE insulation pair group copper wire braided general shield steel tape armoured PVC sheath computer cable | Directly buried |
| DJYVP2-22 | PE insulation pair group copper tape general shield steel tape armoured PVC sheath computer cable | |
| DJYVP3-22 | PE insulation pair group aluminum plastic composite tape general shield steel tape armoured PVC sheath computer cable | |
| DJYPVP22 | PE insulation pair group copper wire braided separate shield and general shield steel tape armoured PVC sheath computer cable | |
| DJYP2VP2-22 | PE insulation pair group copper tape separate shield and general shield steel tape armoured PVC sheath computer cable | |
| DJYP2VP3-22 | PE insulation pair group aluminum/plastic composite tape separate shield and general shield steel tape armoured PVC sheath computer cable |
