Home > Products > Control Cable (IEC,BS,CNS) > 450/750V copper core PVC Insulated PVC Sheath Control Cable

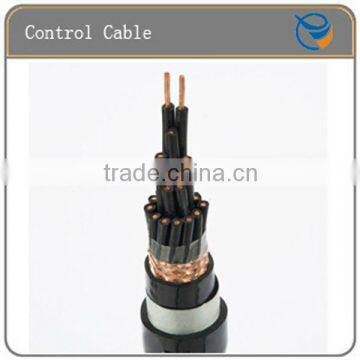

450/750V copper core PVC Insulated PVC Sheath Control Cable
USD $0.37 - $37.2
/ Meter
500 Meters(Min. Order)
- Guangzhou or according to your requirement
- T/T
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Hengfei | |
| Model Number | KVVP2-22 ,KVVR,KVVRP | Conductor Material | Copper | |
| Insulation Material | PVC | Jacket | PVC | |
| Number of Conductors | Multi-core | Application | control wiring between the equipment |
Product Description
Specifications
1.Standard:IEC60050(461):19842.Certificate:CQC,3C
3.Strict QC
4.99.95% purity copper conductor
5.Free sample
450/750V copper core PVC Insulated PVC Sheath Control Cable
Application
Used as an interconnecting cable in signal and control equipment – for measuring, control or regulation
Construction
Conductor :copper core
Insulation :PVC
Sheath :PVC
Technical data
Rated voltage: 450/750V
The Highest working temperature of conductor :70°C
The temperature for laying cable : less than 0 °C
The bending radius : unarmoured cable , it should be not less than 8 times of diameter ; armoured or copper
tape shield cable,it should not be less than 12 times of diamter.
Product description
| KVV | Copper conductor PVC insulation PVC sheath control cable |
| KVVP | Copper conductor PVC insulation copper wire braid shield PVC sheath control cable |
| KVVP2 | Copper conductor PVC insulation copper tape shield PVC sheath control cable |
| KVVP3 | Copper conductor PVC insulation Al-foil shield PVC sheath control cable |
| KVV22 | Copper conductor PVC insulation steel tape armouring PVC sheath control cable |
| KVVP2-22 | Copper conductor PVC insulation copper tape shield steel tape armouring PVC sheath control cable |
| KVV32 | Copper conductor PVC insulation steel wire armouring PVC sheath control cable |
| KVVR | Flexible copper conductor PVC insulation PVC sheath control cable |
| KVVRP | Flexible copper conductor PVC insulation copper wire braid shield PVC sheath control cable |
