Home > Products > Control Cable (IEC,BS,CNS) > KVV copper conductor PVC insulated and sheathed control cable

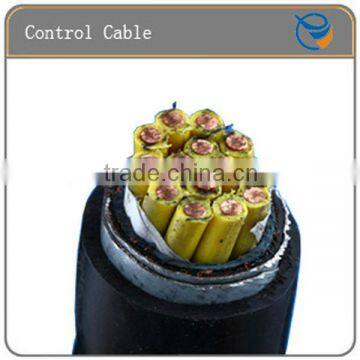

KVV copper conductor PVC insulated and sheathed control cable
- Chang sha or Custom's request
- T/T
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Heng Fei | |
| Model Number | KVV ZR-KVV KVVR | Type | Insulated | |
| Application | Other, machinery,cable chute,pipeline | Conductor Material | Copper | |
| Conductor Type | Solid | Insulation Material | PVC |
Product Description
Specifications
Packaging Detail: Drum or According to your requirementDelivery Detail 2-3 weeks after receiving the deposit
1.Rated voltage:450/750 v
2.Certification:3C, ISO9001-2000
3.Competitive price and excellent quality
1. This product can be used in the site of control circuit,monitoring circuit and protective lines that have AC rated voltage U0/U of 450/750 V and below.
2.This product permissable long term operating temperature of conductors is 70°C
3.The control cable is not limited by drop in level when being laid and the ambient temperature shall not be lower than 0°C
4.Permitted bending radius:Non- armored cable :not less than the overall diameter of cable by 8 times;Armored:not less than the overall diameter of cable by 12 times.
Rubber sheath control Cable
Model | Name | Range of production |
KVV KYJV | PVC insulated,PVC Sheath | 0.75-2.5mm2 2-61Cores 4-6mm2 2-14Cores 10mm2 |
KVVP KYJVP | PVC insulated,PVC Sheath,Braided copper screen | |
KVVP2 KYJVP2 | PVC insulated,PVC Sheath,Copper tape shield | |
KVV22 KYJV22 | PVC insulated,PVC Sheath,Copper-tape armored | |
KVVR KYJVR | PVC insulated,PVC Sheath,Flexible control Cable | |
KVVP2/22 KYJVP2/22 | PVC insulated,PVC Sheath,Copper tape shield,Copper-tape armored |
Note:
1. Ratio voltage:450/750V, Long-term operating temperature allowance of conductor is 70°C for
Contact Us
- Hengyang Hengfei Cable Co., Ltd.
- Contact nameNicole Wang Chat Now
- Phone86-734-8495158
- AddressNo.121,Huangbai Road, Yanfeng District, Hengyang City , Hunan Province, Hengyang, Hunan
