Twisted Pair PVC Control Instrumentation Cable
- Guangzhou or according to your requirement
- T/T
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Hengfei | |
| Model Number | KVV ,KVVP2 | Conductor Material | Copper | |
| Insulation Material | PVC | Jacket | PVC | |
| Number of Conductors | Single core or multi-core | Application | control wiring |
Product Description
Specifications
1.Standard:IEC600502.Certificate:CQC,3C
3.Strict QC
4.99.95% purity copper conductor
5.Free sample
Twisted Pair PVC Control Instrumentation Cable
Application
PVC Sheath Copper Wire Braided Shield Control Cable Used as an interconnecting cable in signal and control equipment – for measuring, control or regulation.

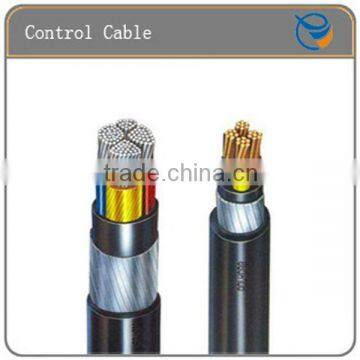

Construction
1.Conductor 2.Insulation 3.Rape 4.Braid shield 5.Copper tape shield
6.Inner sheath 7.Steel tape armoured 8Steel wire armoured 9.Over sheath
Technical data
Rated voltage 450/750V
Highest working temperature of conductor 70°C
Minimum bending radius 12D
Product description
| KVV | Copper conductor PVC insulation PVC sheath control cable |
| KVVP | Copper conductor PVC insulation copper wire braid shield PVC sheath control cable |
| KVVP2 | Copper conductor PVC insulation copper tape shield PVC sheath control cable |
| KVVP3 | Copper conductor PVC insulation Al-foil shield PVC sheath control cable |
| KVV22 | Copper conductor PVC insulation steel tape armouring PVC sheath control cable |
| KVVP2-22 | Copper conductor PVC insulation copper tape shield steel tape armouring PVC sheath control cable |
| KVV32 | Copper conductor PVC insulation steel wire armouring PVC sheath control cable |
| KVVR | Flexible copper conductor PVC insulation PVC sheath control cable |
| KVVRP | Flexible copper conductor PVC insulation copper wire braid shield PVC sheath control cable |
