Home > Products > Control Cable (IEC,BS,CNS) > 1.5mm 4mm 25mm Control Cable
1.5mm 4mm 25mm Control Cable
USD $0.3 - $35.3
/ Meter
500 Meters(Min. Order)
- Guangzhou or according to your requirement
- T/T
You May Like
-
Copper core PVC insulated PVC sheathed Control Cable
-
Muilti-Core PVC Insulated PVC Sheathed Control Cable
-
450/750V copper core PVC Insulated PVC Sheath Control Cable
-
450/750V Copper Core PVC Insulated and Sheathed Control Cable
-
SWA/STA XLPE Insulated PVC Sheath Control Cable
-
PVC Insulated Control Cable
Product Details
| Place of Origin | Hunan, China | Brand Name | Hengfei | |
| Model Number | KVV22,KVV32 | Conductor Material | Copper | |
| Insulation Material | PVC | Jacket | PVC | |
| Number of Conductors | Single core or multi-core | Application | control wiring between the equipment |
Product Description
Specifications
1.Standard:IEC60050(461):19842.Certificate:CQC,3C
3.Strict QC
4.99.95% purity copper conductor
5.Free sample

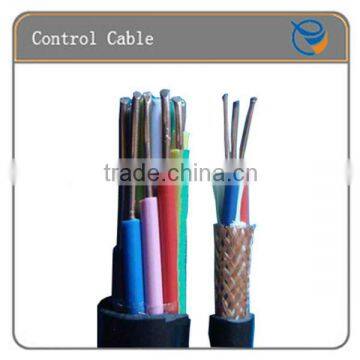

1.5mm 4mm 25mm Control Cable
Application
Used as an interconnecting cable in signal and control equipment – for measuring, control or regulation
Construction
1.Conductor 2.Insulation 3.Rape 4.Braid shield 5.Copper tape shield
6.Inner sheath 7.Steel tape armoured 8Steel wire armoured 9.Over sheath
Technical data
Rated voltage 450/750V
Highest working temperature of conductor 70°C
Minimum bending radius 12D
Product description
| KVV | Copper conductor PVC insulation PVC sheath control cable |
| KVVP | Copper conductor PVC insulation copper wire braid shield PVC sheath control cable |
| KVVP2 | Copper conductor PVC insulation copper tape shield PVC sheath control cable |
| KVVP3 | Copper conductor PVC insulation Al-foil shield PVC sheath control cable |
| KVV22 | Copper conductor PVC insulation steel tape armouring PVC sheath control cable |
| KVVP2-22 | Copper conductor PVC insulation copper tape shield steel tape armouring PVC sheath control cable |
| KVV32 | Copper conductor PVC insulation steel wire armouring PVC sheath control cable |
| KVVR | Flexible copper conductor PVC insulation PVC sheath control cable |
| KVVRP | Flexible copper conductor PVC insulation copper wire braid shield PVC sheath control cable |
