450/750V PVC insulated PVC sheathed Flexible Control Cable

FOB Price

USD $0.32 - $35.3 / Meter

500 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	Hengfei
Model Number	KVVR,KVVRP	Conductor Material	Copper
Insulation Material	PVC	Jacket	PVC
Number of Conductors	Multi-core	Application	control wiring between the equipment

1.Standard:IEC60050
2.Certificate:CQC,3C
3.Strict QC
4.99.95% purity copper conductor
5.Free sample

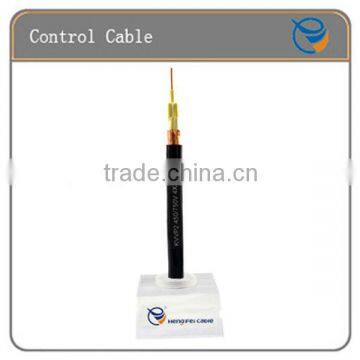

450/750V PVC insulated PVC sheathed Flexible Control Cable

Application

Used as an interconnecting cable in signal and control equipment – for measuring, control or regulation

Construction

1.Conductor 2.Insulation 3.Rape 4.Braid shield 9.Over sheath

Technical data

Rated voltage: 450/750V

The Highest working temperature of conductor :70°C

The temperature for laying cable : not less than 0 °C

The bending radius : unarmoured cable , it should be not less than 8 times of diameter ; armoured or copper

tape shield cable,it should not be less than 12 times of diamter.

Product description

KVV	Copper conductor PVC insulation PVC sheath control cable
KVVP	Copper conductor PVC insulation copper wire braid shield PVC sheath control cable
KVVP2	Copper conductor PVC insulation copper tape shield PVC sheath control cable
KVVP3	Copper conductor PVC insulation Al-foil shield PVC sheath control cable
KVV22	Copper conductor PVC insulation steel tape armouring PVC sheath control cable
KVVP2-22	Copper conductor PVC insulation copper tape shield steel tape armouring PVC sheath control cable
KVV32	Copper conductor PVC insulation steel wire armouring PVC sheath control cable
KVVR	Flexible copper conductor PVC insulation PVC sheath control cable
KVVRP	Flexible copper conductor PVC insulation copper wire braid shield PVC sheath control cable
