Automatic Digital Cintrol Carrousel Splitting Foam Machine
- SHENZHEN
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | QHMACH | |
| Model Number | QHQG-6000/7000 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
 [Equipment features]
This machine is mainly used to put many block foam on the worktable and slices at the same time, it is fully automatic digital control, and setting the data as need cutting thickness by control box. The turning speed of worktable is adjustable, the cutting is accurate and the production efficiency is very high (worktable can choose adding to vacuum equipment).
[Specifications]
Model  | QHYP-6000  | QHYP-7000  | QHYP-10000  |
Cutting foam size  | W1.5×L2×H1.2m(4pcs)  | W1.5×L2×H1.2m(5pcs)  | W1.5×L2×H1.2m(8pcs)  |
Cutting max foam size  | W1.5×L2×H1.2m(4pcs)  | W2.15×L3×H1.2m(3pcs)  | W2.15×L4.5×H1.2m(3pcs)  |
Total power  | 8.92kw  | 8.92kw  | 10.52kw  |
Worktable turning speed  | 0-3.5r/min  | 0-3.0r/min  | 0-2.0r/min  |
Blade length  | 8940mm  | 10000mm  | 10240mm  |
Worktable diameter  | 6m  | 7m  | 10.5m  |
Cutting thickness  | 2-150mm  | ||
Machine weight  | 3300kg  | 3500kg  | 4500kg  |
Machine external size  | L6900×W6000×H2400m  | L7900×W7000×H2400m  | L11500×W6000×H2400m  |
Remark: The above only for reference. All the data is subjected to sold production.

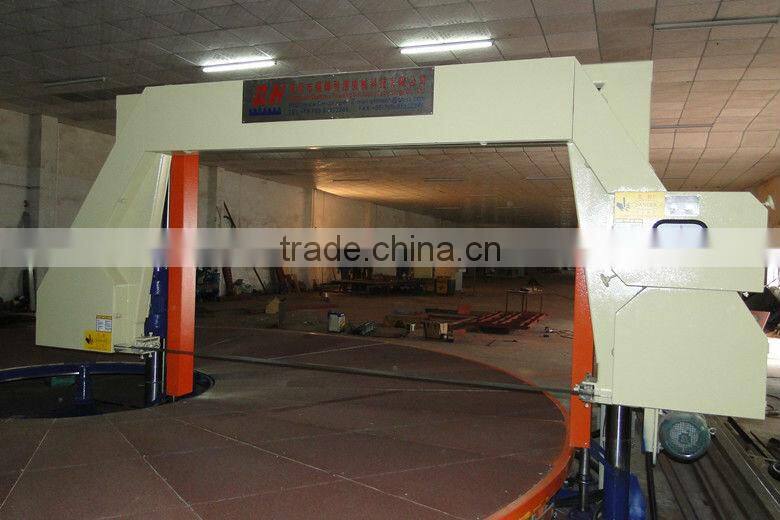

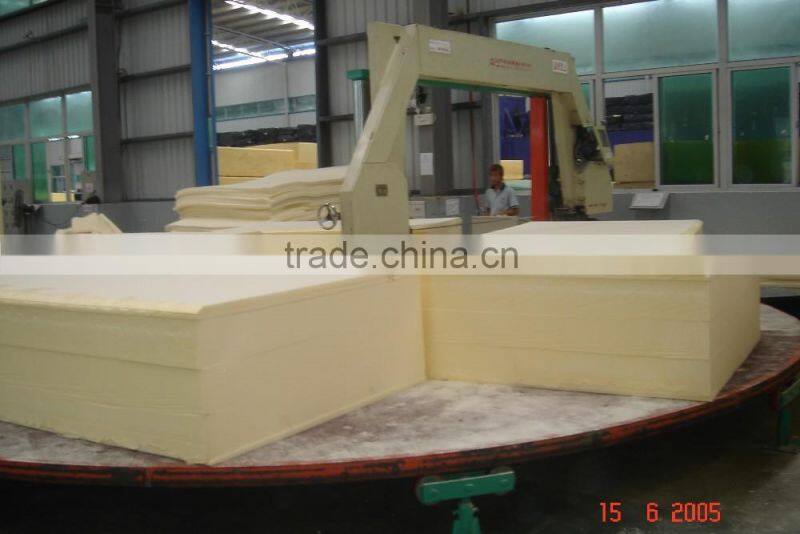

Products Show
Our Service

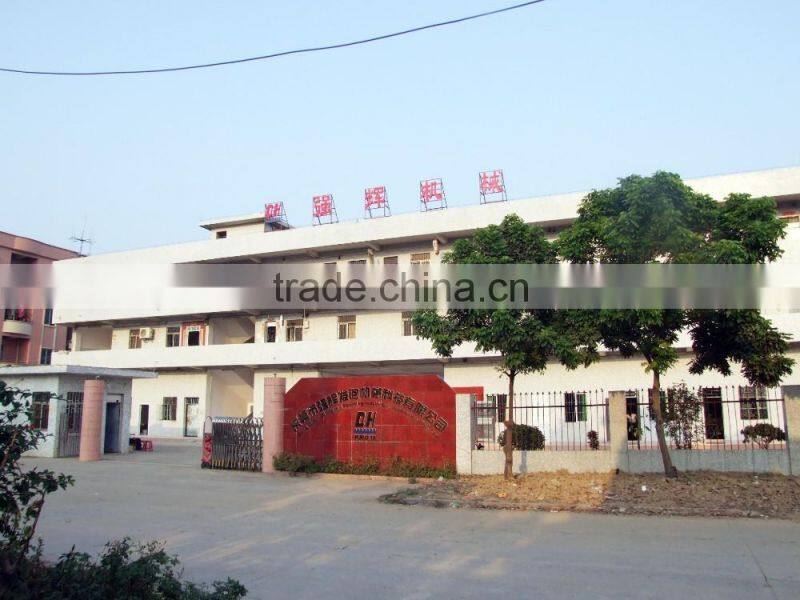

Our Company
Packing & Delivery
Carrousel Horizontal Sponge Cutting Machine if customer needed we will help to send engineer to help to install this machine and teach how to operate and maintance the machines.
You are warmly welcome come and visit our factor.
