Product Details
| Place of Origin | Shandong, China | Brand Name | HLD | |
| Model Number | 3kw | Type | Wind Power Generator |
Product Description

1. 3kw fixed pitch wind turbine advantage
Fixed pitch wind turbine 3kw including: 3 pcs FRB blades, nose cone, hub, generator with manual brake parts, nacelle, tail rod, tail vane.
- Low/normal average wind speed wind turbine
- Fixed pitch,auto yaw, auto brake, manual brake protection system.
- Low cost, reliable and steady working system
- Low start up wind speed 3m/s
- Low noise level, provide noise drawing chart
- High efficiency 3 phrase AC permanent magnet generator
- Vacuum mould blades with protection film, long worklife span in sand wind condition
- Wind turbine with antiseptic treatment, hot-galvanize tower. It can be work in sea side, island, lake...
- tilting up tower is easy to installation for sample order; Hydraulic tower is easy to install for bulk order. Guy wire tower cost is lower and easy to delivery.
- We provide completely on grid system kit, off grid system kit, wind solar hybrid on/off grid system kit. Grid power and diesel generator as backup power
2. FD4-3kw wind turbine technical data:
Fixed pitch wind turbine Fd4-3kw, lower cost, easy installation and maintans, reliable working system. Speed limited controller, safety and reliable in rich wind speed condition.
Pitch controlled wind turbine 3kw , advanced design, speed variable wind turbine;
On/off grid working system
high efficiency generator
Yaw system
provid system design, system design advise and relating technical support.
3kw wind turbine normal data:
| Model: | FD4-3000w |
| Rotor Diameter: | 4m |
| Number of Blades: | 3pcs |
| Material of Blades: | Fibre glass expoxy |
| Cut-in wind speed: | 2m/s |
| Working wind speed: | 3-30m/s |
| Survival wind speed: | 40m/s |
| Rated wind speed: | 10m/s |
| Rated rotate speed: | 300r/min |
| Rated output power: | 3kw |
| Max output power: | 4kw |
| Type of tower: | Independence tower,guy wire tower, tilting up tower (optional) |
| Type of generator: | Permanent-magnet 3 phrase AC (enlarger model) |
| Speed regulation method: | Yaw+handly brake system |
| Working voltage: | 48v 96v 120v 240v,300v,360v,380v or made according to your request! |
| Operating Temperature: | -40℃---+60℃ |
| Tower height: | 8m-25m (optional) |
| Wind turbine main body weight: | 150kg |
| Measurement(CBM): | 0.9cbm |
| Life span: | 20 years; |
| Warranty: | 3 years |
3kw wind turbine output power data:
| Rated Power (w) | Wind speed | Working voltage(V) | Power(W) |
| 3kw | 3 | 103 | 85 |
| 4 | 145 | 126 | |
| 5 | 190 | 300 | |
| 6 | 231 | 500 | |
| 7 | 273 | 800 | |
| 8 | 304 | 1200 | |
| 9 | 346 | 1670 | |
| 10 | 370 | 2200 | |
| 11 | 382 | 2650 | |
| 12 | 385 | 3000 | |
| 13 | 391 | 3400 | |
| 14 | 400 | 3700 | |
| 15 | 403 | 4000 | |
| 16 | 406 | 3800 | |
| 17 | 409 | 3600 | |
| 18 | 412 | 3300 | |
| 19 | 415 | 3000 | |
| 20 | 420 | 2700 |
3. Production Capacity: 200-300 sets per month
4. Main market: US, Canada, Australia, New Zealand, European...
5. Testing Machinery:
Generator platform test
Blade balance adjustment instrument
Blade weight center test platform
Turbine turn-to-turn test system
......
CE, ISO,IEC approved
6. Application
Home, farm, signal station, island, garden...
7.Blades,pma
Vacuum mould blades with protection film
C.W blades, low noise level, high efficiency
FRB material, 3 pcs blades per set
Adjust blades rotor balance before delivery

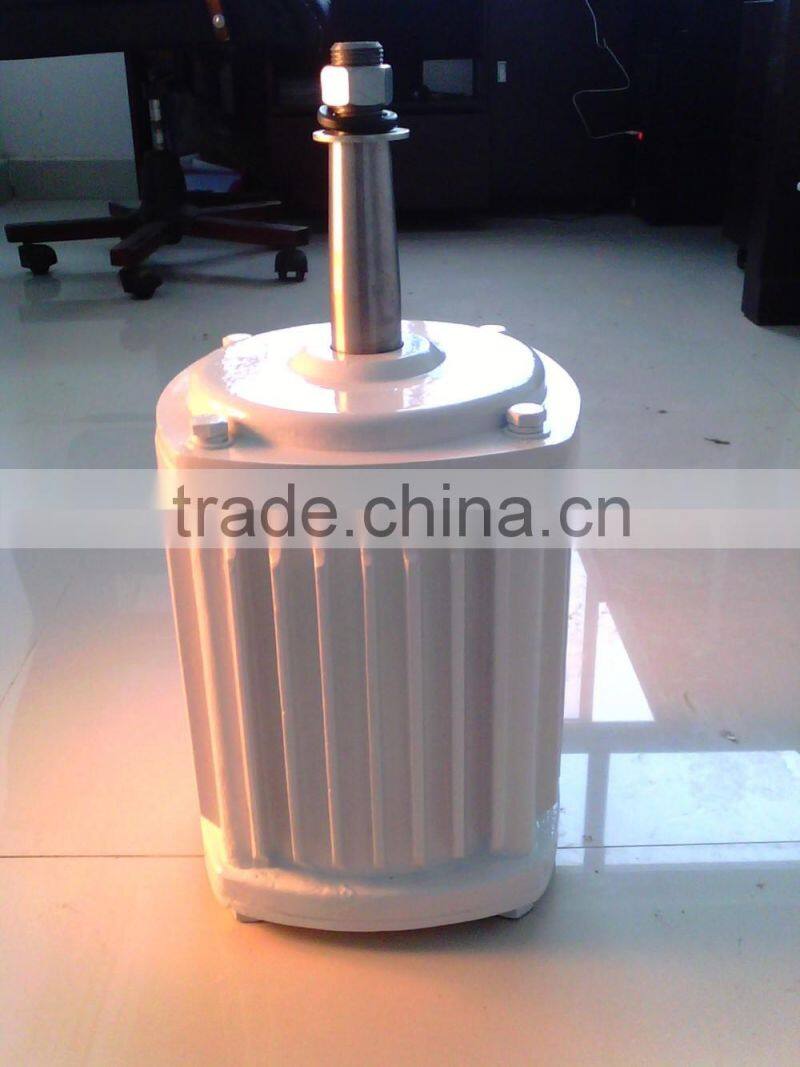

Rare earth material, high efficiency, low start up torque 2.67N.m
Iron cast generator housing
8. Output power curve
9. Working system
On grid working system:
3kw wind turbine with tower + PWM on grid controller with dump load + 3k/5k grid tie inverter;
Off grid working system:
3kw wind turbine with tower + PWM off grid controller with dump load+ battey group + 5k pure sine wave inverter
Type | 3KW |
Wind turbine rated power | 3KW |
Wind turbine Max. power | 6KW |
Function | Rectifier, control, dc output |
Display mode | LCD |
Display content | Wind turbine voltage, wind turbine current, wind turbine power, DC output voltage, output current, output power |
PWM constant voltage | ≥380dc |
3-phase dump load voltage of the wind turbine | 410±5Vdc |
Time-lapse of the wind turbine 3-phase dump load | 12-20 min |
Low-voltage | ≤200Vdc |
PWM dump load fuse | 10A |
Fuse of DC output | 16A |
Work environment temperature | -30-60°C |
Relative humidity | <90% No condensation |
Noise (1m) | <40dB |
Degree of protection | IP20(Indoor) |
Cooling method | Forced air cooling |
*Communication interface (optional) | RS485/USB/GPRS/Ethernet |
*Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C |
Size of the controller | 575*430*320 mm |
Weight of the controller | 20Kg |
Size of the dump load | 495*460*320 mm |
Weight of the dump load | 17Kg |

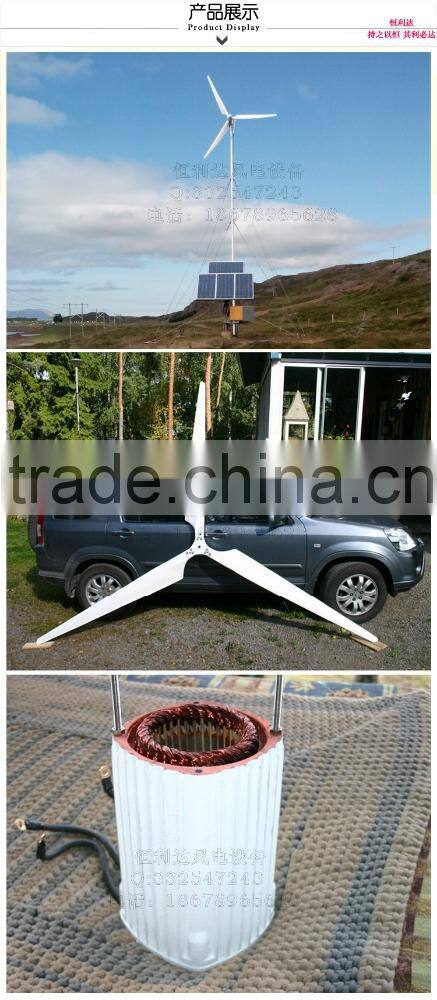

wind solar hybrid system (on grid/off grid)

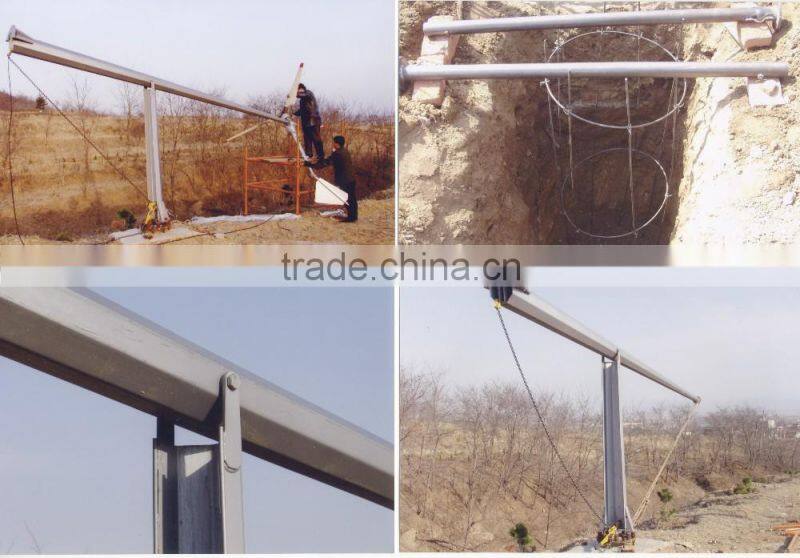

10. Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.
10. Matched controller
Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phrase/ 3 phrase pure sine wave inverter.
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.

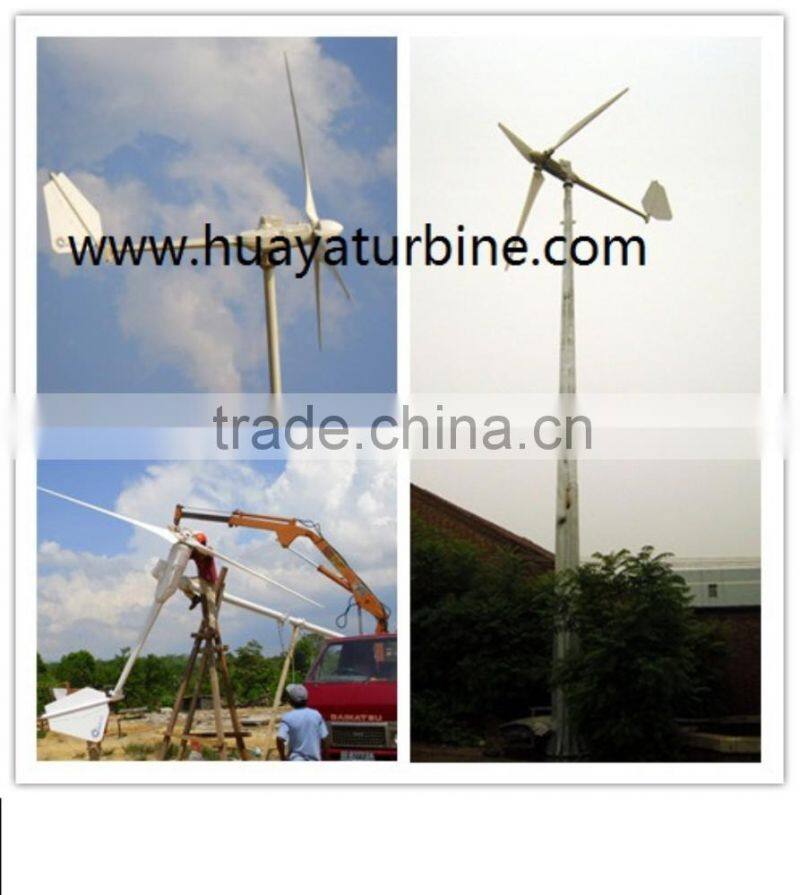

12. Assembly

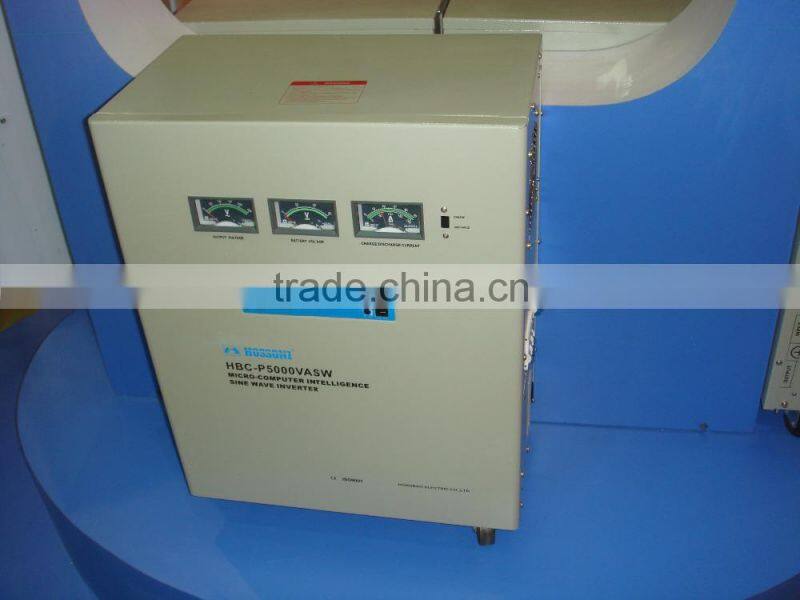

13. Matched grid tie inverter 3k/4k/5k, pure sine wave inverter single phrase
Inverter output voltage, frequency can be manufactured according to different countries request.

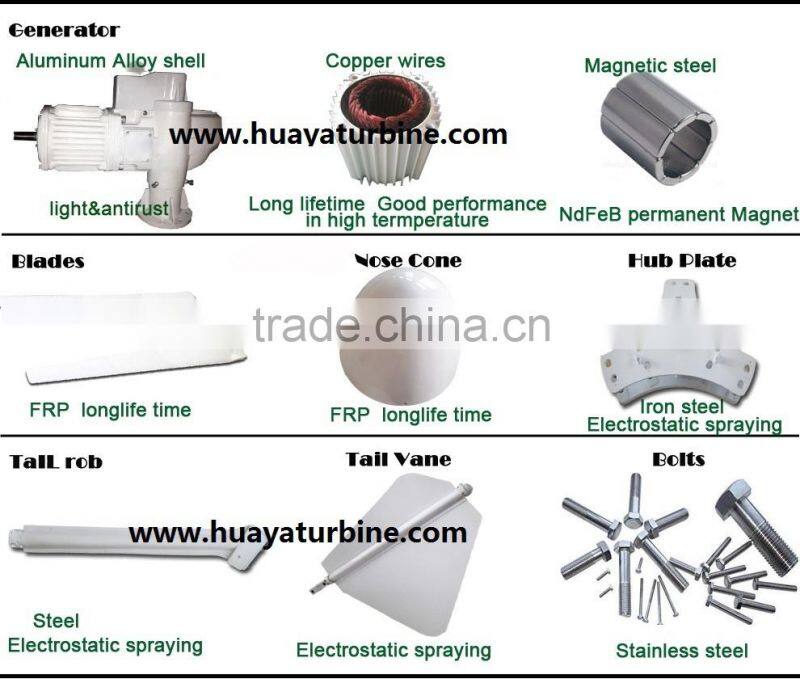

14 Wind turbine freatures
| 1.) Blade: Manufacturing according to the airscrew structure principle and techniques. |
| Optimal wide TSR & High L/D ratio. With protection film on the edge, long work life. |
| Select blade type by wind tunnel testing. |
| With high efficiency, low noise. |
2. ) Blades rotor: Hub adopts casting molding; Blades rotor and generator adopt universal connection, directly driven. |
| Connection is reliable, durable, smooth operation without vibration. |
| 3.) Generator |
| Rotor: Nd-Fe-B permanent magnet. Prefabricated tangential magnetic circuit rotor; High magnetic flux density, small |
| cubage, good manufacturing process and high performance. |
| Adopt SKF, NSK bearing. |
| Close transmission slip ring, the cable will not enlace. |
| 4.) Speed regulation: yaw. Simple, reliable and safety. |
| 5.) Anti-corrosion treatment: All the outside parts are designed to anti-salt, anti-fog, anti-atmospheric |
| anti-sandstorm corrosion design. |
6.) Tower: guy wire tower, tilting up tower, standalone tower, hydraulic tower… It can be designed according to your request. |
| 7.) 300w-2.5kw auto braking; 3kw-30kw auto braking system and manual braking system. |
| 8. ) Wind turbine design principle is simple, safety, reliable, maintenance free. |
| 9.) Provide low wind place, rich wind place solution. Wind turbine OEM service, customized service. |

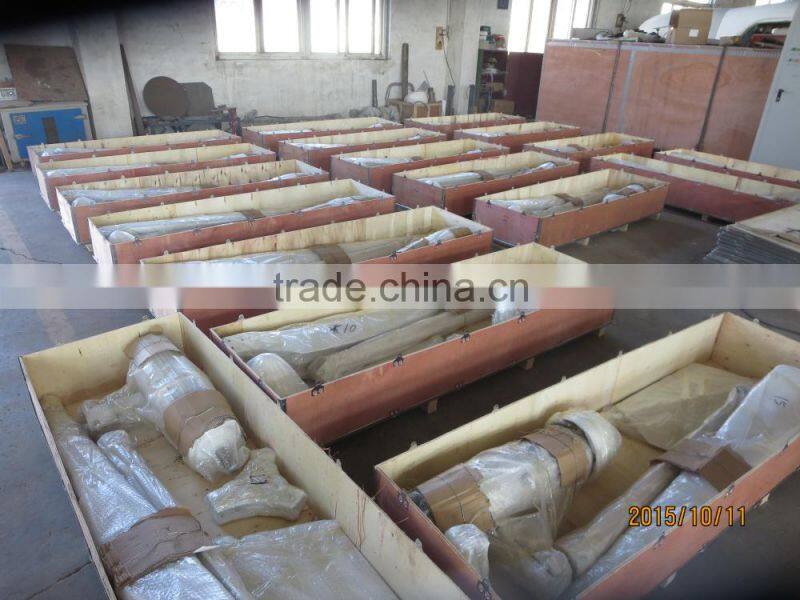

Normally we delivery the products by sea. If you need us check the delivery cost, pls let us know the destination port to you. Then we will check the delivery cost accordingly.
| 3kw wind turbine main body packing list | ||||||
| Item | Description | Packing size(m) | N.W(KG) | G.W(kg) | Packing material | |
| Inside size(m) | Outside size(m) | |||||
| 1 | Generator and rotor body | 1.1*0.7*0.35 | 1.16*0.79*0.47 | 190 | 225 | plywood box |
| 2 | Blades | 2*0.35*0.26 | 2.06*0.44*0.38 | 40 | 60 | plywood box |
| Tail rod | ||||||
| 3 | Tail board | 1.22*0.98*0.1 | 1.28*1.07*0.22 | 35 | 52 | plywood box |
| 4 | hub | 0.4*0.4*0.52 | 0.46*0.49*0.64 | 25 | 38 | plywood box |
| nose cone | ||||||
| TTL: | 1.22 | 290 | 375 | |||
Controller: 520*510*290mm 20.3KG; Unload box: 700*530*460 28.5 KG
Inverter:52*34.5*74.5CM 66KG
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
1kw, 2kw, 3kw, 5kw Vertical axis wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.

1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
Contact Us
- Qingdao HenryD Wind Power Equipment Co., Ltd.
- Contact nameAron wang Chat Now
- Phone86-532-82903820
- AddressNo.803 Jin Shui Road, Qingdao, Shandong
Product Categories
| Battery, inverter, controller,tower | Fixed pitch wind turbine | New Products |
New Products
-
Wind Energy Generators 30kw Wind Power Generator on Grid System, Windmill Generator FD12-30kw
-
1kw Wind Power Generator Hybrid 1kw Solar Power System, 2kw Wind Solar Hybrid System/solar Wind System
-
Wind Turbine 2kw Wind Power Generator, Aero-generator 2000w Max Output 3kw
-
HLD! Horizontal Axis Wind Generators 3KW With Wind Turbine Price for 5kw Wind Solar Hybrid System
-
2500w! 2500w Wind Turbine Generator Type Wind Power Generator, Fixed Pitch/horizontal Axis/yawing Wind Generators
-
AEROGENERADOR 10kw Wind Power Generator, Wind Electric Generator 380v on Grid System Kit, Wind Generator Kit
-
HOT! 4kw 5kw 6kw Wind Solar Hybrid System With 3kw Wind Generator for Home Use 24v 48v Quality Choice
-
HOT SALES! 5000w Wind Turbine Generator/wind Generator Price,windmill Generator 5000w Wind Power HAWT
-
HOT! 2500w Wind Turbine Wind Generators for Home, Horizontal Axis Home Wind Turbines With On/off Grid System
-
X-max Promo! 10kw Wind Generator Horizontal Axis Wind Turbine Generator 10kw
-
CHINA Farm Wind Generator 50kw Wind Turbine With Permanent Magnet Alternator 60rpm 23m Rotor Diameter
-
1kw 2kw 3kw 5kw 10kw 20kw 30kw Wind Power Generator Blades, Small Wind Turbine Blades,wind Generator Aluminum Blades
-
SALES! 2KW Wind Energy Generator/wind Turbine Generator 380v on Grid System, HAWT
-
Horizontal Axis Wind Power Generator 6kw 120v 240v 380v, Aerogenerator 6kw Wind Turbine
-
ROOFTOP! 1kw Small Wind Turbine, 1kw Wind Generator Permanent Magnet Generator 3 Phase AC , 2.8m Blades Rotor, 9m/s
-
15kw Wind Power System, Residential/home Wind Turbine 15kw Wind Power Generation
-
Wind Generator Manufacture: 2000w/2kw Wind Power Generator With Windmill Generator for Home Wind Power System
-
3000w Wind Turbine Price, Wind Power System 3kw 24v 48v 96v 120v 240v 380v, Small Wind Turbine 3kw
-
HOT! 1kw 2kw 3kw 5kw 10kw 20kw Wind Turbine, off Grid/on Grid Wind Generator,24v-240v Wind Generator Price
-
Trade Assurance! 10kw Wind Generators Wind Turbine Generator Price, 10kw Wind Turbine Manufacture, Wind Electric Generator Pma
-
POP! 2KW Wind Turbine With Permanent Magnet Generator for Home Type Windmill Generator Grid Tie/off Grid System
-
High Return! 1500w Home Wind Generator 1.5kw Horizontal Rooftop Wind Energy System, Permanent Magnet Free Energy Generator
-
Factory Price! FD3.2-1.5kw Small Wind Turbine for Sales, 1500w Mini Wind Power Generator,Horizontal Type Wind Generator 1.5kw pm
-
MANUFACTURE! 5kw Wind Turbine Price Small Wind Generators for Home
Popular Searches
- wind generator
- permanent magnet generator
- wind turbine generator
- vertical wind turbine generator
- wind power generator
- water turbine generator
- horizontal wind generator
- turbine
- alternative energy
- hydro turbine generator
- windmill generator
- turbine power generator
- turbine generator set
- permanent magnet alternator
- wind turbine
- wind power
- turbine generator
- low rpm generator alternator
- energy generator
- free energy permanent magnet generator
- free energy magnet generator
- magnet generator
- hydro turbine
- neodymium magnet generator
- horizontal engine
- steam turbine
- hydro power
- pmg
- alternative energy generator
- wind mill
Recommended Products
- Hydraulic Disc Brake
- Wind Power Using Duplex Stainless Steel PSA Fall Protection Anchor
- 20KW MOBILE DC Charging Pile User Manual for Car Charging Station
- 40KW MOBILE DC Charging Pile User Manual for Car Charging Station
- Hydraulic Lockpin for Wind Turbine
- 120KW DC Fast EV Charger With Two Connectors for Car Charging Station
- 120KW DC Fast EV Charger With Two Connectors for Car Charging Station
- Fast Electric Car Charging Station ev Charger Pile DC 40kw 5m Cable 1 MOQ to Deliver in Stock
- Full Automatic Solar Panel Production Line Equipment
- 500MW Solar Panel Production Line Equipment
- 450MW Solar Panel Production Assembly Line Equipment
- Full Automatic Solar Module Production Line Equipment
Find Similar Products By Category
- Industrial Equipment & Components > Power & Generating Sets > Wind Generator
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now-
Aron wang
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile






FACTORY! Low Wind Speed 3kw Wind Generator, Island Wind Power Generator 3kw 48v 360
NEW! 1500W Wind Turbine Generator Kit 3 Phase Permanent Magnet Generator, Horizontal Type Wind Turbine Electric Generator
PROMO! 1.5kw Wind Power Generation, Residential Fixed Pitch Small Wind Turbine 1.5kw 24v 48v 240v 360v
3kw/3000w Wind Power Equipment, Wind Electric Generator 3000w Wind Energy System US$900/set
PROMO! CE and IEC Confirmed Commercial FD6-5KW Wind Generator for Home With Eolic Generator
Factory! Low Noise Low Price 30kw Wind Turbine With 12m/14m Blades Rotor, 500v on Grid Wind Power System Kit












Wind Energy Generators 30kw Wind Power Generator on Grid System, Windmill Generator FD12-30kw
1kw Wind Power Generator Hybrid 1kw Solar Power System, 2kw Wind Solar Hybrid System/solar Wind System
Wind Turbine 2kw Wind Power Generator, Aero-generator 2000w Max Output 3kw
2500w! 2500w Wind Turbine Generator Type Wind Power Generator, Fixed Pitch/horizontal Axis/yawing Wind Generators
AEROGENERADOR 10kw Wind Power Generator, Wind Electric Generator 380v on Grid System Kit, Wind Generator Kit
HOT! 4kw 5kw 6kw Wind Solar Hybrid System With 3kw Wind Generator for Home Use 24v 48v Quality Choice
HOT SALES! 5000w Wind Turbine Generator/wind Generator Price,windmill Generator 5000w Wind Power HAWT
X-max Promo! 10kw Wind Generator Horizontal Axis Wind Turbine Generator 10kw
CHINA Farm Wind Generator 50kw Wind Turbine With Permanent Magnet Alternator 60rpm 23m Rotor Diameter
1kw 2kw 3kw 5kw 10kw 20kw 30kw Wind Power Generator Blades, Small Wind Turbine Blades,wind Generator Aluminum Blades
SALES! 2KW Wind Energy Generator/wind Turbine Generator 380v on Grid System, HAWT
Horizontal Axis Wind Power Generator 6kw 120v 240v 380v, Aerogenerator 6kw Wind Turbine
15kw Wind Power System, Residential/home Wind Turbine 15kw Wind Power Generation
Wind Generator Manufacture: 2000w/2kw Wind Power Generator With Windmill Generator for Home Wind Power System
3000w Wind Turbine Price, Wind Power System 3kw 24v 48v 96v 120v 240v 380v, Small Wind Turbine 3kw
Trade Assurance! 10kw Wind Generators Wind Turbine Generator Price, 10kw Wind Turbine Manufacture, Wind Electric Generator Pma
POP! 2KW Wind Turbine With Permanent Magnet Generator for Home Type Windmill Generator Grid Tie/off Grid System
High Return! 1500w Home Wind Generator 1.5kw Horizontal Rooftop Wind Energy System, Permanent Magnet Free Energy Generator
Factory Price! FD3.2-1.5kw Small Wind Turbine for Sales, 1500w Mini Wind Power Generator,Horizontal Type Wind Generator 1.5kw pm
MANUFACTURE! 5kw Wind Turbine Price Small Wind Generators for Home
