15kw Wind Power System, Residential/home Wind Turbine 15kw Wind Power Generation
- Qingdao
- T/T Credit Card
You May Like
-
Wind Generator Manufacture: 2000w/2kw Wind Power Generator With Windmill Generator for Home Wind Power System
-
3000w Wind Turbine Price, Wind Power System 3kw 24v 48v 96v 120v 240v 380v, Small Wind Turbine 3kw
-
HOT! 1kw 2kw 3kw 5kw 10kw 20kw Wind Turbine, off Grid/on Grid Wind Generator,24v-240v Wind Generator Price
-
Trade Assurance! 10kw Wind Generators Wind Turbine Generator Price, 10kw Wind Turbine Manufacture, Wind Electric Generator Pma
-
POP! 2KW Wind Turbine With Permanent Magnet Generator for Home Type Windmill Generator Grid Tie/off Grid System
-
High Return! 1500w Home Wind Generator 1.5kw Horizontal Rooftop Wind Energy System, Permanent Magnet Free Energy Generator
Product Details
| Place of Origin | China | Brand Name | HLD | |
| Model Number | 15kw | Type | Wind Power Generator |
Product Description
15kw wind power system, residential/home wind turbine 15kw wind power generation
15KW WIND TURBINE MAIN BODY: US$7297.00/set.
( Including 3 pcs blades, nose cone, hub, generator, manual brake system, nacelle, tail rod, tail vane.)
15kw PWM charge controller with dump load: US$2000.00/set
20k pure sine wave inverter, DC240v/AC240v 60hz: US$4330.00/set
15m stand alone tower with accessory: US$5700.00/set
User can take whole system from us, also can take any part of the system from us.
1. 15kw Wind turbine model selection
Horizontal axis, directly drive, fixed pitch, auto furling wind turbine, FD8-15kw, FD10-15kw.
Permanent magnet generator, 3 phase AC
3 pcs FRB blades, high efficiency, low noise
FD10-15kw wind turbine work in low average wind speed place lower than 6.5m/s;
FD8-15kw wind turbine work in normal average wind speed place 6.5m/s-8m/s.
New designed 15kw wind turbine, pitch controlled, auto eletric controlled by controller, tailless new model work in rich wind speed place.
2. 15kw Wind turbine spec
| Model: | FD10-15kw |
| Rotor Diameter: | 10m |
| Number of Blades: | 3pcs |
| Material of Blades: | Reinforce FRB |
| Cut-in wind speed: | 3m/s |
| Working wind speed: | 4-30m/s |
| Survival wind speed: | 50m/s |
| Rated wind speed: | 10m/s |
| Rated rotate speed: | 190r/min |
| Rated output power: | 15kw |
| Max output power: | 20kw |
| Type of tower: | stand alone tower |
| Type of generator: | Permanent-magnet 3 phrase AC |
| Speed regulation method: | Yaw |
| Stop method: | Brake by hand drag |
| Working voltage: | 240Vdc-600Vdc, can be special request |
| Tower height: | 15m-30m stand alone tower |
| Wind turbine main body weight: | 1200kg |
| Life span: | 15-20 years; |
| Warranty: | 3 years |
| Model: | FD8-15kw |
| Rotor Diameter: | 8m |
| Number of Blades: | 3pcs |
| Material of Blades: | Fibre glass expoxy |
| Cut-in wind speed: | 3m/s |
| Working wind speed: | 4-30m/s |
| Survival wind speed: | 50m/s |
| Rated wind speed: | 12m/s |
| Rated rotate speed: | 200r/min |
| Rated output power: | 15kw |
| Max output power: | 20kw |
| Type of tower: | Manganese steel independence tower |
| Type of generator: | Permanent-magnet 3 phrase AC |
| Speed regulation method: | Yaw |
| Stop method: | Brake by hand drag |
| Working voltage: | 240v-600Vdc, can be special request |
| Tower height: | 15m |
| Wind turbine main body weight: | 1000kg |
| Life span: | 15-20 years; |
| Warranty: | 2 years (after installation) |
__________________________________________
Note:
1. Tower type, tower height can be special requested;
2. working voltage can be special requested;
3.Ce,ccc,iso approved;
Blades, hub for the wind turbine
Wind turbine assembly
3. Output power data
4. Wind turbine freatures
| 1. Blade: Manufacturing according to the airscrew structure principle and techniques. |
| Optimal wide TSR & High L/D ratio. With protection film on the edge, long work life. |
| Select blade type by wind tunnel testing. |
| With high efficiency, low noise. |
2. Blades rotor: Hub adopts casting molding; Blades rotor and generator adopt universal connection, directly driven. |
| Connection is reliable, durable, smooth operation without vibration. |

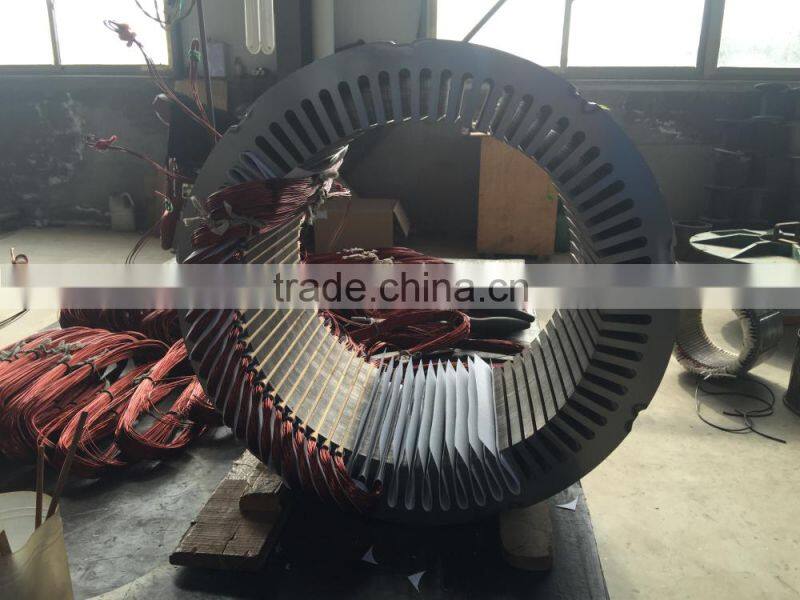

| 3. Generator |
Rotor: Nd-Fe-B permanent magnet. Prefabricated tangential magnetic circuit rotor; High magnetic flux density, small |
| cubage, good manufacturing process and high performance. |
| Adopt SKF, NSK bearing. |
| Close transmission slip ring, the cable will not enlace. |
| 4. Speed regulation: yaw. Simple, reliable and safety. |
5. Anti-corrosion treatment: All the outside parts are designed to anti-salt, anti-fog, anti-atmospheric |
| anti-sandstorm corrosion design. |
6.Tower: guy wire tower, tilting up tower, standalone tower, hydraulic tower… It can be designed according to your request. |
| 7. 300w-2.5kw auto braking; 3kw-30kw auto braking system and manual braking system. |
| 8. Wind turbine design principle is simple, safety, reliable, maintenance free. |
| 9. Provide low wind place, rich wind place solution. Wind turbine OEM service. |
5. Working system
Wind turbine on grid system: wind turbine with tower + PWM on grid controller with dump load + grid tie inverter
Wind turbine off grid working system:
wind turbine with tower + PWM off grid charge controller with dump + battery group + inverter;
Wind solar hybrid off grid system, diesel or grid power as backup power
6. 15kw fixed pitch wind turbine advantage
Fixed pitch wind turbine including: 3 pcs blades, nose cone, hub, generator with manual brake part, nacelle, tail rod, tail vane
- Low/normal average wind speed wind turbine
- Fixed pitch,auto yaw, auto brake, manual brake protection system.
- Low cost, reliable and steady working system
- Low start up wind speed 3m/s, low rated wind speed 10m/s;(FD8-15kw)
- Low noise level, provide noise drawing chart
- High efficiency 3 phase AC permanent magnet generator
- Vacuum mould blades with protection film, long worklife span in sand wind condition
- Wind turbine with antiseptic treatment, hot-galvanize tower. It can be work in sea side, island, lake...
- stand alone tower is easy to installation for sample order; Hydraulic tower is easy to install for bulk order.
- We provide completely on grid system kit
Home, farm, signal station, island, garden...

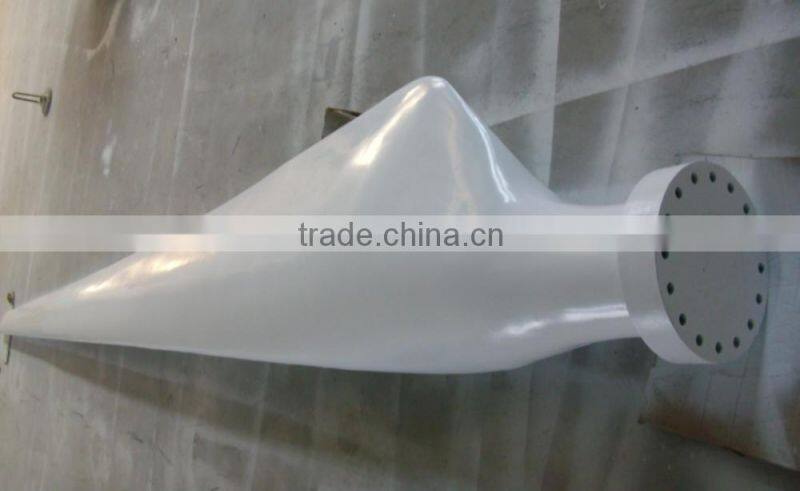

8. Blades,pma
Vacuum mould blades with protection film
C.W blades, low noise level, high efficiency
FRB material, 3 pcs blades per set
Adjust blades rotor balance before delivery
Iron cast housing made by losting mould. Beautiful and antirust. Rare earth material, high efficiency and low start up torque
9. Tower type: stand lone tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.

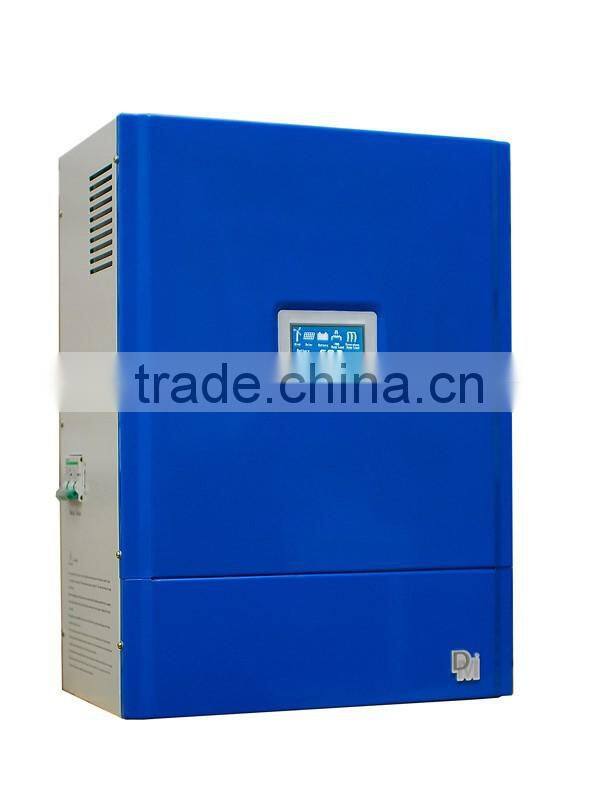

10. Matched controller
20KW PWM on grid controller with dump load normal spec
Type | 20KW |
Wind turbine rated power | 20KW |
Wind turbine Max. power | 40KW |
Function | Rectifier, control, dc output |
Display mode | LCD |
Display content | Wind turbine voltage, wind turbine current, wind turbine power, DC output voltage, output current, output power |
PWM constant voltage | ≥480dc |
3-phase dump load voltage 1of the wind turbine | 560±5Vdc |
3-phase dump load voltage 2 of the wind turbine | 570±5Vdc |
Time-lapse of the wind turbine 3-phase dump load | 12-20 min |
Low-voltage | ≤200Vdc |
PWM dump load fuse | 63A |
DC output fuse | 80A |
Work environment temperature | -30-60°C |
Relative humidity | <90% No condensation |
Noise (1m) | <40dB |
Degree of protection | IP20(Indoor) |
Cooling method | Forced air cooling |
*Communication interface (optional) | RS485/USB/GPRS/Ethernet |
*Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C |
Size of the controller | 725*570*310 mm |
Weight of the controller | 32Kg |
Size of the dump load | 810*580*950 mm |
Weight of the dump load | 90Kg |

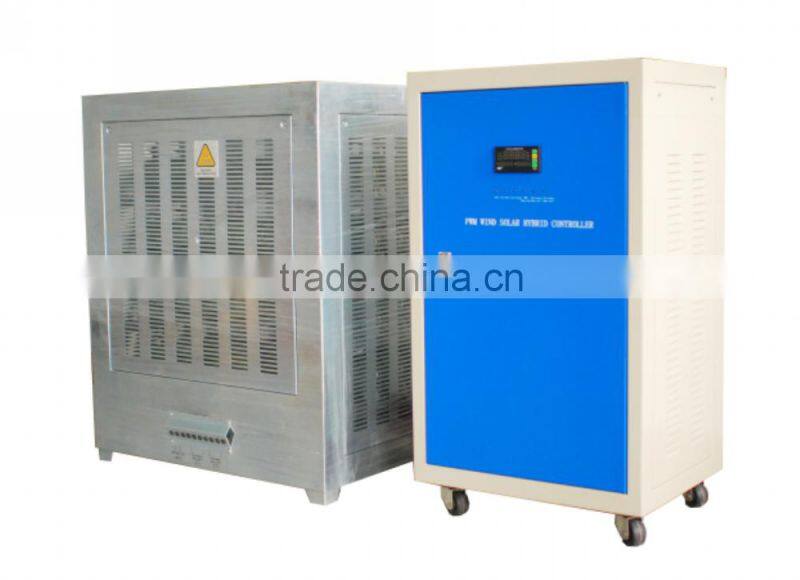

20kw PWM off grid charge controller with dump load spec:
Type | 20KW-360Vdc |
Wind turbine rated power | 20KW |
Wind turbine max. power | 40KW |
Solar panel power | 6KW |
Battery | 360Vdc |
Function | Rectifier,charge, control |
Display mode | LCD |
Display content | Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current |
PWM constant pressure voltage | >420Vdc |
3-phase load voltage of the wind turbine | 435±5Vdc |
Recovery charging voltage of the wind turbine | 405±5Vdc |
Solar controller stop charging voltage | 435±5Vdc |
Solar restore charge voltage | 405±5Vdc |
Low-voltage of the battery | 300±5Vdc |
Self-provided connecting wire of the battery | >12mm² |
PWM fuse | 40A |
Solar fuse | 20A |
Charging fuse | 80A |
Work environment temperature | -30-60°C |
Relative humidity | <90% No condensation |
Noise (1m) | <40dB |
Degree of protection | IP20(Indoor) |
Cooling method | Forced air cooling |
*Communication interface (optional) | RS485/USB/GPRS/Ethernet |
*Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C |
Size of the controller | 560*460*950 mm |
Weight of the controller | 53 Kg |
Size of the load | 810*580*980mm |
Weight of the load | 77Kg |
Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phase/ 3 phase pure sine wave inverter.
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.
11. Matched (3 phase )grid tie inverter 15k*1 sets. pure sine wave inverter single phase DC240v/AC240v 60hz or 3 phase.
| Model | BNWG-20K |
| Rated AC output power | 20kw |
| Recommending wind turbine power | 24kw |
| Insulate mode | Low frequency transformer |
| Max. open circuit voltage | 780v |
| MPPT range | 200-780v |
| Max. input current | 50A |
| Can access array of parallel group | 10 group |
| Connecting mode of battery board | connection terminals |
| Max. efficiency | 95% |
| Europe efficiency | 94% |
| Operating range utility voltage(three phase) | 320-440AC |
| Operating range utility frequency | 50HZ±2% |
| Total Harmonic Distortion(THD) | <3%(rated power) |
| Power factor | >0.99 |
| Zero power consumption at night | <10W |
| Communication Interfaces | RS485 |
| Electrical insulation properties | 1500Wc,1 minute |
| Operation surroundings Temperature | -25~+60℃ |
| Operation surroundings Humidity | 0~100% |
| Protection | Protection for input connecting contrary, input lack of voltage, output over load, output short circuit and over heat. |
| cooling mode | windy |
| noisy | <50dB |
| waterproof and Dustproof Class | IP20(indoor),IP65(outdoor) |
| Size(L×W×H) mm | 800*600*1800 |
| Weight(KG) | 400 |
Inverter output voltage, frequency can be manufactured according to different countries request.

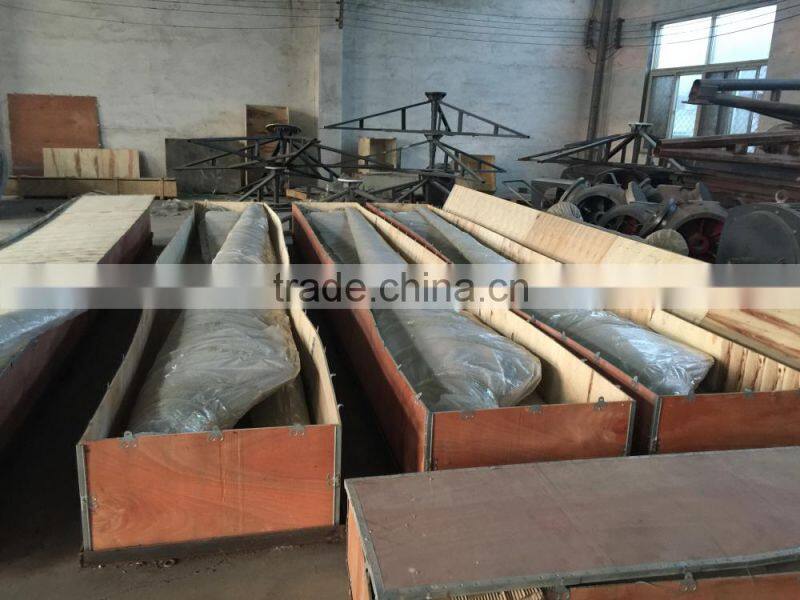

Wind turbine main body, blades, pma, tail, controller, inverter: plywood case
Tower: soft packages
Delivery by sea, by air
FOB/C&F, CIF
500w-3kw wind turbine : 3-5 working days after payment
5kw-30kw wind turbine: 7-10 working days after payment
50kw-60kw 15-20 days after payment
Tower needs about 10 working days after payment
| 15kw WTG packing list | |||||
| Item | Description | Packing | G.W(Kg) | ||
| Packing method | outside size(m) | ||||
| 1 | Hub,nose cone and under cover | plywood box | 0.55 | 150 | |
| 2 | Generator/rotor body | plywood box | 1.77 | 890 | |
| 3 | Blades | plywood box | 2.09 | 390 | |
| 4 | Tail vane | Tail vane plate | plywood box | 0.85 | 255 |
| Tail vane frame | |||||
| Giant-shaped steel & others | |||||
| 5 | Tail rod | soft package | 0.25 | 75 | |
| 6. | On grid controller | carton | 0.10 | 30 | |
| grid tie inverter | plywood case | 0.15 | 40 | ||
| 7. | Unload box | carton | 0.46 | 77 | |
| TTL: | 6.23cbm | 1907 | |||
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
Contact Us
- Qingdao HenryD Wind Power Equipment Co., Ltd.
- Contact nameAron wang Chat Now
- Phone86-532-82903820
- AddressNo.803 Jin Shui Road, Qingdao, Shandong
Product Categories
| Battery, inverter, controller,tower | Fixed pitch wind turbine | New Products |
New Products
-
Factory Price! FD3.2-1.5kw Small Wind Turbine for Sales, 1500w Mini Wind Power Generator,Horizontal Type Wind Generator 1.5kw pm
-
MANUFACTURE! 5kw Wind Turbine Price Small Wind Generators for Home
-
HYBRID! 5kw Wind Turbine + 2kw/3kw/5kw Solar Wind Power Hybrid System, Home Wind Solar Hybrid Power System 7kw 8kw 10kw Quality Choice
-
2000w Small Wind Turbine Power Generator Permanent Magnet Generator 2kw Wind Generator Low Rpm
-
Reliable Free Energy Power Supply System, Solar and Wind Power System for Home 5kw Wind Generator
-
2015! Horizontal Axis Wind Power Generator 6kw Wind Electric Generator, Fixed Pitch Wind Turbine 6kw
-
BEST! 500w Wind Generator, Wind Generation Wind Turbine 500w 12v 24v
-
HOME, Farm Used Wind Mill Generator 20kw Windmill Generator
-
Horizontal Type 20KW Wind Turbine Direct Drive Asynchronous 3 Phase PM Generator
-
HENRYD! 6kw Wind Turbine Generator With Windmill Generator for 120v 240v 380v Wind Power Generator System
-
2015! 1000w 2000w Wind Turbine Generator for Home, Residential Wind Turbine With SS Bolts
-
PROMO! 48V Wind Solar Power Generation 5KW Hybrid Solar Wind Power System, Horizontal Axis 3kw Wind Turbine, Mono Solar 2kw
-
Yawing Wind Power 5kw Permanent Magnet Generator, Wind Generation, Wind Power Machine 5kw
-
20KW! 20KW Wind Turbine Wind Generator, Horizontal Axis Wind Power Generator 20kw Aerogenerator, Eolic Generator Windmill
-
30KW!auto Furling/electric Furling Wind Turbine 30kw Wind Generator/aerogenerator/wind Power Generation 30kw on Grid System
-
HOT SYSTEM! Wind Solar Hybrid System 500w-30kw With Wind Generator Set, Solar Panel for Home,farm,island
-
BEST PRICE! 10KW Wind Turbine Low Rpm Permanent Magnet Generator for Home Use, Low Noise, Rated Wind Speed 10m/s, 10m Rotor
-
HENRYD! Horizontal Type 500w Small Wind Turbine for Home / Farm Use With Mini Wind Power Generator
-
FD12-20KW Permanent Magnet Generator/Wind Power Generator Set /wind Turbine HAWT
-
Residential Wind Generator 1kw Micro Wind Turbine Small Wind Turbine 24v off Grid System Kit
-
HENRYD! Home 2KW Wind Turbine Generator With off Grid System Kit 24v 48v for Wind Solar Hybrid Power System
-
HORIZONTAL AXIS SERIES! 5kw Wind Generator Price 360V Grid Connection System, Commercial Wind Generator 5kw Windmill HAWT
-
POP! 3000w/3kw Wind Turbine/wind Generator Set 3kw for House Use
-
2kw Wind Generator Grid Tie System: 2kw Wind Generator Kit, Wind Power System 2kw HAWT
Popular Searches
- wind generator
- permanent magnet generator
- wind turbine generator
- vertical wind turbine generator
- wind power generator
- water turbine generator
- horizontal wind generator
- turbine
- alternative energy
- hydro turbine generator
- windmill generator
- turbine power generator
- turbine generator set
- permanent magnet alternator
- wind turbine
- wind power
- turbine generator
- low rpm generator alternator
- energy generator
- free energy permanent magnet generator
- free energy magnet generator
- magnet generator
- hydro turbine
- neodymium magnet generator
- horizontal engine
- steam turbine
- hydro power
- pmg
- alternative energy generator
- wind mill
Recommended Products
- Hydraulic Disc Brake
- Wind Power Using Duplex Stainless Steel PSA Fall Protection Anchor
- 20KW MOBILE DC Charging Pile User Manual for Car Charging Station
- 40KW MOBILE DC Charging Pile User Manual for Car Charging Station
- Hydraulic Lockpin for Wind Turbine
- 120KW DC Fast EV Charger With Two Connectors for Car Charging Station
- 120KW DC Fast EV Charger With Two Connectors for Car Charging Station
- Fast Electric Car Charging Station ev Charger Pile DC 40kw 5m Cable 1 MOQ to Deliver in Stock
- Full Automatic Solar Panel Production Line Equipment
- 500MW Solar Panel Production Line Equipment
- 450MW Solar Panel Production Assembly Line Equipment
- Full Automatic Solar Module Production Line Equipment
Find Similar Products By Category
- Industrial Equipment & Components > Power & Generating Sets > Wind Generator
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now-
Aron wang
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
