Factory Price! FD3.2-1.5kw Small Wind Turbine for Sales, 1500w Mini Wind Power Generator,Horizontal Type Wind Generator 1.5kw pm

1. Wind turbine type: Fixed blades pitch, horizontal type, directly drive, C.W rotation wind power generator



on grid system

off grid system

wind solar hybrid on/off grid system (grid power/diesel power as backup power)

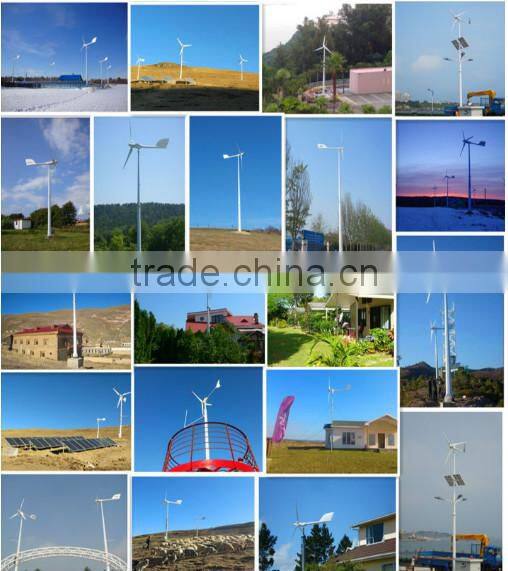

Used for the home, farm,  signal station,garden, island, rooftop...

 3. Wind turbine technical data

FD3.2-1.5kw wind turbine normal data:

 Model: FD3.2-1500W
Rotor Diameter: 3.2m
Number of Blades: 3pcs
Material of Blades: FRB
Cut-in wind speed: 2m/s
Working wind speed: 3-25m/s
Survival wind speed: 40m/s
Rated wind speed: 9m/s
Rated rotate speed: 350r/min
Rated output power: 1500w

Max output power: 2000w
Type of tower: Guy wire tower, tilting up tower (optional)
Type of generator: Permanent-magnet 3 Phase AC
Speed regulation method: Yaw auto brake
Working voltage: 12v 24V/DC48v/DC120V/240V/360V or special request
Operating Temperature: -40---+60
Tower height: 6m,8m,9m,12m or special request
Wind turbine main body weight: 90kg
Life span: WTG 20 years;
Warranty: 3years.

1. 48v off grid system wind turbine main body + controller with dump load: 0.32cbm, 90 kgs. 1 plywood case

2. 380v on grid system wind turbine main body + controller with dump load:0.39cbm, 105kgs.

Delivery by sea. FOB/C&F, CIF

Delivery by air or express.

Provide professional technical support;

Provide system design;

Wind turbine type, model, capacity selection professional support;

Tower design, foundation design support;

Completely system provider and designer;

We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures

in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind

turbine exporter, but we are the leading wind turbine manufacture and designer now.

 We manufacture 300w-30kw fixed pitch wind turbine;

2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;

On grid system/off grid system, wind solar hybrid system; Water heating system;

For more details, pls contact with us via e-mail.

1. Wind turbine model selection

It depends your local annual average wind speed, daily/monthly home power consumption.

Low average wind speed place, select larger blades rotor, higher rated working voltage;

Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.

The safety and steady working system is the first choice.

2. Wind turbine tower selection

Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.

Guy wire tower cost is lower, easy to delivery. But the installation area is larger;

Tilting up tower is for 500w-5kw wind turbine.  Easy installation, small installation area. But the delivery cost is higher.

Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.

Stand alone tower for the installation place with crane.

The tower height:  Make sure blades rotor is higher than wind turbine surrounding barrier height.

3. Working system selection

On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;

Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;

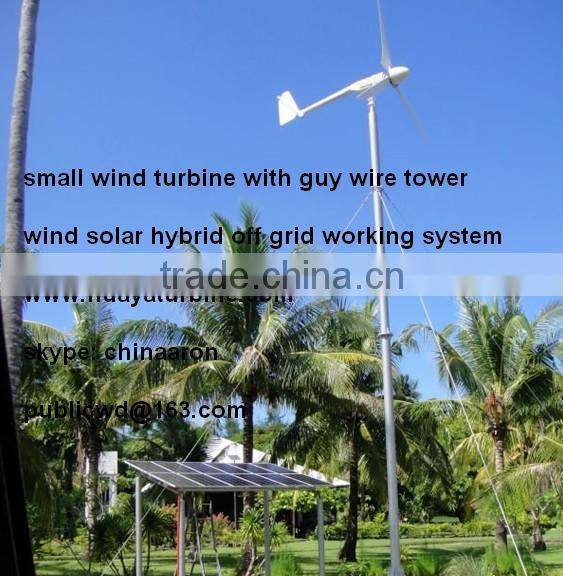

Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.

Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.

For more question, pls contact with us directly.  We will give you a professional response.

Why select us:

We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.

I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.

In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
