Product Details
| Place of Origin | Shandong, China | Brand Name | HLD | |
| Model Number | 30kw | Type | Wind Power Generator |
Product Description
Commercial FD12-30KW/FD14-30KW wind turbine 500V Grid tie system, low price, high return,high efficiency, low noise
FD12-30kw KW WIND TURBINE MAIN BODY: US$10800.00/set.
FD14-30kw wind turbine main body: US$15475.00/set
( Including 3 pcs blades, nose cone, hub, generator, manual brake system, nacelle, tail rod, tail vane.)
PWM controller with dump load, inverter, tower price will provided seperately.
User can take whole system from us, also can take any part of the system from us.
1. 30kw Wind turbine model selection
Horizontal axis, directly drive, fixed pitch, auto furling wind turbine, FD12-30kw, FD14-30kw.
Permanent magnet generator, 3 phrase AC
3 pcs FRB blades, high efficiency, low noise
FD14-30kw wind turbine work in low average wind speed place lower than 6.5m/s;
FD12-30kw wind turbine work in normal average wind speed place 6.5m/s-8m/s.
New designed 30kw wind turbine, pitch controlled, auto eletric controlled by controller, tailless new model work in rich wind speed place.
2. 30kw Wind turbine spec
Horizontal axis, directly drive, fixed blades pitch/pitch controlled, upwind wind wind turbine
For farm, small village use
FD14-30kw wind turbine work in low average wind speed place;
FD12-30kw wind turbine work in rich average wind speed place;
14m blades rotor wind turbine, rated wind speed is 9-10m/s. suitable for the lower average wind speed.
| Model: | FD12-30kw |
| Rotor Diameter: | 12m |
| Number of Blades: | 3pcs |
| Material of Blades: | Fibre glass expoxy |
| Cut-in wind speed: | 3m/s |
| Working wind speed: | 4-30m/s |
| Survival wind speed: | 50m/s |
| Rated wind speed: | 12m/s |
| Rated rotate speed: | 170r/min |
| Rated output power: | 30kw |
| Max output power: | 40kw |
| Type of tower: | Manganese steel independence tower |
| Type of generator: | Permanent-magnet 3 phrase AC |
| Speed regulation method: | Yaw |
| Stop method: | Brake by hand drag |
| Working voltage: | DC240V/DC600V, can be special request |
| Tower height: | 15m( including 2 pcs tower, work plate, ladder, base plate, ground screw) |
| Wind turbine main body weight: | 1500kg |
| Life span: | 15-20 years; |
| Warranty: | 3 years after installation |
FD14-30kw fixed pitch wind turbine normal spec:
| Model: | FD14-30kw |
| Rotor Diameter: | 14m |
| Number of Blades: | 3pcs |
| Material of Blades: | Fibre glass expoxy |
| Cut-in wind speed: | 3m/s |
| Working wind speed: | 4-30m/s |
| Survival wind speed: | 50m/s |
| Rated wind speed: | 10m/s |
| Rated rotate speed: | 140r/min |
| Rated output power: | 30kw |
| Max output power: | 36kw |
| Type of tower: | Manganese steel independence tower |
| Type of generator: | Permanent-magnet 3 phrase AC |
| Speed regulation method: | Yaw |
| Stop method: | Brake by hand drag |
| Working voltage: | DC240V/DC600V, can be special request |
| Tower height: | 15m( including 2 pcs tower, work plate, ladder, base plate, ground screw) |
| Wind turbine main body weight: | 1700kg |
| Life span: | 15-20 years; |
| Warranty: | 3 years after installation |
Wind turbine Generator and nacelle
3. 30kw wind turbine Output power data
| 30KW wind turbine output power data(FD14) | |||
| Wind speed (m/s) | Rotation speed (R/m) | Working voltage (V) | Power (kw) |
| 3 | 36 | 150 | 0.891 |
| 4 | 48 | 200 | 2.112 |
| 5 | 60 | 250 | 4.125 |
| 6 | 72 | 300 | 7.128 |
| 7 | 84 | 350 | 11.319 |
| 8 | 96 | 400 | 16.896 |
| 9 | 108 | 450 | 24.057 |
| 10 | 120 | 500 | 31.5 |
| 11 | 132 | 550 | 32 |
| 12 | 144 | 600 | 33 |
| 13 | 150 | 600 | 34 |
| 14 | 152 | 600 | 35 |
| 15 | 154 | 600 | 36 |
| 16 | 156 | 600 | 36 |
| 17 | 158 | 600 | 36 |
| 18 | 160 | 600 | 36 |
| 19 | 162 | 600 | 36 |
| 20 | 164 | 600 | 36 |
4. Wind turbine freatures
| 1. Blade: Manufacturing according to the airscrew structure principle and techniques. |
| Optimal wide TSR & High L/D ratio. With protection film on the edge, long work life. |
| Select blade type by wind tunnel testing. |
| With high efficiency, low noise. |
2. Blades rotor: Hub adopts casting molding; Blades rotor and generator adopt universal connection, directly driven. |
| Connection is reliable, durable, smooth operation without vibration. |
| 3. Generator |
Rotor: Nd-Fe-B permanent magnet. Prefabricated tangential magnetic circuit rotor; High magnetic flux density, small |
| cubage, good manufacturing process and high performance. |
| Adopt SKF, NSK bearing. |
| Close transmission slip ring, the cable will not enlace. |
| 4. Speed regulation: yaw. Simple, reliable and safety. |
5. Anti-corrosion treatment: All the outside parts are designed to anti-salt, anti-fog, anti-atmospheric |
| anti-sandstorm corrosion design. |
6.Tower: guy wire tower, tilting up tower, standalone tower, hydraulic tower… It can be designed according to your request. |
| 7. 300w-2.5kw auto braking; 3kw-30kw auto braking system and manual braking system. |
| 8. Wind turbine design principle is simple, safety, reliable, maintenance free. |
| 9. Provide low wind place, rich wind place solution. Wind turbine OEM service. |
5. Working system
Wind turbine on grid system: wind turbine with tower + PWM on grid controller with dump load + grid tie inverter
Wind turbine off grid working system:
wind turbine with tower + PWM off grid charge controller with dump + battery group + inverter;
Wind solar hybrid off grid system, diesel or grid power as backup power
6. 30kw fixed pitch wind turbine advantage
Fixed pitch wind turbine including: 3 pcs blades, nose cone, hub, generator with manual brake part, nacelle, tail rod, tail vane
- Low/normal average wind speed wind turbine
- Fixed pitch,auto yaw, auto brake, manual brake protection system.
- Low cost, reliable and steady working system
- Low start up wind speed 3m/s, low rated wind speed 9m/s;(FD14-30kw)
- Low noise level, provide noise drawing chart
- High efficiency 3 phrase AC permanent magnet generator
- Vacuum mould blades with protection film, long worklife span in sand wind condition
- Wind turbine with antiseptic treatment, hot-galvanize tower. It can be work in sea side, island, lake...
- stand alone tower is easy to installation for sample order; Hydraulic tower is easy to install for bulk order.
- We provide completely on grid system kit
Home, farm, signal station, island, garden...
8. Blades,pma
Vacuum mould blades with protection film
C.W blades, low noise level, high efficiency
FRB material, 3 pcs blades per set
Adjust blades rotor balance before delivery
Iron cast housing made by losting mould. Beautiful and antirust. Rare earth material, high efficiency and low start up torque
9. Tower type: stand lone tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.
10. Matched controller
Power of the equipped wind turbine (W) | 30K |
Operating mode | Continuous |
Function | Commutation, control |
Operating environment | Temperature -30~60℃, humidity≤80% |
PWM unloading voltage (DCV) | ≥500V |
three-phase dump load 1 voltage (DCV) | 525±5V |
three-phase dump load 2 voltage (DCV) | 530±5V |
three-phase dump load 2 delay time (min) | 10-20 minutes |
Low voltage indicator (V) | ≤130V |
Self-provided connecting wire of the three-phase dump load 1(mm²) | >12mm² |
Self-provided connecting wire of the three-phase dump load 2 (mm²) | >12mm² |
Self-provided connecting wire of the PWM dump load(mm²) | >12mm² |
PWM unloading fuse (A) | 63A |
DC output fuse (A) | 100A |
Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phrase/ 3 phrase pure sine wave inverter.
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.
11.Inverter for on/off grid system:
Matched (3 phase )grid tie inverter 15k*2 sets, add isolation transformer between two grid tie inverter. pure sine wave inverter single phrase/ 3 phase
Inverter output voltage, frequency can be manufactured according to different countries request.
Model | BNWA-1KD | BNWA- 2KD | BNWA-3KD | BNWA-5KD | BNWA-10KD | BNWA-20KD | BNWA-30KD | BNWA-50KD |
Rating capacity | 1KVA | 2KVA | 3KVA | 5KVA | 10KVA | 20KVA | 30KVA | 50KVA |
Rating AC output power | 1KVA | 2KVA | 3KVA | 5KVA | 10KVA | 20KVA | 30KVA | 50KVA |
Max. AC output power | 1.2KVA | 2.4KVA | 3.6KVA | 6KVA | 12KVA | 24KVA | 36KVA | 60KVA |
Isolation | Low frequency transformer isolation | |||||||
Recommending wind turbine power | 1.2KVA | 2.4KVA | 3.6KVA | 6KVA | 12KVA | 24KVA | 36KVA | 60KVA |
DC input voltage range | 50~780VDC | 100~780VDC | 150~780VDC | 200~780VDC | ||||
Max. DC Input current | 20A | 20A | 20A | 25A | 50A | 100A | 150A | 250A |
DC connecting mode | In-line waterproof terminal | Connecting terminal | ||||||
Max. Efficiency | 94% | |||||||
Euro efficiency | 92% | |||||||
Total current waveform distortion factor | <3%(liner load) | |||||||
Comm. interfaces | RS485/RS232 | |||||||
electrical insulating performance | 1500Vac,1minute | |||||||
Using environment temperature | -25~+60℃ | |||||||
Using environment humidity | 0~100% | |||||||
Protection | Input short voltage,over voltage,opposing connection,output over current,short circuit,over heat etc | |||||||
Cooling method | Air cooling | |||||||
Noise | <40dB | <55dB | ||||||
Protection class | IP20(indoor)),IP65(outdoor) | |||||||
Width ×depth ×height(mm) | 200*420*400 | 225*480*450 | 550*480*980 | 800*600*2260 | ||||
Weight(kg) | 18 | 30 | 40 | 60 | 150 | 250 | 360 | 700 |
Other fixed pitch wind turbine model list:
| Model | Working voltage |
| FD2.2-300W | DC24V |
| FD2.5-500W | DC24V |
| FD2.8-1KW | DC24V/DC48V |
| FD3.2-1.5kw | DC24V/DC48V |
| FD3.2-2KW | DC24V/DC48V |
| FD3.8-2.5kw | DC48V |
| FD4-3KW | DC48v |
| FD4-4KW | DC120v |
| FD5-5KW | DC120v |
| FD8-10KW | DC120V |
| FD8-15kw | DC240 |
| FD10-15KW | DC240V |
| FD10-20KW | DC500V |
| FD10-25KW | DC500V |
| FD12-30KW | DC500V |
| FD2.8-500W | DC24V |
| FD3.2-1KW | DC24V/DC48V |
| FD3.8-2KW | DC24V/DC48V |
| FD6-5KW | DC120V |
| FD10-10KW | DC120V |
| FD12-20KW | DC500 |
plywood case/soft packages
Delivery by sea. FOB/C&F, CIF
Delivery via LCL, 40' CONTAINER
Normally we delivery the products by sea. If you need us check the delivery cost, pls let us know the destination port to you. Then we will check the delivery cost accordingly.
| FD14-30k Packing details | ||||||
| TTL:7 packages | ||||||
| Model | Packing size | G.W (kg) | Cubage (M3) | Q'ty | Remark | |
| 30kw WTG main body | 6.8*0.85*0.55 | 542 | 3.18 | 1 | Blades | plywood case |
| 0.76*0.76*0.9 | 39 | 0.52 | 1 | Nose cone and back cover | plywood case | |
| 2.13*1.15*0.71 | 1085 | 1.74 | 1 | Main body and hub | plywood case | |
| 2.06*1.26*0.26 | 144 | 0.67 | 1 | Tail vane,pin | plywood case | |
| 3.3*0.54*0.14 | 93 | 0.25 | 1 | tail rod | soft package | |
| control system | 0.88*0.56*1.9 | 153 | 0.9 | 1 | controller | plywood case |
| 0.8*0.6*0.95 | 94 | 0.46 | 1 | dump load | plywood case | |
| TTL: | 2150 | 7.72 | 7 | |||
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.

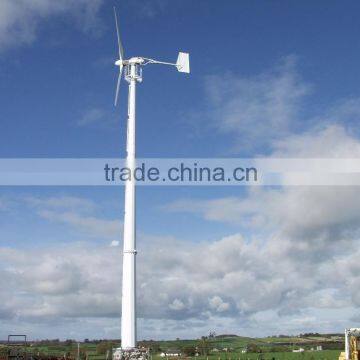

2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
Contact Us
- Qingdao HenryD Wind Power Equipment Co., Ltd.
- Contact nameAron wang Chat Now
- Phone86-532-82903820
- AddressNo.803 Jin Shui Road, Qingdao, Shandong
Product Categories
| Battery, inverter, controller,tower | Fixed pitch wind turbine | New Products |
New Products
-
HOT SALES! 5000w wind turbine generator/wind generator price,windmill generator 5000w wind power HAWT
-
HOT! 2500w wind turbine wind generators for home, horizontal axis home wind turbines with on/off grid system
-
X-max Promo! 10kw wind generator horizontal axis wind turbine generator 10kw
-
CHINA farm wind generator 50kw wind turbine with permanent magnet alternator 60rpm 23m rotor diameter
-
1kw 2kw 3kw 5kw 10kw 20kw 30kw wind power generator blades, small wind turbine blades,wind generator aluminum blades
-
SALES! 2KW wind energy generator/wind turbine generator 380v on grid system, HAWT
-
horizontal axis wind power generator 6kw 120v 240v 380v, aerogenerator 6kw wind turbine
-
ROOFTOP! 1kw small wind turbine, 1kw wind generator permanent magnet generator 3 phase AC , 2.8m blades rotor, 9m/s
-
15kw wind power system, residential/home wind turbine 15kw wind power generation
-
Wind generator manufacture: 2000w/2kw wind power generator with windmill generator for home wind power system
-
3000w wind turbine price, wind power system 3kw 24v 48v 96v 120v 240v 380v, small wind turbine 3kw
-
HOT! 1kw 2kw 3kw 5kw 10kw 20kw wind turbine, off grid/on grid wind generator,24v-240v wind generator price
-
Trade Assurance! 10kw wind generators wind turbine generator price, 10kw wind turbine manufacture, Wind electric generator pma
-
POP! 2KW wind turbine with permanent magnet generator for home type windmill generator grid tie/off grid system
-
High Return! 1500w home wind generator 1.5kw horizontal rooftop wind energy system, permanent magnet free energy generator
-
Factory price! FD3.2-1.5kw small wind turbine for sales, 1500w mini wind power generator,Horizontal type wind generator 1.5kw pm
-
MANUFACTURE! 5kw wind turbine price Small wind generators for home
-
HYBRID! 5kw wind turbine + 2kw/3kw/5kw solar wind power hybrid system, home wind solar hybrid power system 7kw 8kw 10kw
Quality Choice
-
2000w small wind turbine power generator permanent magnet generator 2kw wind generator low rpm
-
Reliable free energy power supply system, solar and wind power system for home 5kw wind generator
-
2015! horizontal axis wind power generator 6kw wind electric generator, fixed pitch wind turbine 6kw
-
BEST! 500w wind generator, wind generation wind turbine 500w 12v 24v
-
HOME, farm used wind mill generator 20kw windmill generator
-
Horizontal type 20KW Wind Turbine direct drive asynchronous 3 phase PM generator
Popular Searches
- Alternative Energy Generators
- wind generator
- Permanent Magnet Generator
- Wind Turbine Generator
- Vertical Wind Turbine Generator
- Wind Power Generator
- Water Turbine Generator
- Horizontal Wind Generator
- turbine
- alternative energy
- hydro turbine generator
- windmill generator
- Turbine Power Generator
- Turbine Generator Set
- Permanent Magnet Alternator
- wind turbine
- wind power
- turbine generator
- low rpm generator alternator
- Energy Generator
- free energy permanent magnet generator
- free energy magnet generator
- magnet generator
- hydro turbine
- Neodymium Magnet Generator
- Horizontal Engine
- steam turbine
- hydro power
- pmg
- alternative energy generator
Recommended Products
- Hydraulic Disc Brake
- Wind Power Using Duplex Stainless Steel PSA Fall Protection Anchor
- 20KW MOBILE DC charging pile User Manual for Car Charging Station
- 40KW MOBILE DC charging pile User Manual for Car Charging Station
- Hydraulic Lockpin for wind turbine
- 120KW DC fast EV charger with two connectors for Car Charging Station
- 120KW DC fast EV charger with two connectors for Car Charging Station
- Fast electric car charging station ev charger pile DC 40kw 5m cable 1 MOQ to deliver in stock
- Full Automatic Solar Panel Production Line Equipment
- 500MW Solar Panel Production Line Equipment
- 450MW Solar Panel Production Assembly Line Equipment
- Full Automatic Solar Module Production Line Equipment
Find Similar Products By Category
- Industrial Equipment & Components > Power & Generating Sets > Wind Generator
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now-
Aron wang
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
