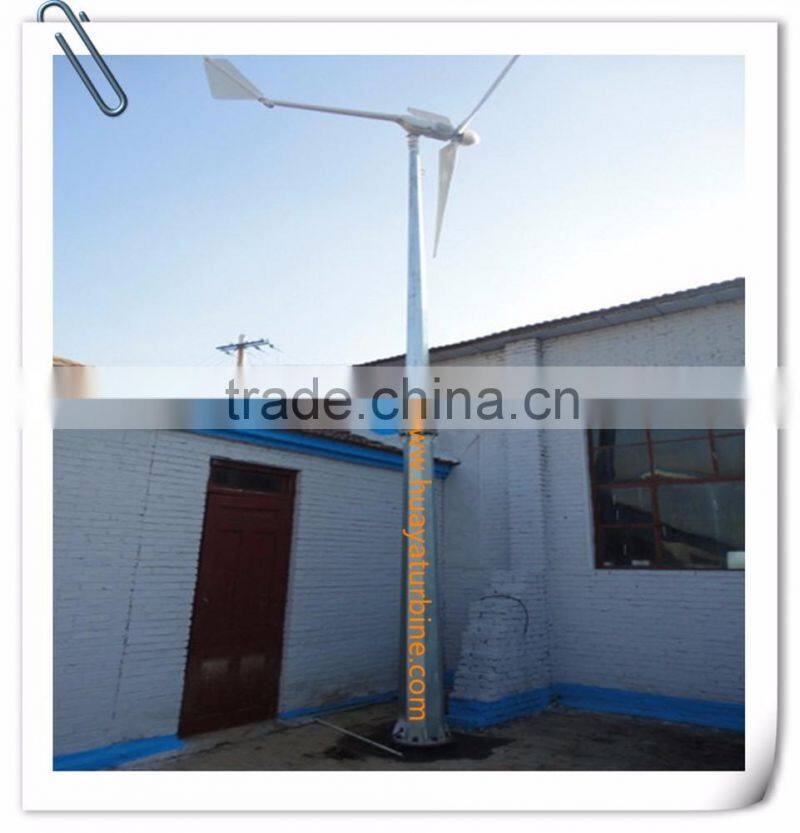

HOME! 1.5kw Wind Generator Set With 3.2m / 2.8m Blades Rotor
- Qingdao
 - T/T Credit Card PayPal

You May Like
-


SALES! 3kw Wind Turbines for Home With 3kw on Grid/off Grid Wind Generator Kit
 -


FACTORY! Low Wind Speed 3kw Wind Generator, Island Wind Power Generator 3kw 48v 360
 -


NEW! 1500W Wind Turbine Generator Kit 3 Phase Permanent Magnet Generator, Horizontal Type Wind Turbine Electric Generator
 -


PROMO! 1.5kw Wind Power Generation, Residential Fixed Pitch Small Wind Turbine 1.5kw 24v 48v 240v 360v
 -


3kw/3000w Wind Power Equipment, Wind Electric Generator 3000w Wind Energy System US$900/set
 -


PROMO! CE and IEC Confirmed Commercial FD6-5KW Wind Generator for Home With Eolic Generator

Product Details
| Place of Origin | Shandong, China | Brand Name | HLD | |
| Model Number | 1.5kw | Type | Wind Power Generator |
Product Description
HOT SALES! Home 1.5kw small wind turbine, mini wind power generator 1500w, windmill generator 1.5k
- Wind turbine type: Fixed blades pitch, horizontal type, directly drive, C.W rotation wind power generator


on grid system
off grid system
wind solar hybrid on/off grid system (grid power/diesel power as backup power)
Used for the home, farm, signal station,garden, island, rooftop...


3. 1.5kw Wind turbine technical data
| Model: | FD3.2-1500W |
| Rotor Diameter: | 3.2m |
| Number of Blades: | 3pcs |
| Material of Blades: | Fibre glass expoxy |
| Cut-in wind speed: | 3m/s |
| Working wind speed: | 3-25m/s |
| Survival wind speed: | 40m/s |
| Rated wind speed: | 10m/s |
| Rated rotate speed: | 380rpm |
| Rated output power: | 1500w |
| Max output power: | 2300w |
| Type of tower: | Guy wire tower |
| Type of generator: | Permanent-magnet 3 phase AC |
| Speed regulation method: | Yaw |
| Working voltage: | DC24V,DC48V… optional |
| Operating Temperature: | -60℃---+60℃ |
| Tower height: | 6m,8m,9m,12m |
| Tower weight: | 65kg |
| Wind turbine main body weight: | 75kg |
| Measurement(CBM): | 1 |
| Life span: | WT 20 years; |
| Warranty: | 3 years after installation |
__________________________________________
Note:
1. Tower type, tower height can be special requested;
2. working voltage can be special requested;
3.Ce,ccc,iso,IEC approved;
4. We have blades rotor diameter 2.8m, 3.2m for different wind place.
4. 1.5kw wind turbine Output power curve

5. Wind turbine freatures/advantage
| 1.) Blade: Manufacturing according to the airscrew structure principle and techniques. |
| Optimal wide TSR & High L/D ratio. With protection film on the edge, long work life. |
| Select blade type by wind tunnel testing. |
| With high efficiency, low noise. |
2. ) Blades rotor: Hub adopts casting molding; Blades rotor and generator adopt universal connection, directly driven.  |
| Connection is reliable, durable, smooth operation without vibration. |

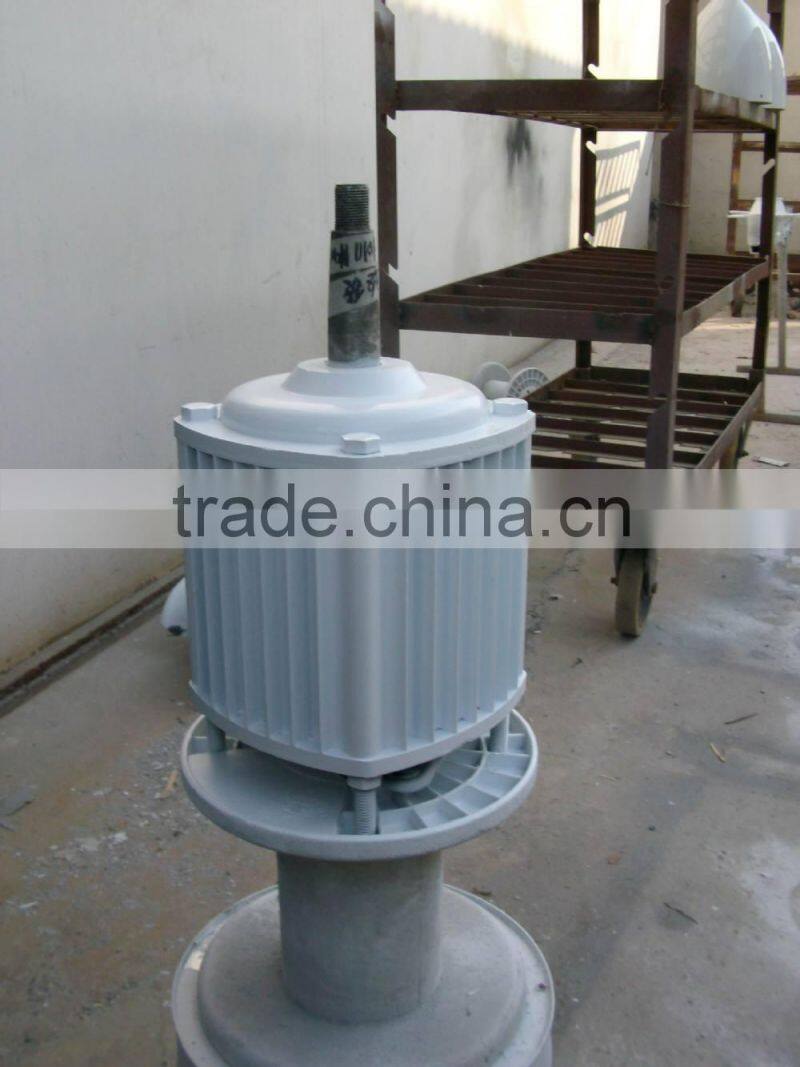

| 3.) Generator |
Rotor: Nd-Fe-B permanent magnet. Prefabricated tangential magnetic circuit rotor; High magnetic flux density, small  |
| cubage, good manufacturing process and high performance. |
| Adopt SKF, NSK bearing. |
| Close transmission slip ring, the cable will not enlace. |
| 4.) Speed regulation: yaw. Simple, reliable and safety. |
5.) Anti-corrosion treatment: All the outside parts are designed to anti-salt, anti-fog, anti-atmospheric  |
| anti-sandstorm corrosion design. |
6.) Tower: guy wire tower, tilting up tower, standalone tower, hydraulic tower… It can be designed according to your request.  |
| 7.) 300w-2.5kw auto braking; 3kw-30kw auto braking system and manual braking system. |
| 8. ) Wind turbine design principle is simple, safety, reliable, maintenance free. |
| 9.) Provide low wind place, rich wind place solution. Wind turbine OEM service, customized service. |
6. Main market: US, Canada, Australia, New Zealand, European...
7. Testing Machinery:
Generator platform test
Blade balance adjustment instrument
Blade weight center test platform
Turbine turn-to-turn test system
8. Application
Home, farm, signal station, island, garden...

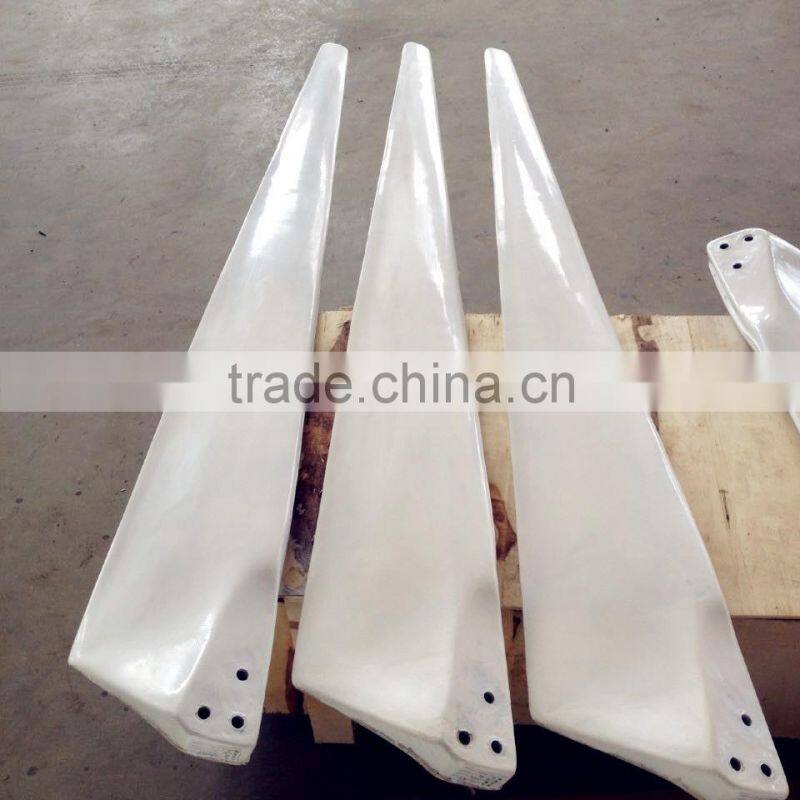

9.Blades,pma
Vacuum mould blades with protection film
C.W blades, low noise level, high efficiency
FRB material, 3 pcs blades per set
Adjust blades rotor balance before delivery


Rare earth material, high efficiency, low start up torque 2.67N.m
Aluminum generator housing and nacelle
11. Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.

12. Matched controller
Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phrase/ 3 phrase pure sine wave inverter.
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.
Power of the equipped wind turbine (W)  | 1.5K  |
Operating mode  | Continuous  |
Function  | Commutation, control  |
Operating environment  | Temperature -30~60℃, humidity≤80%  |
PWM unloading voltage (DCV)  | ≥220V  |
brake voltage (DCV)  | 260±5V  |
brake delay time (min)  | 10-20 minutes  |
Low voltage indicator (V)  | ≤130V  |
Self-provided connecting wire of the brake (mm²)  | >2.5mm²  |
Self-provided connecting wire of the PWM dump load(mm²)  | >2.5mm²  |
PWM unloading fuse (A)  | 10A  |
DC output fuse (A)  | 10A  |
14. Matched grid tie inverter 2k, pure sine wave inverter single phase 2kva/3kva
Inverter output voltage, frequency can be manufactured according to different countries request.
Off grid controller with dump load, tilting up tower, BEL storage battery, inverter
On grid controller with dump load +grid tie inverter
1. 48v off grid system wind turbine main body + controller with dump load: 0.32cbm, 90 kgs. 1 plywood case
2. 380v on grid system wind turbine main body + controller with dump load:0.39cbm, 105kgs.
Delivery by sea. FOB/C&F, CIF
Delivery by air or express.

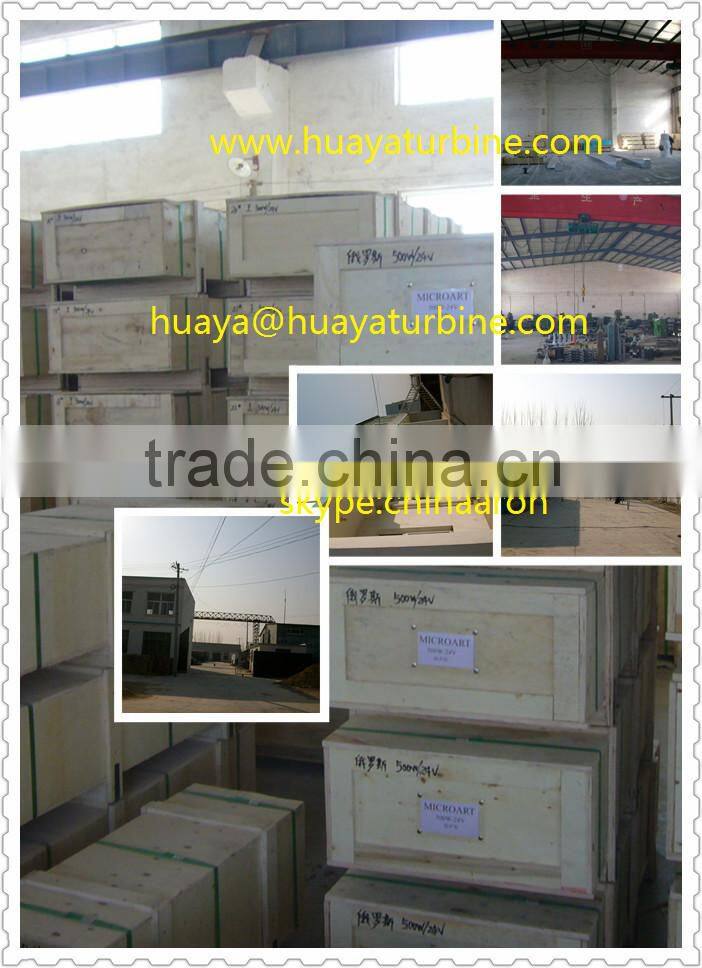

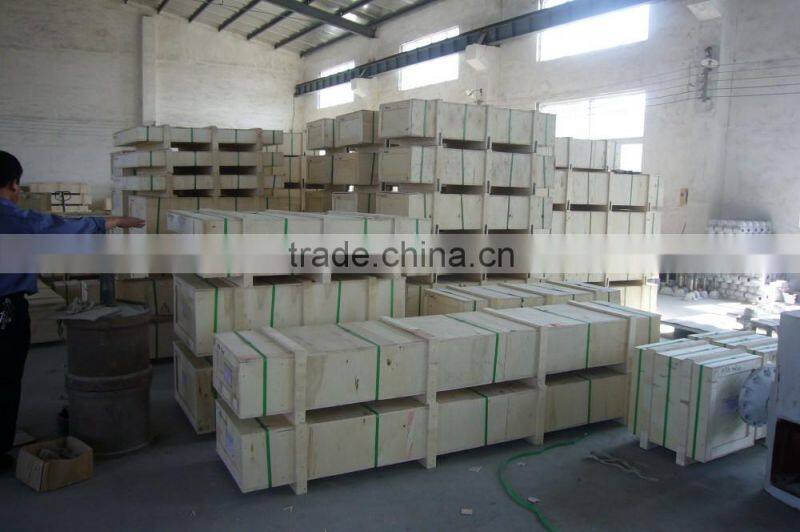

Packing details:

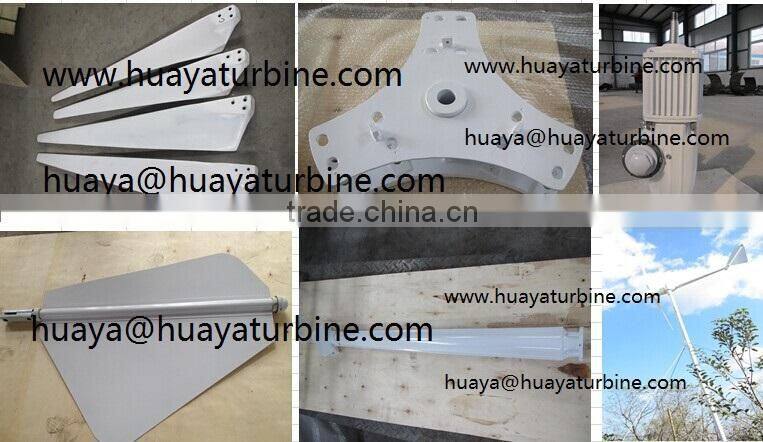

| Item# | Product description | Spec | Unit | Q'ty | Remark |
| 1 | main body | FD3.2-1.5kw 56v | set | 1 | |
| hex nut | M20*1.5 | pcs | 1 | 8.8 grade | |
| flat washer | φ20 | pcs | 1 | ||
| hexagon bolt | M10*25 | pcs | 4 | ||
| hexagon bolt | M10*80 | pcs | 4 | ||
| hex nut | M10 | pcs | 4 | ||
| flat washer | φ10 | pcs | 8 | ||
| 2 | Blades | FD3.2 L=1.56m | pcs | 6 | |
| 3 | hub | FD3.2 | set | 2 | |
| hexagon bolt | M12*80 | pcs | 18 | 8.8 grade | |
| hex nut | M12 | pcs | 18 | ||
| flat washer | φ12 | pcs | 18 | ||
| elastic pin | φ5*25 | pcs | 6 | ||
| hexagon bolt | M6*20 | pcs | 6 | 8.8 grade | |
| flat washer | φ6 | pcs | 6 | ||
| 4 | nose cone | FD3.2 | pcs | 1 | |
| 5 | tail vane | 1.5kw | set | 1 | |
| 6 | tail rod | 1.5kw | pcs | 1 | |
| hexagon bolt | M10*70 | pcs | 2 | 8.8 grade | |
| self lock nut | M10 | pcs | 2 | ||
| flat washer | φ10 | pcs | 2 |

Provide professional technical support;
Provide system design;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation design support;
Completely system provider and designer;
Support paypal payment, TT payment;
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures
in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind
turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
