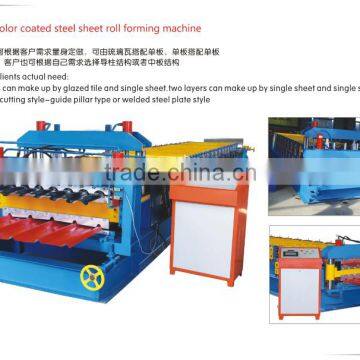

Double Layer Machine

Double Layer Machine

Materials:

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness: 0.3- 0.8 mm (or as your request)

Coil width:1000mm,1200 mm,1250mm (or as your request)

Forming speed: 8-12 m/min

Production process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→

Auto cutting→Products receiving

Components of production line

Detailed introduction of every part for this production line

1.Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

2. Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat,parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

3. Main Roll Forming System

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive,chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working.

Feature : Ensure stability , precision and lifetime.

4. Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.

(include cutting tools, hydraulic tank, cutter machine)

5. Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement.

6.Products receiving tables

1. It adopts welded steel and supported roller to transmit the products.

2. 3*0.9*0.6m

Other kinds of output table you can choose:

7. Controlling device

1) Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with

stability, precision and lifetime.

2) Other electric element are Delta

3) Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

8. Hydraulic

(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )

 Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs

Remarks

Pls send me your drawings profile, then the quotation with all details and our best price will be offered for you at once.
