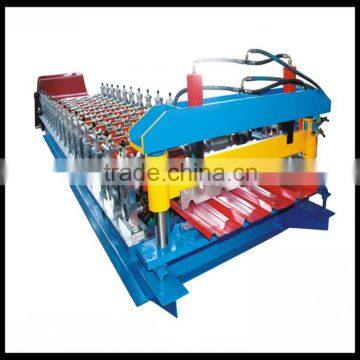

840 high quality color steel roll forming machine

840 color steel roll forming machine

The high quality mainly show on the following three parts:

1. 1. Frame of cutting : guide pillar

Advantage: strengthen the stability when cutting and make cut look neater and more beautiful

1. 2. Structure of side: large Arch-type

Advantage: independent roller station, beautiful out looking, high stability, long time using

1. 3. Thicker shafts with quenching and tempering treatment. Chinese famous brand motor and PLC.

Customer drawing profile:

Material thickness: 0.3 to 0.8mm

Processing material: colored steel plate, galvanized plate, or aluminum plate

Working speed: 8-12 meter per minute

Production process

Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving

Components of production line

10 Tons hydraulic decoiler with car:

1 Coil inner diameter: 450-550 mm

2 Max coil out diameter:1300 -1600 mm
3 Max coil width: 1250 mm
4 Carrying capacity:10 T
5 Hydraulic expansion

6 Automatically feeding

7 Hydraulic, inner tight

8 Hydraulic power : 3 kw     Drive power:5.5 kw

9 Size:4.2*1.6*1.9 m(L*W*H)

Coil feeding part

Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate baffle.

Main Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature: Ensure stability, precision and lifetime.

Detail pictures:

Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor (include cutting tools, hydraulic tank, and cutter machine)

Note: two hydraulic cylinders

Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement

Products receiving tables

1. It adopts welded steel and supported roller to transmit the products.

2. 3*0.9*0.6m

Controlling device

1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2. Other electric element Delta brand

3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Hydraulic station

(Include two set of hydraulic tank, a set of hydraulic oil pump, four hydraulic pipes. And two sets of electromagnetism valves)
