color steel galvanized roof wall tile profile making machine
- 30 Set / Sets per Month
- tianjin xingang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
high quality roofing machine, trapezoidal shape profile roof tile making roll forming machine
-
refrigerated small trucks/refrigerated van truck aluminum cargo van body forming machine
-
forland refrigerated truck body panels for refrigerated truck body machines
-
T bar truck body panel rolling forming machine
-
Zhongtuo corrugated 1008 and 1000 Trapezoidal Double Layer roll forming machine
-
lorry plate / freight car panel / truck panel roll forming machine Quality Choice
Product Details
Condition | New | Type | Tile Forming Machine | |
Tile Type | Colored Steel | Use | Roof | |
Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
Brand Name | ZT1200 | Model Number | ZT trapezoidal machine | |
Power(W) | 7.5+5.5kw | Voltage | 380V 50Hz 3phases | |
Dimension(L*W*H) | 8500*1650*1500mm | Weight | 4.5T | |
Certification | CE/ISO9001 | Warranty | 12 Months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Color steel galvanized roof wall tile profile making machine
Color steel galvanized roof wall tile profile making machine is high quality, just because its frame is more thicker than normal type,guarantee the stability when machine working with high speed. Also the hardness and diameter of rollers and shafts is high grade, enable your machine to produce perfect shape for a long time without bending or rub. German Semen motor, Japan Panasonic brand PLC and converter. So long using life and easy to change any parts if broken.no scrach, dents or damages to sheets. exact sizes as what you want.
Working flow of steel galvanized roof wall tile profile making machine :
Main element of color steel galvanized roof wall tile profile making machine
NO | Name | Unit | Qty |
1 | 5T manual decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | PLC Control system | set | 1 |
4 | Hydraulic system | set | 1 |
5 | Electric motor | set | 1 |
6 | Post cut | set | 1 |
7 | Stacking | set | 1 |
Component of color steel galvanized roof wall tile profile making machine
1 | Length of the main part | About8500*1650*1500mm |
2 | Weight of main part | About 6.5 Ton |
3 | Voltage | 380V/50HZ3Phase (as customer’s request) |
4 | Roller fixer | Middle plate welded |
5 | Frame | Guide pillar and the thickness is 50mm |
6 | Frame thickness | 22mm |
7 | Drive mode | Gear |
8 | Material of rollers | 45# steel, surface hard chromium plating. |
9 | Material of shafts | 45# steel |
10 | Diameter of shafts | Φ90mm Solid shafts |
11 | Number of rollers | 16 rollers |
14 | Main power | 11kw(Simon motor ) |
15 | Text screen displayer | Japan made |
17 | Forming speed | speed 8-22m/min |
18 | PLC Control system | Japan Panasonic PLC |
19 | Hydraulic power | 5.5KW |
20 | Gear box | China famous brand |
21 | Chain | 1.25 |
22 | Delivery time | 30 working days after receiving the deposit |

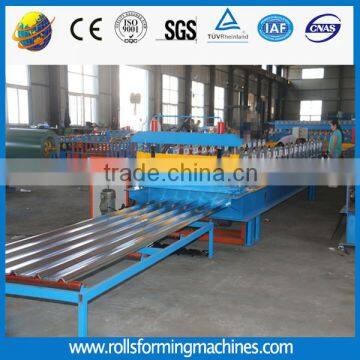

Pictures of steel profile making machine for your reference:
more details or the price for color steel galvanized roof wall tile profile making machine ,
feel free to contact me by the above contact information
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 20 days after receipt of advance payment
Service: we sent technician to your country to fix the machine.
The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
