high quality roofing machine, trapezoidal shape profile roof tile making roll forming machine
USD $12,500 - $16,500
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- tianjin xingang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
refrigerated small trucks/refrigerated van truck aluminum cargo van body forming machine
-
forland refrigerated truck body panels for refrigerated truck body machines
-
T bar truck body panel rolling forming machine
-
Zhongtuo corrugated 1008 and 1000 Trapezoidal Double Layer roll forming machine
-
lorry plate / freight car panel / truck panel roll forming machine
Quality Choice
-
loading lorry panel metal sheet roll forming machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | ZT1200 | Model Number | ZT trapezoidal machine | |
| Power(W) | 7.5+5.5kw | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 8500*1650*1500mm | Weight | 4.5T | |
| Certification | CE/ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High quality roofing machine, trapezoidal shape profile roof tile making roll forming machine
Why called it is high quality, just because its frame is more thicker than normal type,guarantee the stability when machine working with high speed. Also the hardness and diameter of rollers and shafts is high grade, enable your machine to produce perfect shape for a long time without bending or rub. German Semen motor, Japan Panasonic brand PLC and converter. So long using life and easy to change any parts if broken.no scrach, dents or damages to sheets. exact sizes as what you want.
Working flow of high quality roofing machine:
Main element of tile making roll forming machine
NO | Name | Unit | Qty |
1 | 5T manual decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | PLC Control system | set | 1 |
4 | Hydraulic system | set | 1 |
5 | Electric motor | set | 1 |
6 | Post cut | set | 1 |
7 | Stacking | set | 1 |
Component of trapezoidal shape profile roof tile making roll forming machine
| 1 | Length of the main part | About8500*1650*1500mm |
| 2 | Weight of main part | About 6.5 Ton |
| 3 | Voltage | 380V/50HZ3Phase (as customer’s request) |
| 4 | Roller fixer | Middle plate welded |
| 5 | Frame | Guide pillar and the thickness is 50mm |
| 6 | Frame thickness | 22mm |
| 7 | Drive mode | Gear |
| 8 | Material of rollers | 45# steel, surface hard chromium plating. |
| 9 | Material of shafts | 45# steel |
| 10 | Diameter of shafts | Φ90mm Solid shafts |
| 11 | Number of rollers | 16 rollers |
| 14 | Main power | 11kw(Simon motor ) |
| 15 | Text screen displayer | Japan made |
| 17 | Forming speed | speed 8-22m/min |
| 18 | PLC Control system | Japan Panasonic PLC |
| 19 | Hydraulic power | 5.5KW |
| 20 | Gear box | China famous brand |
| 21 | Chain | 1.25 |
| 22 | Delivery time | 30 working days after receiving the deposit |

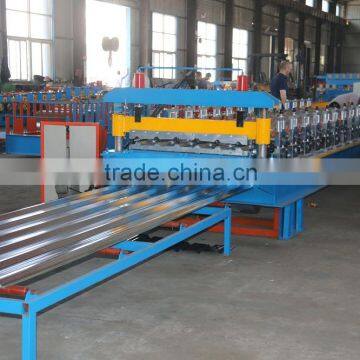

Pictures of high quality roofing machine for your reference:
Wanna more details or the price,feel free to contact me by the above contact information
