UTP cat6 cable manufacturer

FOB Price

US$ 0.13 - 0.28 / Meter

5000 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

cat6 cable
1.UTP 4 pair cat6
lid&strand soft circle twisted copper wire
3.PVC hacket
4.Fast delivery&top quality

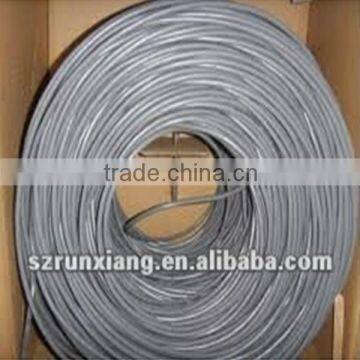

UTP cat6 cable manufacturer

Product Description

the cross section of cat6 cable

Feature

lid &stranded soft circle twisted copper wire

2.high -density polythene

3.rating temperatuer 75 degree

4.we can provide different colors and length

5.we can meet your requirements and welcome to vist to us

cat6 UTP solid lan cable 23AWG
conductor		insulation
pairs	4	material :	HDPE-High-density polyethylene
total number of the conductor	8	diameter		Φ0.96+/-0.05mm
stranding	solid	pair color code chart		pairs 1:white /Blue stripe &blue pair2:whie /Orange stripe &orange pair3:whie /Green stripe &Green pair4:whie /Brown stripe &Brown
material	BC-bare copper
AWG	23
Diameter	Φ0.56+/-0.01mm
paired		cabling
Direction	Right hand lay	order of the pair			see the cross section
Twisting lay length	≤38mm	cross filler			PE
jacket		packing
material	PVC-polyvinyl chloride			product length	100m	coil
color	Grey				305m	pull box
rip cord	200D*3				500m	plywood reel
thickness	0.52+/-0.05mm				1000m	plywood reel
marking	6.20+/-0.30mm				2000m	plywood reel

the detail information about the product
Conductors:		24AWG
Conductor No:		0.58 mm rate 0.52-0.58 mm
Insulation:		pvc/pe/lszh
Color Code		orange/ white/ black/ blue
		Pair1: Blue- White/Blue
		Pair2: Orange- White/Orange
		Pair3: Green- White/Green
		Pair4: Brown- White/Brown
Ripcord:		Under Jacket
Jacket O.D:		6.5+0.2 mm
Pair quantity:		4
remarks		OEM is ok

Packaging & Shipping

Our Services

1.We are professional manufacture of optical fiber cables in China.

2.OEM is accepted.

3.The cable size and material are customized,and your own logo or design are welcome.

4.We'll reply you in 12 hours after you send enquiry to us
