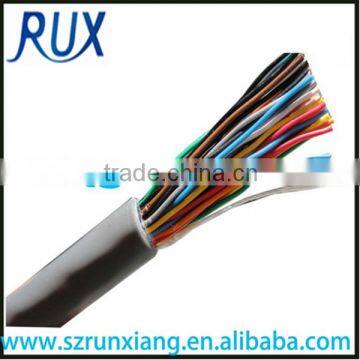

Cat3 L3.IN-UTP2-24-PVC2 pairs lan cable

FOB Price

US$ 0.07 - 0.2 / Meter

5000 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

2 pairs lan cable cat3 L3.IN-UTP2-24-PVC

feature

1.small diameter,can save the space

2.light weight ,easy to curve ,flexible to splice

3.can reduce the harass

4.have the good inflaming retarding

5.Siut for the structure complex splice

we handle this items for many years and can meet your reguirement

the specification of the items :

Electrical Characteristics
Test Item			Units		Spec
Conductor DC Resistance 20°C			Ω/100m		≤9.5
Unbalance of Pair DC Resistance 20°C			%		≤2.5
Dielectric Strength between Pairs			kv/min		≥1.0
Insulation Resistance			MΩ·km		≥5000
Capacitance			nF/100m		≤6.6
Unbalance Capacitance			pF/100m		≤330
Characteristic impedance(1 to 100MHz)			Ω		100±15
Short or Open of the loop			—		None
Shield			—		—

Pair Color Code Chart			Other Characteristics
pair NO		color	net weight	16 kg/km
1	a	White	Length	305m Pully Box
	b	Blue		500m Pully Box
2	a	White		1000m Plywood
	b	Orange		2000m Plywood
Mechanical Characteristics
Test Object			Sheath
Test Material			PVC
Before Tensile Strength(Mpa)			≥13.5
Aging Elongation(%)			≥150
Aging Condition(°C×hrs)			100×168
Before Tensile Strength(Mpa)			≥12.5
Aging Elongation(%)			≥125
Cold Bend(-20±°C×4hrs)			No crack
Operating Temperature Range			-20°C To +75°C
Min.Bending Radius(Install)			8×D

total name	INDOOR CAT 3 UTP SOLID LAN CABLE 16MHz 24AWG 2 PAIRS PVC
Part No. RX-L3.IN-UTP2-24-PVC
