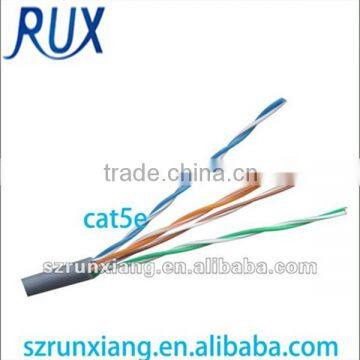

24awg best price utp Cat5e lan cable
- SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | szrunxiang | |
| Model Number | SZRX-CAT5E LAN CABLE | Type | Cat 5e | |
| Number of Conductors | 4 |
Product Description
Specifications
1.24AWG BC CONDUCTOR2.PE INSULATION
3.CAT5e UTP/FTP/SFTP LAN CABLE
4.ISO9001
5.PACKING :305M/BOX
24awg best price utp Cat5e lan cable
| Product Description |
INDUSTRIAL STANDARDS:YD/T1019-2001,USA ANSI/TIA/EIA-568-B,WORLD WIDE ISO/IEC 11801-71156.
Conductor: Solid &Stranded soft circle twisted copper wire
Insulation : High-density Polythene(HDPE)
Jacket : Polyvinyl chloride (PVC),LSZH,PE.We can provide all kinds of colors according to customer's requirements.Rip wire (Optional)
Rating Temperature :75°C
Applications: ISDN,10BASE-T Ethernet(IEEE802..3),
100BASE-T -Ethernet(IEEE802..3),155MbpsATM,100Vg-AnyLAN(IEE802.12)TP-PMD(ANSI X3T9.5),16Mbps Token Ring(IEEE802.5),1000BASE-T -Ethernet(IEEE802..3ab).
Specification
NO. | TYPE | CONDUCTOR | PAIRS NO. | SHIELD | MYLAR | DRAIN WIRE | JACKET | |
AWG | NO./DIAMETER | |||||||
NO/MM | ||||||||
SZRXDL5U2401 | UTP | 24 | 1/0.51 | 4 |
|
|
| PVC |
SZRXL5U2401 | UTP | 24 | 1/0.51 | 25 |
|
|
| PVC |
SZRXL5U2401 | UTP | 24 | 1/0.51 | 50 |
|
|
| PVC |
SZRXL5U2401 | UTP | 24 | 7/0.20 | 4 |
|
|
| PVC |
SZRXL5F2402 | FTP(OUTDOOR) | 24 | 1/0.51 | 4 | AL foil | PET | Solid tinned copper | PE |
SZRXL5F2401 | FTP | 24 | 1/0.51 | 4 | AL foil | PET | Solid tinned copper | PVC |
SZRXL5F2401 | FTP | 24 | 1/0.51 | 25 | AL foil | PET | Solid tinned copper | PVC |
SZRXL5F2401 | FTP | 24 | 1/0.51 | 50 | AL foil | PET | Solid tinned copper | PVC |
SZRXL5SF2401 | SFTP | 24 | 1/0.51 | 4 | Braiding+AL foil | PET | Solid tinned copper | PVC |
| About Us |
Certification
Factory
Our service
1.We are professional manufacture of optical fiber cables in China.
2.OEM is accepted.
3.The cable size and material are customized,and your own logo or design are welcome.
4.We'll reply you in 12 hours after you send enquiry to us
