RX cat3 utp cable
- SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | szrunxiang | |
| Model Number | RX-sc adapter | Type | Cat 3 | |
Product Description

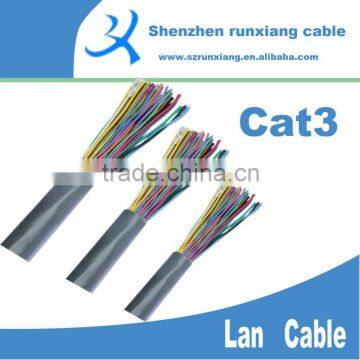

CAT3 UTP LAN CABLE 24AWG
APPLICATIONS
Telephony voice wiring
10 Base-T
100Base-T4
Token Ring
100VG-AnyLAN
INDUSTRIAL STANDARD
UL444
IEC 322-1
TIA/EIA-568-B.2
ISO/IEC11801,EN50173
SPECIFICATION
CABLE DESCRIPTION | |||
Conductor | Insulation | ||
Number of Pairs | 25 | Insulation Material | HDPE - Polyethylene |
Total Number of Conductors | 100 | Nom.Insulation Wall Thickness | 0.18 mm |
Wire Gage | 24AWG | Diameter over Insulation | Φ 0.86±0.03 mm |
Stranding | Solid | Pair Color Code | Cable Color Cord |
Conductor Material | BC - Bare Copper | - | - |
Paired | Cabling | ||
Length of Lay | < 70 mm | Order of the Pair | See the Cross Section |
Outer Sheath | |||
Outer Sheath | PVC-Polyvinyl Chloride | Outer Sheath Colors | Per Customer Request |
Outer Sheath Rip Cord | 200D×3 | Min. Thickness | 0.40 mm |
Nominal Thickness | 0.80±0.05 mm | Diameter Over Sheath | Φ 4.00±0.30 mm |
