Home > Products > Communication cable > Cat5e utp network cable
Cat5e utp network cable
- SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | szrunxiang | |
| Model Number | SZRX-CAT5E LAN CABLE | Type | Cat 5e | |
| Number of Conductors | 4 |
Product Description

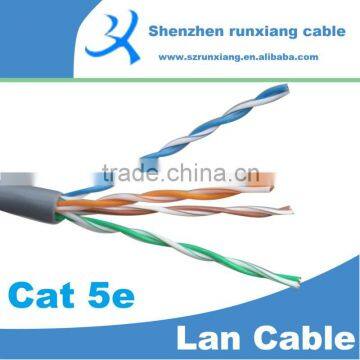

CAT 5e LAN CABLE
DESCRIPTION
INDUSTRIAL STANDARDS:YD/T1019-2001,USA ANSI/TIA/EIA-568-B,WORLD WIDE ISO/IEC 11801-71156.
Conductor: Solid &Stranded soft circle twisted copper wire
Insulation : High-density Polythene(HDPE)
Jacket : Polyvinyl chloride (PVC),LSZH,PE.We can provide all kinds of colors according to customer's requirements.Rip wire (Optional)
Rating Temperature :75°C
Applications: ISDN,10BASE-T Ethernet(IEEE802..3),
100BASE-T -Ethernet(IEEE802..3),155MbpsATM,100Vg-AnyLAN(IEE802.12)TP-PMD(ANSI X3T9.5),16Mbps Token Ring(IEEE802.5),1000BASE-T -Ethernet(IEEE802..3ab).
SPECIFICATION
NO. | TYPE | CONDUCTOR | PAIRS NO. | SHIELD | MYLAR | DRAIN WIRE | JACKET | |
AWG | NO./DIAMETER | |||||||
NO/MM | ||||||||
SZRXDL5U2401 | UTP | 24 | 1/0.51 | 4 |
|
|
| PVC |
SZRXL5U2401 | UTP | 24 | 1/0.51 | 25 |
|
|
| PVC |
SZRXL5U2401 | UTP | 24 | 1/0.51 | 50 |
|
|
| PVC |
SZRXL5U2401 | UTP | 24 | 7/0.20 | 4 |
|
|
| PVC |
SZRXL5F2402 | FTP(OUTDOOR) | 24 | 1/0.51 | 4 | AL foil | PET | Solid tinned copper | PE |
SZRXL5F2401 | FTP | 24 | 1/0.51 | 4 | AL foil | PET | Solid tinned copper | PVC |
SZRXL5F2401 | FTP | 24 | 1/0.51 | 25 | AL foil | PET | Solid tinned copper | PVC |
SZRXL5F2401 | FTP | 24 | 1/0.51 | 50 | AL foil | PET | Solid tinned copper | PVC |
SZRXL5SF2401 | SFTP | 24 | 1/0.51 | 4 | Braiding+AL foil | PET | Solid tinned copper | PVC |
