Home > Products > Solar Panel > High quality 270 watt monocrystalline solar panel for home solar panel kits paneles solares with CE Tuv

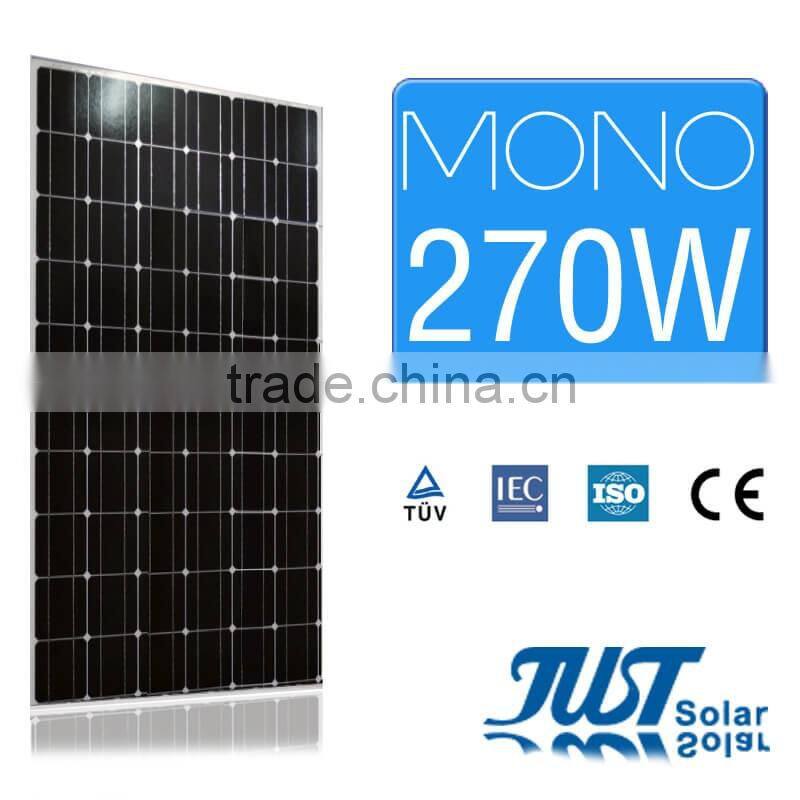

High quality 270 watt monocrystalline solar panel for home solar panel kits paneles solares with CE Tuv

FOB Price

US$ 0.4 - 0.5 / Watt

1 Watt(Min. Order)

Port Shanghai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Just Solar
Model Number	JST270M(72)		Type	Other, Solar Panel 270 watt

Product Description

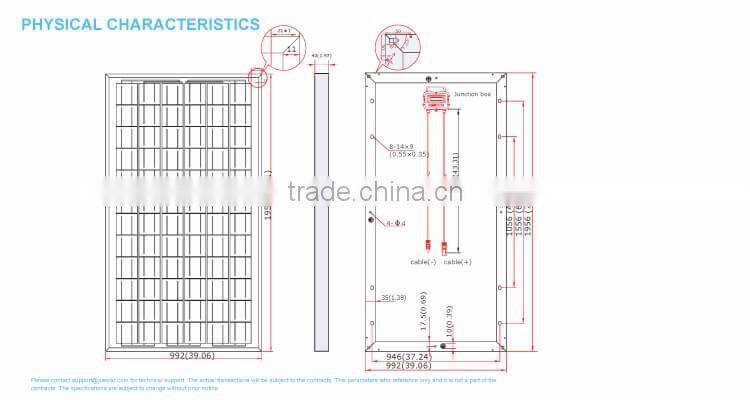

Dimensions

IV-Curves

Note!

Please contact support for technical support. The actual transactions will be subject to the contracts. This parameters are for reference only and it is not a part of the contracts. The specifications are subject to change without prior notice.

Technical Data

Model Type	JST230M(60)	JST240M(60)	JST250M(60)	JST260M(60)	JST270M(60)
Peak Power	230W	240W	250W	260W	270W
Module Efficiency	14.20%	14.80%	15.40%	16.00%	16.60%
Maxi Power Voltage	30V	30.3V	30.6V	30.9V	31.2V
Maxi Power Current	7.67A	7.92A	8.17A	8.42A	8.66A
Open Circuit Voltage	37.1V	37.4V	37.7V	38.1V	38.4V
Short Circuit Current	7.98A	8.24A	8.5A	8.76A	8.98A
Power Tolerance	0 to+5W
	Mechanical Data
Cell Type	Monocrystalline 156x156mm
Number of Cells	60
Glass	High Transmission,Low Iron,Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP67rated MC4 compatible
Dimension	195699245mm
Weight	16.8kg

Payment Terms

Payment Terms	T/T	FOB	30% T/T in advance, paid the balance before shipment
		EXW
		CIF	30% T/T in advance, paid the balance against copy of B/L
		CFR(C&F)
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	Western Union	Amount lower than 53000usd
Delivery Time	10~15 days after receiving payment for one container

Packing

Packing Information
Container	20GP	40GP	40HP
Pieces per Pallet	26	26	26
Pieces per Container	356	728	812

Shipping

By Sea	Delivery from Shanghai, Yiwu and Ningbo seaport
By Air	Departure from Shanghai Pudong Airport
By Express	Post by DHL, EMS, UPS, TNT.
