Home > Products > Solar Panel > High quality 90 watt polycrystalline solar panel for home solar panel kits paneles solares with CE Tuv

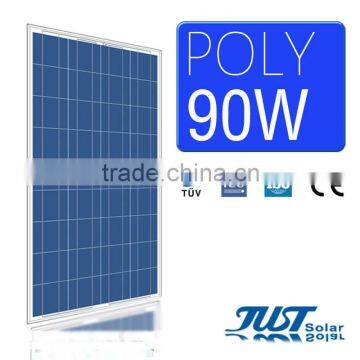

High quality 90 watt polycrystalline solar panel for home solar panel kits paneles solares with CE Tuv

FOB Price

US$ 0.4 - 0.5 / Watt

1 Watt(Min. Order)

Port Shanghai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Just Solar
Model Number	JST90P(36)		Type	Other, Solar Panel 90 watt

Product Description

Dimensions

IV-Curves

Note!

Please contact support for technical support. The actual transactions will be subject to the contracts. This parameters are for reference only and it is not a part of the contracts. The specifications are subject to change without prior notice.

Technical Data

Model Type	JST60M(36)	JST70M(36)	JST80M(36)	JST90M(36)	JST100M(36)
Peak Power	60W	70W	80W	90W	100W
Module Efficiency	11.40%	13.20%	15.20%	13.00%	14.50%
Maxi Power Voltage	18V	18.2V	18.4V	18.8V	18.9V
Maxi Power Current	3.33A	3.85A	4.35A	4.79A	5.29A
Open Circuit Voltage	22.1V	22.3V	22.5V	22.7V	22.9V
Short Circuit Current	3.49A	4.04A	4.56A	5.03A	5.55A
	0 to+5W
	Mechanical Data
Cell Type	Monocrystalline 156x156mm
Number of Cells	36
Glass	High Transmission,Low Iron,Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP67rated MC4 compatible
Dimension	78067635mm	78067635mm	78067635mm	102067635mm	102067635mm
Weight	5.6kg	5.6kg	5.6kg	8kg	8kg

Payment Terms

Payment Terms	T/T	FOB	30% T/T in advance, paid the balance before shipment
		EXW
		CIF	30% T/T in advance, paid the balance against copy of B/L
		CFR(C&F)
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	Western Union	Amount lower than 53000usd
Delivery Time	10~15 days after receiving payment for one container

Packing

Packing Information
Container	20GP	40GP	40HP
Pieces per Pallet	26	26	26
Pieces per Container	356	728	812

Shipping

By Sea	Delivery from Shanghai, Yiwu and Ningbo seaport
By Air	Departure from Shanghai Pudong Airport
By Express	Post by DHL, EMS, UPS, TNT.
