Home > Products > Solar Panel > High Quality 135 Watt Polycrystalline Solar Panel for Home Solar Panel Kits Paneles Solares With CE Tuv

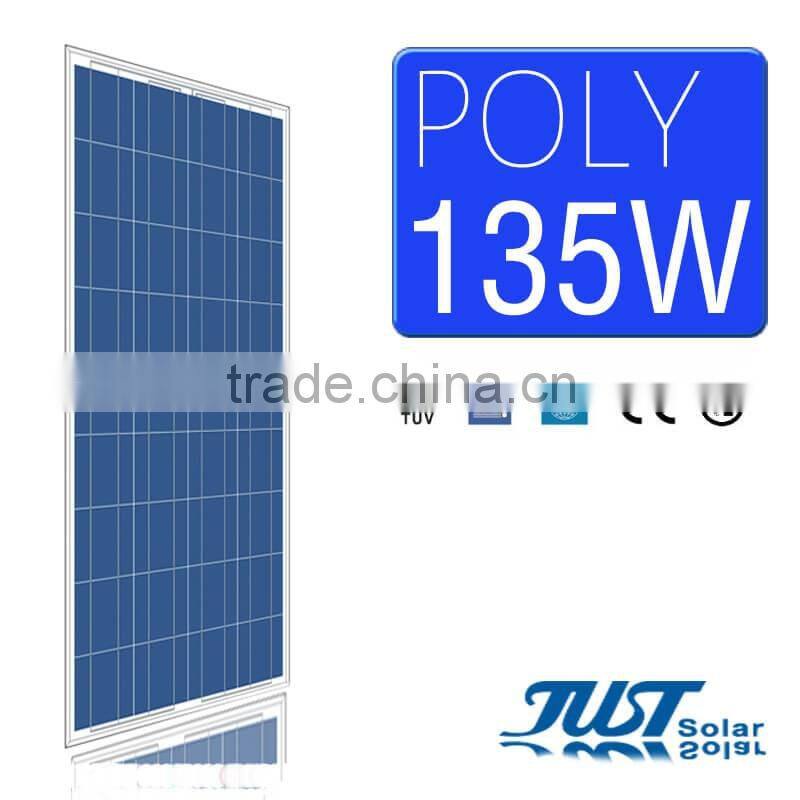

High Quality 135 Watt Polycrystalline Solar Panel for Home Solar Panel Kits Paneles Solares With CE Tuv

FOB Price

US$ 0.4 - 0.5 / Watt

1 Watt(Min. Order)

Port Shanghai
Payment TermsT/T D/P D/A Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Just Solar
Model Number	JST135P(36)		Type	Other, Solar Panel 135 watt

Product Description

Dimensions

IV-Curves

Note!

Please contact support for technical support. The actual transactions will be subject to the contracts. This parameters are for reference only and it is not a part of the contracts. The specifications are subject to change without prior notice.

Technical Data

Model Type	JST120M(36)	JST130M(36)	JST140M(36)	JST150M(36)	JST160M(36)
Peak Power	120W	130W	140W	150W	160W
Module Efficiency	12.00%	13.00%	14.00%	15.00%	16.00%
Maxi Power Voltage	18V	18.3V	18.6V	18.9V	19.1V
Maxi Power Current	6.67A	7.1A	7.53A	7.94A	8.38A
Open Circuit Voltage	22.1V	22.4V	22.7V	23V	23.2V
Short Circuit Current	6.98A	7.45A	7.9A	8.33A	8.8A
Power Tolerance	0 to+5W
	Mechanical Data
Cell Type	Monocrystalline 156x156mm
Number of Cells	36
Glass	High Transmission,Low Iron,Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP67rated MC4 compatible
Dimension	148267635mm
Weight	11kg

Payment Terms

Payment Terms	T/T	FOB	30% T/T in advance, paid the balance before shipment
		EXW
		CIF	30% T/T in advance, paid the balance against copy of B/L
		CFR(C&F)
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	Western Union	Amount lower than 53000usd
Delivery Time	10~15 days after receiving payment for one container

Packing

Packing Information
Container	20GP	40GP	40HP
Pieces per Pallet	26	26	26
Pieces per Container	356	728	812

Shipping

By Sea	Delivery from Shanghai, Yiwu and Ningbo seaport
By Air	Departure from Shanghai Pudong Airport
By Express	Post by DHL, EMS, UPS, TNT.
