Home > Products > Swamp Excavator > China Amphibious Excavator for Two Use SX400SD

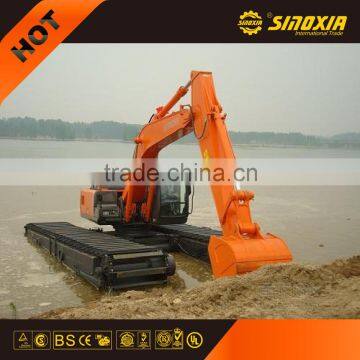

China Amphibious Excavator for Two Use SX400SD
US$ 100,000 - 200,000
/ Set
1 Set(Min. Order)
- shanghai port
- T/T Credit Card
You May Like
-
Hydraulic Pontoon Excavator SX300SD Land And Water Excavator
-
Swamp Excavator for Amphibious Use SX400SD From China Supplier
-
China Marsh Buggy Excavator for Two Use SX400SD
-
Marsh Buggy SX300SD Excavator for Sale
-
Amphibious Excavator for Two Use HK400SD
-
China Marsh Buggy for Two Use SX400SD Dredging Equipment
Product Details
| Place of Origin | Anhui, China | Brand Name | SINOXIA | |
| Model Number | SX400SD | Condition | New | |
| Moving Type | Other, pontoon | Operating Weight | 40000kg | |
| Bucket capacity | 0.5m3 | Maximum Digging Height | 17375mm | |
| Maximum Digging Depth | 12855mm | Machine Weight | 40000kg | |
| Max Digging Radius | 18723mm | Rated Speed | 164kw | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product introduction :
High efficiency ,low fuel consumption ,low noise ,comfortable operation ,stable performance ,low ground pressure .
Tracked pontoon structure ensures low ground pressure so that it can travel and work on swamp and soft areas ,it can also be towed to move forward on water .
Big torque travelling devices ensure strong driving force when turning and climbing.
Big circular arc structure on both ends of pontoon reduces travelling resistance
High capacity of fuel tank greatly increases time interval of fueling
Pontoons with extenable classis make it easy to be transported
Powerful engine owns high efficiency, low fuel consumption and high reliability .
Humanized design of cab with air conditioning has great all round visibility and confortable operation environment.
| machine model | SX 400SD | |
| operating weight | kg | 40000 |
| standard bucket capacity | m3 | 0.5 |
| boom length | mm | 10500 |
| arm length | mm | 7600 |
| chains | pcs | 3 |
| hydraulic system | ||
| max.displacement | cm3/r | 2*140 |
| operating pressure | mpa | 32 |
| overal performance | ||
| engine model | ISUZU6BG1 | |
| NO.of cylinder | pcs | 6 |
| max.torque | nm/rpm | 949/1500 |
| rated power | kw/(r/min.) | 164/2200 |
| engine displacement | l | 6.7 |
| travel speed | km/h | 2.1/1.2 |
| swing speed | rpm | 11 |
| gradeability | % | 70 |
| tracktive effort | kn | 4*116 |
| max.digging force of bucket | kn | 135 |
| max.digging force of arm | kn | 123.9 |
| ground pressure | kpa | 140 |
| fuel tank capacity | l | 560 |
| hydraulic tank capacity | l | 250 |
| working range | ||
| max.digging radius | mm | 18723 |
| max. digging radius at ground | mm | 18507 |
| max.digging depth | mm | 12855 |
| max.vertical digging depth | mm | 11377 |
| max. digging height | mm | 17375 |
| max.dumping height | mm | 14289 |
| min.front slew radius | mm | 5150 |
| dimension | ||
| length of ponton | mm | 11400 |
| ground clearance of platform | mm | 2090 |
| overal height | mm | 4144 |
| boom transport height | mm | 3823 |
| overal length | mm | 16949 |
| rear slew radius | mm | 3140 |
| track gauge | mm | 3523 |
| overal width | mm | 5500 |
| width of pontoon | mm | 1800 |
| min.ground clearance | mm | 1228 |
| heighth of pontoon | mm | 1913 |
| width of upper structure | mm | 2950 |
| ground length | mm | 7642 |
