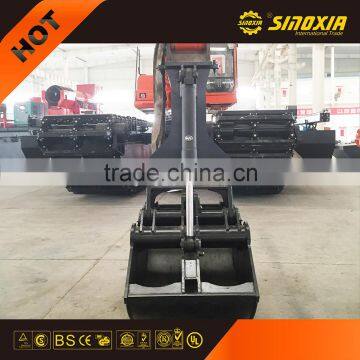

swamp buggy excavator SX400SD for afric market

FOB Price

USD $100,000 - $200,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China	Brand Name	SINOXIA
Model Number	SX400SD	Condition	New
Moving Type	Crawler Excavator	Operating Weight	40000KG
Bucket capacity	0.5	Maximum Digging Height	17375MM
Maximum Digging Depth	12855MM	Machine Weight	40000kg
Max Digging Radius	18507MM	Rated Speed	2200r/min
Certification	ISO9001	After-sales Service Provided	No overseas service provided

machine model		SX 400SD
operating weight	kg	40000
standard bucket capacity	m3	0.5
boom length	mm	10500
arm length	mm	7600
chains	pcs	3
hydraulic system
max.displacement	cm3/r	*2140**
operating pressure	mpa	32
overal performance
engine model	ISUZU6BG1
NO.of cylinder	pcs	6
max.torque	nm/rpm	949/1500
rated power	kw/(r/min.)	164/2200
engine displacement	l	6.7
travel speed	km/h	2.1/1.2
swing speed	rpm	11
gradeability	%	70
tracktive effort	kn	*4116**
max.digging force of bucket	kn	135
max.digging force of arm	kn	123.9
ground pressure	kpa	140
fuel tank capacity	l	560
hydraulic tank capacity	l	250
working range
max.digging radius	mm	18723
max. digging radius at ground	mm	18507
max.digging depth	mm	12855
max.vertical digging depth	mm	11377
max. digging height	mm	17375
max.dumping height	mm	14289
min.front slew radius	mm	5150
dimension
length of ponton	mm	11400
ground clearance of platform	mm	2090
overal height	mm	4144
boom transport height	mm	3823
overal length	mm	16949
rear slew radius	mm	3140
track gauge	mm	3523
overal width	mm	5500
width of pontoon	mm	1800
min.ground clearance	mm	1228
heighth of pontoon	mm	1913
width of upper structure	mm	2950
ground length	mm	7642
