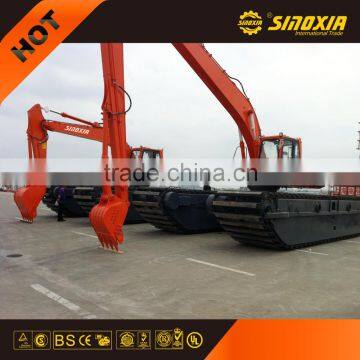

pontoon undercarriage excavator made in china SX300SD-3 marine excavator
USD $100,000 - $200,000
/ Set
1 Set(Min.Order)
- shanghai port
- Credit Card
You May Like
-
river excavator made in china SX300SD-3 swamp buggy dredger
-
dredging machinery excavator made in china SX300SD-4 side pontoon available
-
sewer dredging excavator made in china SX300SD-4 under water excavator
-
amphibious vehicle excavator made in china SX300SD-4 for swamp land excavator
-
premium construction machinery multi function excavator made in china SX300SD-4
-
hydraulic amphibious excavator with pontoon made in china SX300SD-3
Product Details
| Place of Origin | Anhui, China | Brand Name | SINOXIA | |
| Model Number | SX300SD-3 | Condition | New | |
| Moving Type | Crawler Excavator | Operating Weight | 34000KG | |
| Bucket capacity | 0.5 | Maximum Digging Height | 7437MM | |
| Maximum Digging Depth | 5766MM | Machine Weight | 34000kg | |
| Max Digging Radius | 12210MM | Rated Speed | 2100r/min | |
| Certification | ISO9001 | After-sales Service Provided | No overseas service provided |
Product Description
Product introduction :
High efficiency ,low fuel consumption ,low noise ,comfortable operation ,stable performance ,low ground pressure .
Tracked pontoon structure ensures low ground pressure so that it can travel and work on swamp and soft areas ,it can also be towed to move forward on water .
Big torque travelling devices ensure strong driving force when turning and climbing.
Big circular arc structure on both ends of pontoon reduces travelling resistance
High capacity of fuel tank greatly increases time interval of fueling
Pontoons with extenable classis make it easy to be transported
Powerful engine owns high efficiency, low fuel consumption and high reliability .
Humanized design of cab with air conditioning has great all round visibility and confortable operation environment.
| MACHINE MODEL | SX300SD-3 | |
| operationg weight | kg | 34000 |
| standard bucket capacity | m3 | 0.5 |
| boom length | mm | 7200 |
| arm length | mm | 4515 |
| chain | pcs | 3 |
| ENGINE | ||
| model | 6BG1 | |
| type | inter-coiled | |
| power | kw/rpm | 114/2100 |
| max.torque | 629n'm at 1600rpm | |
| no. of cylinders | 6 | |
| displacement | l | 6.49 |
| HYDRAULIC SYSTEM | ||
| main pump type | variable displacement axial piston pumps | |
| max.displacement | cm3/r | 2*107 |
| max. flow | umin | 20 |
| working pressure | mpa | 32 |
| hydraulic motor slew | fixed displacement axial piston motor | |
| travel | variable displacement axial piston motors | |
| PERFORMANCE | ||
| slew speed | rpm | 11 |
| min.slew radius | mm | 3692 |
| max.travel speed high.low | km/h | 3.29/2.17 |
| gradeability | ° | 35 |
| tractive effort | kn | 382.4 |
| max.digging force of bucket | kn | 98.3 |
| max.digging force of arm | kn | 63.5 |
| ground pressure | kg/cm2 | 0.12 |
| TANK CAPACITY | ||
| fuel tank capacity | l | 376 |
| hydraulic tank capacity | l | 219 |
| ITEM STANDARD | ||
| length of pontoon | mm | 9504 |
| ground clearance of platform | mm | 1936 |
| overall height | mm | 3900 |
| boom tansport height | mm | 3300 |
| overall length | mm | 12890 |
| rear swing radius | mm | 3692 |
| track gauge | mm | 3950 |
| overall width | mm | 5742 |
| width of pontoon | mm | 1800 |
| min.clearance ground | mm | 1126 |
| height of pontoon | mm | 1652 |
| upperstructure width | mm | 2622 |
| ground length | mm | 6485 |
| max.digging reach | mm | 12500 |
| max.digging reach on ground | mm | 12210 |
| max.digging depth | mm | 7437 |
| max.vertical wall digging depth | mm | 6902 |
| max.cutting height | mm | 13055 |
| max.dumping height | mm | 10810 |
| min.front radius | mm | 3186 |
