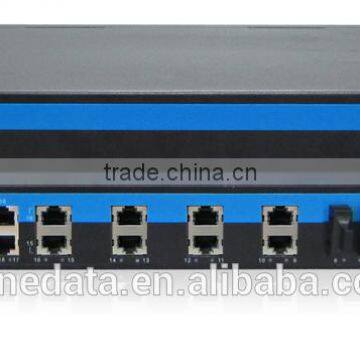

24 ports Managed Optical Industrial Ethernet Switch witch 8 Fiber Ports

1.Support IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
2.SW-Ring ring network patent technology (Fault recovery time<20ms)
3.Support RSTP, Convergence time<50ms
4.Support static multicast, IGMP Snooping and GMRP
5.Support Port based VLAN and IEEE 802.1Q VLAN
6.Support QOS absolutely and opposite priority
7.Support flow control, Broadcast storm control
8.Support WEB, SNMP and Telnet configuration
9.Support MAC address learning, aging automatic
10.Support DHCP server and port frame statistics
11.Support email warning and relay warning
12.Support port status display, data update.
13.Support configuration file upload and download
14.Support 1 channel relay alarm output
15.Industrial grade 4 design, -40-75℃working temperature
16.IP30 protection grade, rugged high-strength metal case

17.No fan design

18.19-inch rack mounted

Switch

Function

Switch

Properties

Forward speed: 148810pps

Maximum filter speed: 148810pps
Transmit mode: store and forward
Backplane bandwidth: 12.8Gbps
MAC table size: 8K
Buffer size: 4M

Electrical Port: RJ45 Connector, 10/100Base-T(X) auto negotiation , Half/full duplex and MDI/MDI-X auto detect
Optical Fiber Port: 100Base-FX, SC/ST/FC connector

Console port: RS-232(RJ45 Connector) debug serial port
Alarm port: 1 channel relay alarm output( 2 bit terminal block)

Power port: 1 channel power iutput( 3 bit terminal block)

10/100Base-T(X):CAT5/CAT5e UTP(≤100m)

100Base-FX:Optical Fiber

Multi-mode:    1310nm, 2Km
Single-mode: 1310nm, 20/40/60Km
                          1550nm, 80/100/120Km

wavelength: 1310nm, 1550nm

Shell: IP30 protect grade, metal shell
Size(W×H×D): 441.6mm×45mm×208.9mm

Weight:2.82kg

Installation: 19” 1U rack mounted

EMI:

FCC Part 15, CISPR (EN55022) class A
EMS:

EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock:

IEC 60068-2-27
Free fall:

IEC 60068-2-32
Vibration:

IEC 60068-2-6
