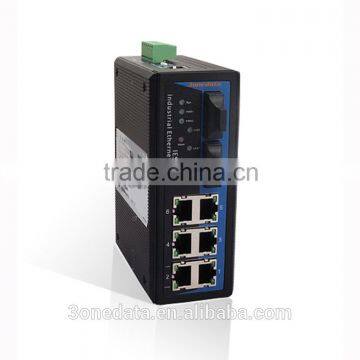

8 ports DIN-Rail Managed Industrial Ethernet Fiber Switch

Switch

Properties

Forward speed: 148810pps

Maximum filter speed: 148810pps
Transmit mode: store and forward
Backplane bandwidth: 2.0Gbps
MAC table size: 2K
Buffer size: 1M

Priority Queues:4

Maximum No of Available VLANs:256

VLAN ID:1~4094

IGMP Groups: 256

Electrical Port: RJ45 Connector, 10/100Base-T(X) auto negotiation , Half/full duplex and MDI/MDI-X auto detect

Optical Fiber Port: 100Base-FX(SC/ST/FC connector)

Console port: RS-232(RJ45 Connector) debug serial port

Alarm port: 1 channel relay alarm output( 2 bit terminal block)

Power port: 2 channel power iutput( 4 bit terminal block)

10/100Base-T(X):CAT5/CAT5e UTP(≤100m)

100Base-FX:Optical Fiber

Multi-mode:    1310nm, 2Km

Single-mode: 1310nm, 20/40/60Km
                          1550nm, 80/100/120Km

wavelength: 1310nm, 1550nm

Run indicator: Run
Interface indicator: Link (1~8)
Power supply indicator: PWR1, PWR2
Alarm indicator: Alarm

Input voltage: 24VDC(12~48VDC)
Terminal block: 4 bits 7.62mm terminal block

No-load Consumption:3.0W@24VDC

Full-load Consumption:4.7W@24VDC

Support redandunt protection

Support  reverse polarity protection

Support overload current protection

Shell: IP30 protection grade, metal shell
Size(W×H×D): 136mm×105mm×52mm

Weight:800g

Installation: DIN rail mounted

EMI:

FCC Part 15, CISPR (EN55022) class A
EMS:

EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock:

IEC 60068-2-27
Free fall:

IEC 60068-2-32
Vibration:

IEC 60068-2-6

1. Industrial Ethernet Switch IES608-2F (plus terminal block)  × 1

2.Attached CD  × 1

3. User manual × 1

4. Certificate of quality × 1
5. Warranty card × 1

6.DIN-Rail fittings  × 1
