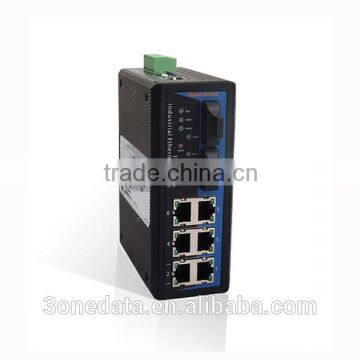

8-port Managed Industrial Ethernet Fiber Switch(6TP+2FP)

FOB Price

USD $1 - $500 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	3ONEDATA
Model Number	IES608-2F

Product Description

Descriptoin

IES608-2F series are a type of plug-and-play industrial managed redundant Ethernet switch, which supports 6 X 10/100Base-T(x) + 2 X 100Base-FX ports. The 7 and 8 ports are used to establish SW-Ring for the purpose accomplishing redundancy for Ethernet ring network (self-recovery time <20ms) to enhance the reliability of the network.

Furthermore, IES608-2F series can also support numerous intelligent network management functions, including QoS, VLAN, Port Trunking, velocity configuration and alarm enabling functions. To satisfy applications in different industrial environments, IES608-2F series can also provide wide temperature type in accommodation with limit temperature (-40 ~ 75°C).

Features:

1. Store and forward.8k address. Support MAC address filtrate struction

2. SW-Ring(recovery time < 20 ms at full load)

3. Port-based VLAN, IEEE 802.1Q VLAN to ease network planning

4. Port Trunking for optimum bandwidth utilization

5. Lock port function for blocking unauthorized access based on MAC address

6. Port mirroring for online debugging

7. Bandwidth management prevents unpredictable network status

8. Dual power backup, Relay output warning for power failure and port break alarm

9. Port link, ring fault/abnormity alarm indication

10. IP 30 protection, rugged high-strength metal case

11. Redundant 24VDC power input(12V~36VDC)Operating

12. DIN-Rail or panel mounting ability

Specification

Interface
RJ45 Ports: 10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection
Fiber Ports: 100BaseFX ports (SC/ST, optional)
Single-mode:20, 40,60, 80, 120Km,optional
Multi-mode: 2,5Km,optional
Wavelength: 850nm, 1310 nm, 1550nm
DOWNLOAD PROGRAM Port: Based serial network management (RS-232), RJ45
Alarm output interface: One relay alarm output. Support power, port link and ring network alarm .
Indicator: Port link, ring fault/abnormity alarm indication 10M/100M Rate, run indication
Technology
Standards: IEEE802.3 for 10BaseT, IEEE802.3x for Flow Control, IEEE802.3u for 100BaseTX and 100BaseFX, IEEE802.1Q for VLAN Tagging, IEEE802.1p for Class of Service
Transmit Rate: 148810pps
Max Rate of Filtrate: 148810pps
Processing Type: Store and Forward
System exchange bandwidth: 4.8G
Support 8K MAC address
Port-Based VLAN
Relay
Max voltage: DC30V
Max current input: 1A
Power
Input Voltage: 24VDC (12VDC~36DC)
Overload Current Protection
Support dual power backup
Support dual power alarm input
Mechanical
Dimensions: 136mm×52mm×105mm (H×W×D)
Casing: IP30 protection, metal case
Weight: 800g
Environmental
Operating Temperature: -40 to 75°C
Storage Temperature: -45°C to 85°C
Ambient Relative Humidity: 10 to 95% (non-condensing)

Approvals

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2 (ESD),Level 4

EN61000-4-3 (RS),Level 3

EN61000-4-4 (EFT),Level 4

EN61000-4-5 (Surge),Level 4

EN61000-4-6 (CS),Level 3

EN61000-4-8,Level 5

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Warranty: 5 years

Approvals: FCC, CE, RoHS approvals
