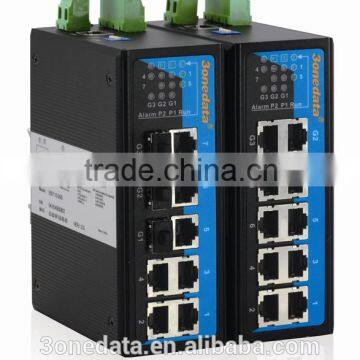

10 ports DIN-Rail Managed Industrial Gigabit Ethernet Switch

      The IES7110-3G series Gigabit managed redundant industrial Ethernet switch is equipped with up to 3 Gigabit Ethernet ports(3-port SFP or 3-port GbE), making it ideal for building a Gigabit SW-Ring(No.8,No.9), but leaving a spare Gigabit port for uplink use. The Ethernet redundant SW-Ring (recovery time < 20 ms) can increase system reliability switches and the availability of your network backbone. Switch supports numerous intelligent network management functions, such as QoS, VLAN, Port Trunking, velocity configuration and alarm enabling functions,designed with industrial standard, can be suited to the applications in different industrial network environments.

Switch

Properties

Forward speed: 1488100pps

Maximum filter speed: 1488100pps
Transmit mode: store and forward
Backplane bandwidth: 7.6Gbps
MAC table size: 8K
Buffer size: 1M

Electrical Port: RJ45 Connector, 10/100Base-T(X) auto negotiation, full/half duplex mode, MDI/MDI-X auto detect

Gigabit SFP Port: 1000Base-FX(LC connector)

Console port: RS-232(RJ45 Connector) debug serial port

Alarm port: 1 channel relay alarm output( 2 bit terminal block)

Power port: 2 channel power iutput( 4 bit terminal block)

10/100Base-T(X):CAT5/CAT5e UTP(≤100m)

1000Base-FX:Optical Fiber

Multi-mode:    1310nm, 2Km
Single-mode: 1310nm, 20/40/60Km
                          1550nm, 80/100/120Km

wavelength: 1310nm, 1550nm

Running status indicator: RUN
100M port connection/running status: Link/Act(1~7)
1000M port connection/running status: Link/Act(G1~G3)

Power supply indicator: PWR1, PWR2
Alarm indicator: ALARM

Input voltage: 12~48VDC

Terminal block: 4 bit 7.62mm separation distance
No-load consumption: 3.0W@24VDC
Full-load consumption: 7.1W@24VDC
Overload current protect: 4.0A
Support DC dual power supply alarm input
Support DC dual power supply redundancy
Support DC input no parity, protection reverse connection

Shell: IP40 protection grade, metal shell
Size(W×H×D): 138mm×110mm×53mm

Weight:800g

Installation: DIN rail mounted

EMI:

FCC Part 15, CISPR (EN55022) class A
EMS:

EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock:

IEC 60068-2-27
Free fall:

IEC 60068-2-32
Vibration:

IEC 60068-2-6

1. Industrial Ethernet Switch IES7110-3GS (plus terminal block)  × 1
2. Attached CD × 1
3. User manual × 1
4. Certificate of quality × 1
5. Warranty card × 1

6.DIN-Rail fittings  × 1

IES7110-3GT:   7 ports 10/100Baes-T(X)  + 3 1000Base-TX gigabit ports, 12~48VDC

IES7110-3GS:   7 ports 10/100Baes-T(X)  + 3 gigabit fiber ports(SFP slots), 12~48VDC
