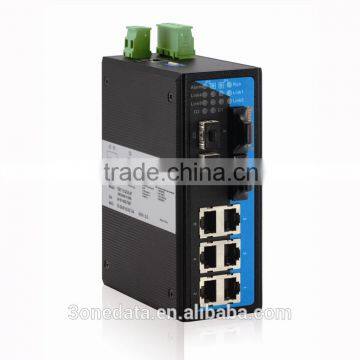

10 ports DIN-Rail Managed Industrial Gigabit Ethernet Switch

      IES7110-2GS-2F is an industrial grade, managed and redundancy Ethernet switch which supports 6 Ethernet ports, 2 Fiber ports and 2 Gigabit (SFP slot) ports. SW-Ring TM is an arithmetic designed for rapid redundancy network.,it provides fault recovery technology for the rapid redundant network(recovery time<20ms),can bring your Ethernet  network to intelligent redundancy. Standard industrial design,all components are industrial grade,can satisfied every requirement of the industrial scene,make the switch high reliability. Switch accorded to CE, FCC standard and Industrial grade 4 design requirement, support 2 redundant power input and 1 channel relay alarm output, -40~75℃ working temperature, can meet all kinds of Industrial network environment requirement.

Switch

Properties

Forward speed: 1488100pps

Maximum filter speed: 1488100pps
Transmit mode: store and forward
Backplane bandwidth: 5.6Gbps
MAC table size: 8K
Buffer size: 1M

Electrical Port: RJ45 Connector, 10/100Base-T(X) auto negotiation, full/half duplex mode, MDI/MDI-X  auto detect

Optical Fiber Port: 100Base-FX(SC/ST connector)

Gigabit SFP Port: 1000Base-FX(LC connector)

Console port: RS-232(RJ45 Connector) debug serial port

Alarm port: 1 channel relay alarm output( 2 bit terminal block)

Power port: 2 channel power iutput( 4 bit terminal block)

10/100Base-T(X):CAT5/CAT5e UTP(≤100m)

100Base-FX,1000Base-FX:Optical Fiber

Multi-mode:    1310nm, 2Km
Single-mode: 1310nm, 20/40/60Km
                          1550nm, 80/100/120Km

wavelength: 1310nm, 1550nm

Running status indicator: RUN
100M port connection/running status: Link/Act(1~8)
1000M port connection/running status: Link/Act(G1~G2)

Power supply indicator: PWR1, PWR2
Alarm indicator: ALARM

Input voltage: 12~48VDC

Terminal block: 4 bit 7.62mm separation distance
No-load consumption: 5.0W@24VDC
Full-load consumption: 8.1W@24VDC
Overload current protect: 4.0A
Support DC dual power supply alarm input
Support DC dual power supply redundancy
Support DC input no parity, protection reverse connection

Shell: IP40 protection grade, metal shell
Size(W×H×D): 138mm×110mm×53mm

Weight:720g

Installation: DIN rail mounted

EMI:

FCC Part 15, CISPR (EN55022) class A
EMS:

EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock:

IEC 60068-2-27
Free fall:

IEC 60068-2-32
Vibration:

IEC 60068-2-6

1. Industrial Ethernet Switch IES7110-2GS-2F (plus terminal block)  × 1
2. Attached CD × 1
3. User manual × 1
4. Certificate of quality × 1
5. Warranty card × 1

6.DIN-Rail fittings  × 1

IES7110-2GS-2F(M):  6 ports 10/100Baes-T(X)   + 2 ports 100Base-FX Multi-mode SC/ST + 2 gigabit fiber ports(SFP slots), 12~48VDC

IES7110-2GS-2F(S):  6 ports 10/100Baes-T(X)   + 2 ports 100Base-FX Single mode SC/ST + 2 gigabit fiber ports(SFP slots), 12~48VDC

IES7110-2GS-2F(S):  6 ports 10/100Baes-T(X)   + 2 ports 100Base-FX Single mode, Single Fiber SC/ST + 2 gigabit fiber ports(SFP                                                slots), 12~48VDC
