ZHONGXUN ZX-405MM High Quality Trinocular Drawtube and Stereo Microscope Theory

ZHONGXUN ZX-405MM High Quality Trinocular Drawtube and Stereo Microscope Theory

Description:

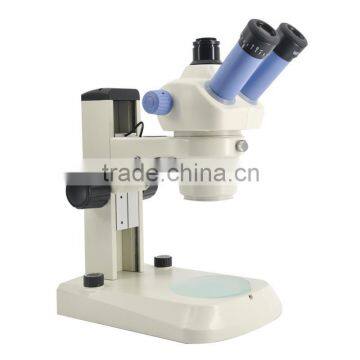

ZX-405MM Stereo microscope, using the Nikon's Greenough optical system, which has an imaging clarity and stability, achieved 3D effect of real observations, at the same time with high quality and competitive price. It can be widely used in school teaching, medical anatomy, examination, laboratory. Precious manufacturing assembly, testing and quality control, especially for the IT industry. Standard optical zoom multiples of 10 to 45 times in a row, the maximum can be upgraded to 180-fold. Wide field of vision, large zoom ratio, long working distance. ZX-405 as a binocular type, ZX-405M video observation mode adds, welcome to order!

Specification:

1. Model#: ZX-405MM

2. Eyepiece tube: Trinocular eyepiece tube, Inclination 45°, CCD 0.45X

3. Eyepiece: High eye-point WF10X,field number Φ20mm

4. Eyepiece adjustment: Interpupillary distance adjustment range 57-75mm, diopter adjustment ± 5 °

5. Zoom objective: 1X-4.5X

6. Zoom Ratio: 1/4.5

7. Working Distance: 97mm (Under parfocalization, lens distance is observed the height of the object)

8. Illumination system: Reflection and transmission light LED100V-240V/LED, brightness adjnstable

9. Vertical arm height: 240mm (26cm X 18.5cm X 3cm)

10. Focus system: Focusing handwheel adjustable elastic, lift the range 49mm

11. Stage: Black-white Stage, frosted translucent Stage

12. Optional Accessory: Eyepiece:WF15X16mm/20X12mm, Attachment Objective: 2X(To increase the magnification), Working Distance:30mm, LED external ring lights; Photo attachment.

Detail Show:

100% Products Actual Photos
