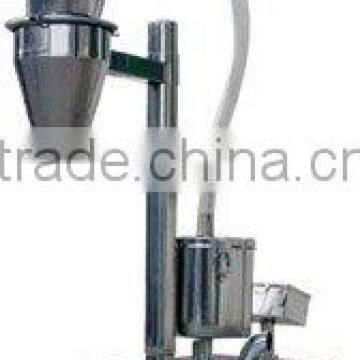

Vacuum charging machine

Specifications

Descriptions:

Our company developed a new product ---the Vacuum Charging Machine which widely absorb

the goods points of the same kind at home and abroad.At the moment,the machine is the most advanced and perfect vacuum

Conveyer equipment in conveying powder materials,granule materials and materials of mixed powder and

Granule.It can automatically transport various kinds of raw materials into the hopper chute of some

Equipment such as the packing machine,the injection molding machine and the pulverizer.Since it puts the

Mixed raw materials into the mixer,workersintensity of labor is decreased and the problem that the dust

Is flowing out when adding the material is solved.If pharmaceutical factory and food products

factory want to pass the GMP attestation,our vacuum charging machine is your first choice.

The vacuum charging machine is composed of vacuum pump(no oil,no water),stainless steel charging mouth,

Transporting pipe,PE filter(or 316 stainless steel filter),compressed air reversed-blow device,

Aerodynamic emptying door device,vacuum hopper chute and automatic control device.The whole system is rational and exquisite.

Principle of work:

The vacuum charging machine uses the swirl pump to extract the air to put the feed nozzle and the whole

part in certain vacuum situation.Particle materials is inhaled into the feed nozzle accompanied by the

outer air and forms materials air current going into the hoist through the gripping pipe.After the air

and the materials are separated in the hoist,the raw materials go into the material receiving through.

Feeding materials-emptying materials is completed by opening and closing unceasingly pneumatic triple

Valve that is controlled by control centre.

The vacuum charging machine has the compressed air reversed-blow device.When emptying the materials,

Compressed-air pulsar blows the filter reversely and blows away the powder attach to the surface of the

filter in order to make the charge work normally.

Technical Parameters:

Transfer effect base the distance and the character of the material.
