Vibrating Screw Feeding Machine GS-4S (feeder machine)
- Shanghai
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Minhua | |
| Model Number | GS | Application | Other, Granules, Granules | |
| Type | Other, Filling Equipment, Granulator | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Vibrating Screw Feeding Machine GS-4S.(feeder machine)2.This Vibrating Screw Charging Machine can convey sorts of material
feeder machine

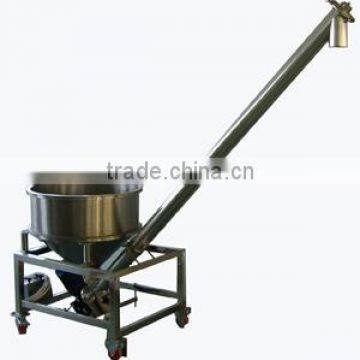

Vibrating Screw Feeding Machine GS-4S
Descriptive abstract:
This Vibrating Screw Charging Machine can convey sorts of material. Combined with the package-machine of our company, it can do material situation tracing. Also can be used separately. Complete machine made in stainless steel, except for the electrical machine, gearing, and the framework....
Characteristics:
Vibrating screw feeding machine is composed of double motor, feeding motor, vibrating motor and each switch control.
Hopper is adjustable and vibrational which make material to be flowing easily. It is good to material.
Hopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading
Characteristic dustproof, bearing wont be polluted by the dust and powder.
To cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversally, storing materials at the bottom of hopper pipe, taking out the whole screw.
Technical Parameter..
Model | GS-4S3 | GS-4S5 | GS-4S8 |
Charging Capacity | 3 stere / hr. | 5 stere / hr. | 8 steres /hr. |
Powder Supply | 750W | 1.5KW | 2.2KW |
Diameter of pipe | φ114mm | φ141mm | φ159mm |
Hopper Volume | 150L | ||
Power Supply | 3P 380V 50-60Hz | ||
Charging angle | General 45 degree, special inquirement 30degree,60degree | ||
Charging Height | General1800mm,Different feeding height could be designed | ||
Total Weight | 150kg | 200kg | 250kg |
Overall Dimensions of Hopper | 1150×850×1000mm | ||
Remark | Other charging capacity could be designed | ||
