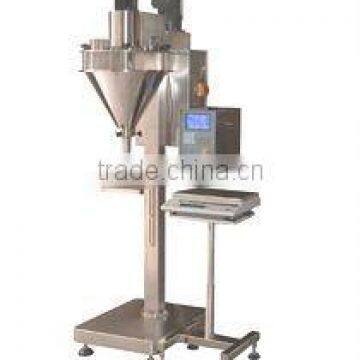

Semiautomatic powder filling machine DHS-1A-21
- Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Minhua | |
| Model Number | DHS-1A-21 | Usage | Powder |
Product Description
Specifications
This type can do measuring and filling work. Due to the special design, so it fits more to the fluidic or low-fluidity materialsDescriptions:
This type can do measuring and filling work. Due to the special design, so it fits more to the fluidic or low-fluidity materials, like milk powder, Albumen powder ,solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.
Features:
l There is no limit of packaged container. It is widely used invariable materials and package-weight specifications.
l The surface of whole machine is made by stainless steel material except of motor. Knockdown transparent hopper, which could be washed without toolings.
l Weight feedback to run after the specific weight; overcome the shortcoming of the net weight change with the material specific-weight.
l Servo motor driving screw is characteristics of no easy abrasion, high-precision orientation, setup rotate speed, stable performance.
l LCD simply visual supervisory. Stepless adjust the net weight. Change the working parameter at any time, easy to control. Change the working parameter at any time, easy to control.
l Save the parameter of each product to later use. 10 recipes of magistral formula save at the most.
l Fit for lots of material range from fine-powder to coarse-granule, if change the auger attachment. Dust- collector set on dust material situation to absorb dust spout out.
Technical Parameters:
Metering Mode | Auger rotation filling traced by weighing feedback |
Filling Weight | 1 — 500g (The screw attachment is to be changed) |
Filling Accuracy | Package weight ≤ 100g,with an error<2% |
| 100 — 500g, with an error≤±1% |
Filling Rate | 40 - 120 times/min |
Power Supply | 3P / 220V-415V 50-60Hz |
Total Power | 1.1KW |
Total Weight | 130Kg |
Overall Dimensions | 800×790×1800mm |
Hopper Volume | 22L (35L for oversized hopper) |
