Home > Products > powder filling machine > Screw feeder GHS-1S2

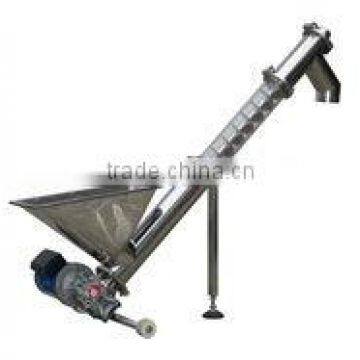

Screw feeder GHS-1S2
- Shanghai
- Credit Card
You May Like
Product Details
| Condition | New | Packaging Material | Plastic | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Place of Origin | Shanghai, China | Brand Name | Minhua | |
| Model Number | GHS-1S2 |
Product Description
Specifications
It can convey sorts of material. Combined with the package-machine of our company, it can do material situation tracing.Descriptions:
This Machine can convey sorts of material. Combined with the package-machine of our company, it can do material situation tracing. It also can be used separately. Complete machine made in stainless steel, except for the electrical machine, gearing, and the framework.
Features:
l The machine is composed of double motor, feeding motor, vibrating motor and each switch control.
l Characteristic dustproof, bearing won’t be polluted by the dust and powder.
l To cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversally, storing materials at the bottom of hopper pipe, and taking out the whole screw.
Technical Parameters:
Model | GHS-1S2 | GHS-1S3 | GHS-1S5 | GHS-1S7 |
Charging Capacity | 2 cbm/hr. | 3 cbm/hr. | 5 cbm/hr. | 7 cbm/hr. |
Powder Supply | 550W | 930W | 1.5KW | 2.2KW |
Diameter of pipe | φ102mm | φ114mm | φ141mm | φ159mm |
Power Supply | 3P 208-415V 50/60Hz | |||
Charging angle | General 45 degree,special inquirement 30degree,60degree | |||
Charging Height | General1800mm,Different feeding height could be designed | |||
Total Weight | 70kg | 80kg | 130kg | 180kg |
Remark | Other charging capacity could be designed | |||
